Chapter 3. Product information 99

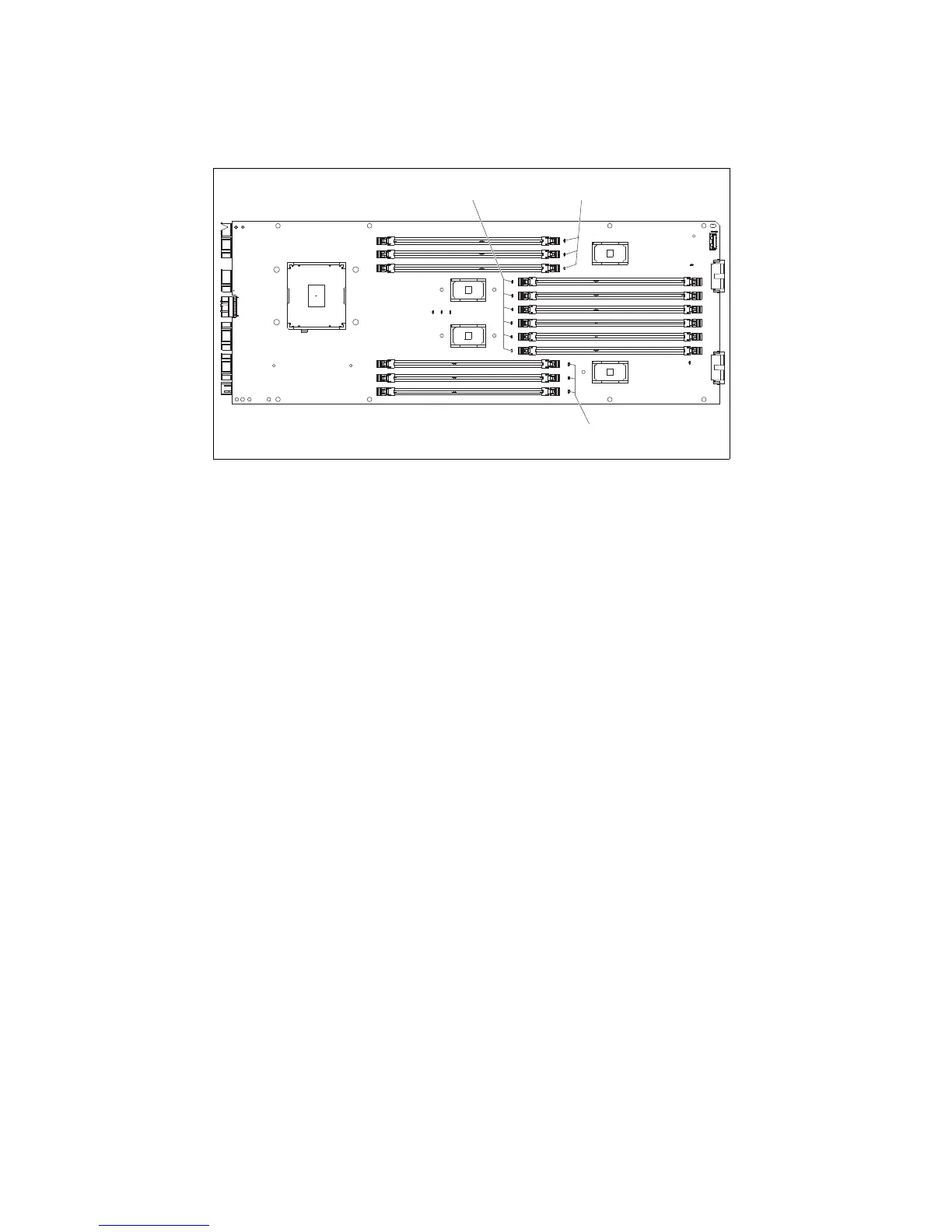

Figure 3-35 shows the location of the DIMMs connectors LEDs on the one side of the
Compute Book.
Figure 3-35 DIMMs connectors location
In addition to the light path diagnostic LEDs, you can use the LCD system information display
located on the front operator panel, which displays errors from the IMM event log.
For more information about the LCD system information display and the front operator panel,
see 3.5.2, “LCD system information panel” on page 60.
For additional information about Light path diagnostics, see the IBM System x3850 X6
Installation and Service Guide at the following website:
http://publib.boulder.ibm.com/infocenter/systemx/documentation/index.jsp?topic=/co
m.ibm.sysx.3837.doc/product_page.html
(Left side of board)
DIMM 1 - 3
error LEDs
DIMM 7 - 12
error LEDs
DIMM 4 - 6
error LEDs

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
