78 IBM System x3850 X6 and x3950 X6 Planning and Implementation Guide
3.10.3 RAID controllers
The Storage Book contains two PCIe 3.0 x8 slots for RAID controllers or SAS HBAs for use
with the internal drives. If two eXFlash SSD units (16x 1.8-inch SSDs) are used, then two
controllers are required.

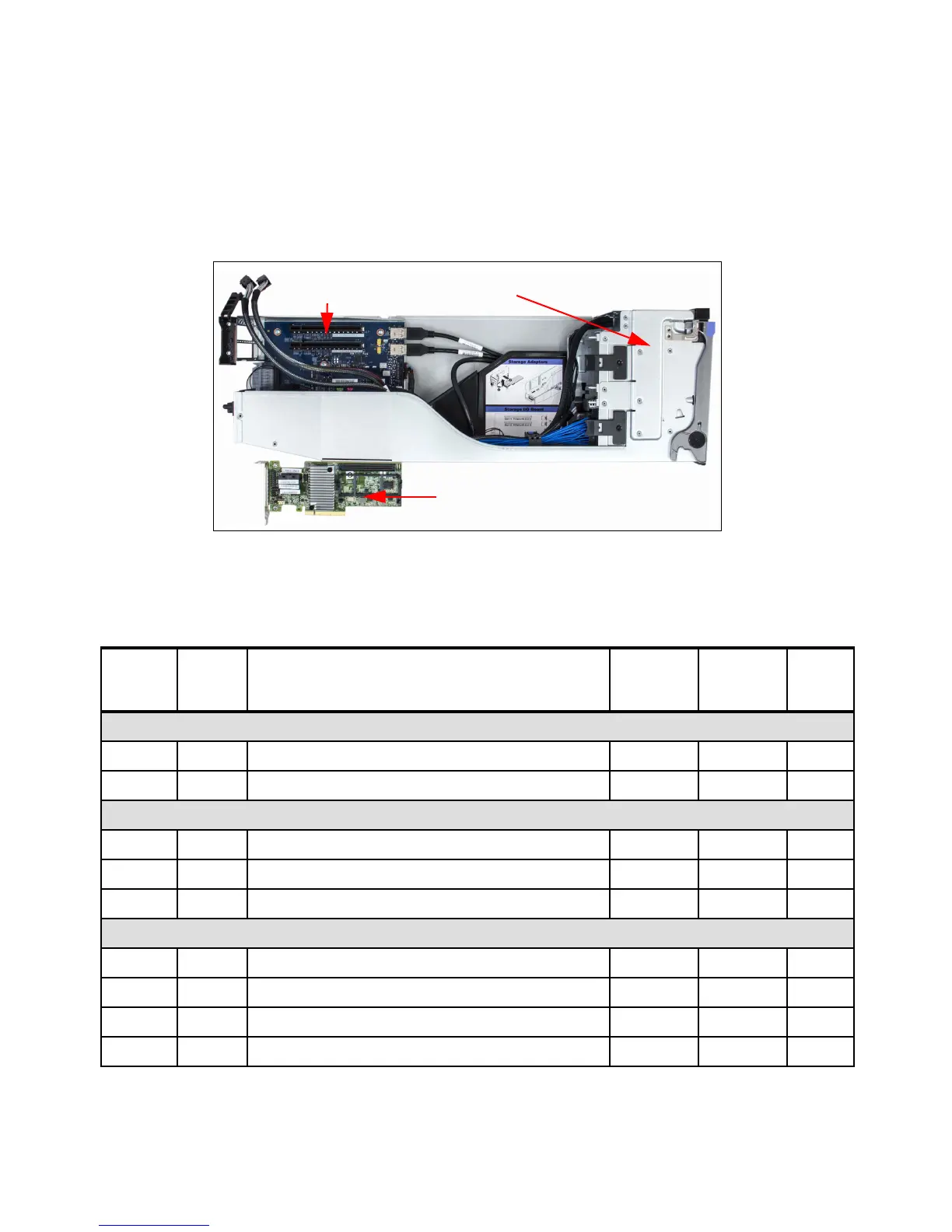

Figure 3-21 shows the Storage Book’s internal components and one of the RAID adapters.
Figure 3-21 Storage Book side view
Table 3-11 lists the RAID controllers, HBAs, and additional hardware and feature upgrades
used for internal disk storage. The adapters are installed in slots in the Storage Book.
Table 3-11 RAID controllers and HBAs for internal storage
Two PCIe 3.0 x8 slots
for RAID adapters
ServeRAID adapter
Drive bays
Part
number
Feature
code
Description Maximum
supported
x3850 X6
Maximum
supported
x3950 X6
Models
where
used
Controllers
46C9110 A3YZ ServeRAID M5210 SAS/SATA Controller 2 4 All
47C8675 A3YY N2215 SAS/SATA HBA 2 4 -
Hardware upgrades for the M5210
47C8656 A3Z0 ServeRAID M5200 Series 1GB Cache/RAID 5 Upgrade 2 4 -
47C8660 A3Z1 ServeRAID M5200 Series 1GB Flash/RAID 5 Upgrade 2 4 -
47C8664 A3Z2 ServeRAID M5200 Series 2GB Flash/RAID 5 Upgrade 2 4 -
Feature on Demand upgrades for the M5210
47C8708 A3Z6 ServeRAID M5200 Series Zero Cache/RAID 5 Upgrade 1 2 -
47C8706 A3Z5 ServeRAID M5200 Series RAID 6 Upgrade 1 2
a
a. Requires cache memory upgrade (47C8656, 47C8660, or 47C8664)
-
47C8710 A3Z7 ServeRAID M5200 Series Performance Accelerator 1 2
a
-
47C8712 A3Z8 ServeRAID M5200 Series SSD Caching Enabler 1 2
a
-

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
