Chapter 4. Infrastructure planning 121

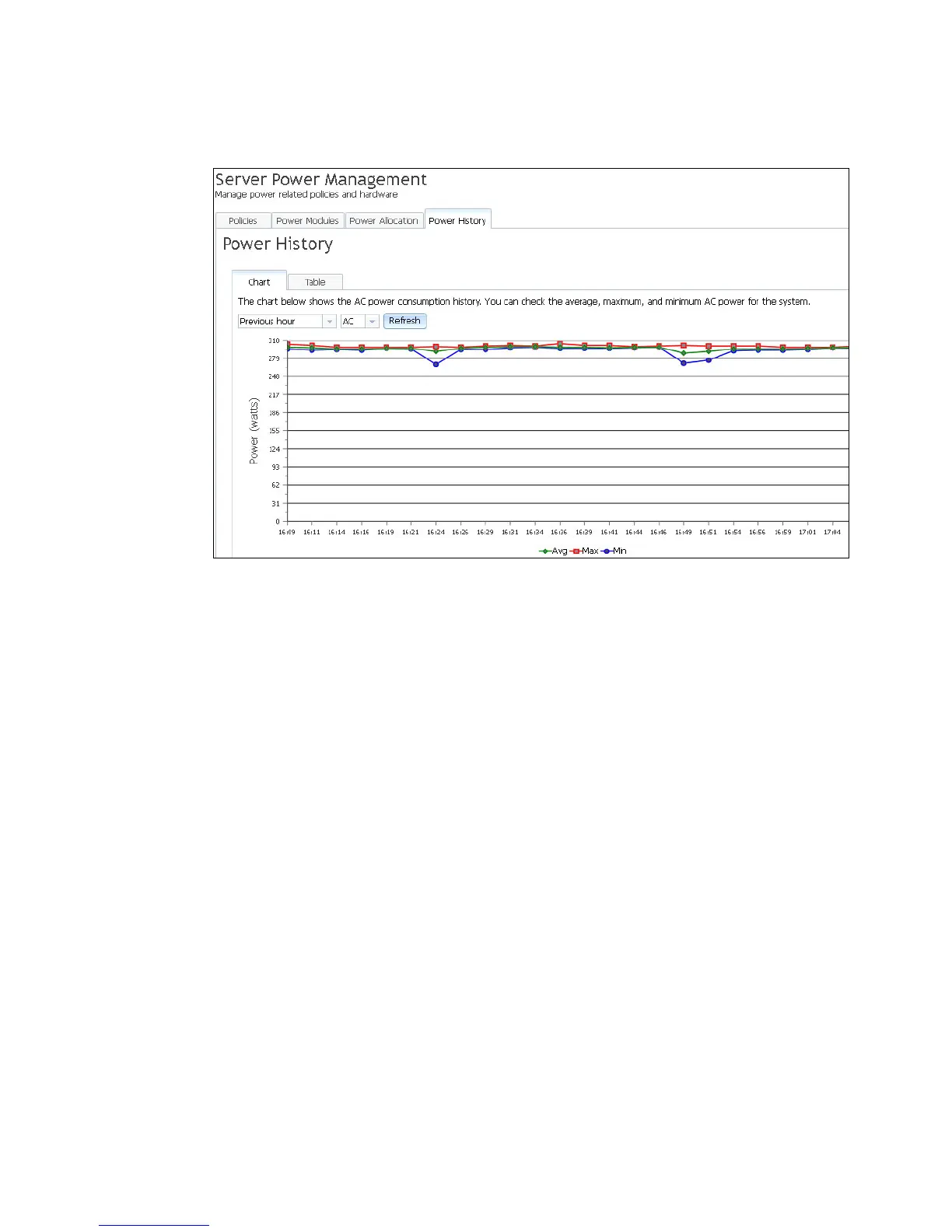

The Power History tab will also give you a representation of your server’s power
consumption over a selected period of time as seen in Figure 4-8.
Figure 4-8 History of power consumption
4.5.7 Examples of power connections
The IBM System x3850 X6 and x3950 X6 Power Requirements Guide contains numerous
examples of the connections from single-phase and three-phase PDUs. Download the guide
from this website:
http://ibm.com/support/techdocs/atsmastr.nsf/WebIndex/PRS4401
