Chapter 5. Preparing the hardware 135
5.1.4 IMM2 dedicated versus shared ML2 Ethernet port
When configured as Dedicated, you are connecting to the network via the system
management port. As shown in Figure 5-3, the system management port is located from the
rear of the server to the right side of the USB ports.

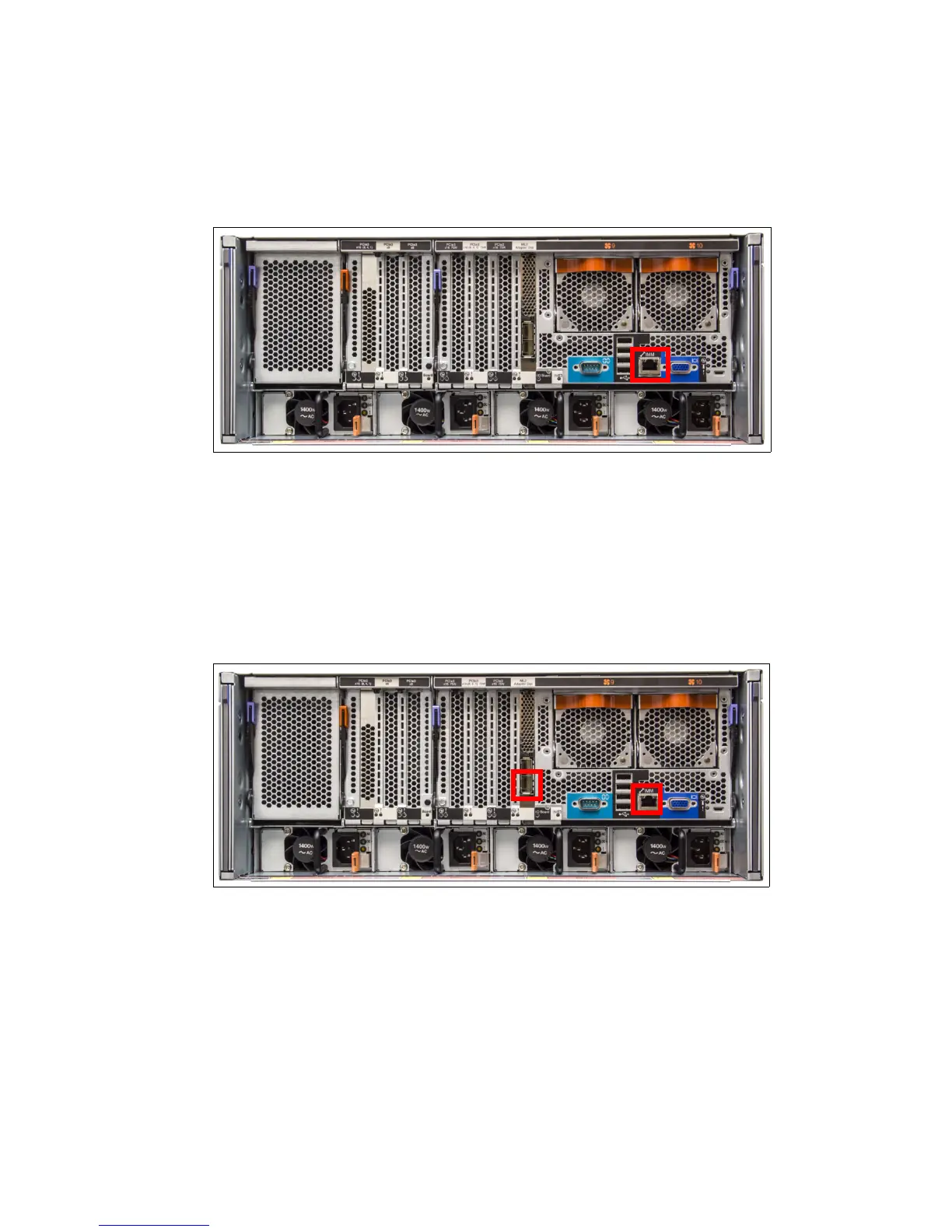

Figure 5-3 Dedicated Gigabit IMM2 system management port
Using this port allows for easier separation of public and management network traffic.
Separating the traffic is done when you connect your public network port to switch ports that
belong to a public access virtual LAN (VLAN), and the management port is connected to a
switch port defined by a separate management VLAN.
When configured as
Shared, you are sharing network traffic on a ML2 Ethernet adapter,
which is the adapter slot closest to the rear fans, as shown in Figure 5-4. The default port
used on the ML2 adapter is port 1.
Figure 5-4 Location of the ML2 adapter slot that can share IMM2 access
While this configuration eliminates a physical switch port and patch cable configuration, both
the media access control (MAC) address for the shared Ethernet port and the MAC address
for the IMM2 will address through this single network port. This situation means at least two
separate IP addresses for the same physical port, which prevents you from configuring the
ML2 adapter’s Ethernet port in a network team using 802.3ad load balancing if the particular
ML2 adapter that you are using supports this function.

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
