60 IBM System x3850 X6 and x3950 X6 Planning and Implementation Guide
򐂰 USB 2.0 port: Connect a USB device, such as a USB mouse, keyboard, or other device,
to this connector.
򐂰 USB 3.0 ports: Connect a USB device, such as a USB mouse, keyboard, or other device,
to any of these connectors.
򐂰 Video connector: Connect a monitor to this connector. The video connectors on the front
and rear of the server can be used simultaneously.
3.5.2 LCD system information panel
The LCD system information panel displays various types of information about the server. It is
located on the Storage Book on the front of the server (see Figure 3-6 on page 59). The
information panel lets you have quick access to system status, firmware, network, and health
information.
Figure 3-7 shows the LCD system information panel.

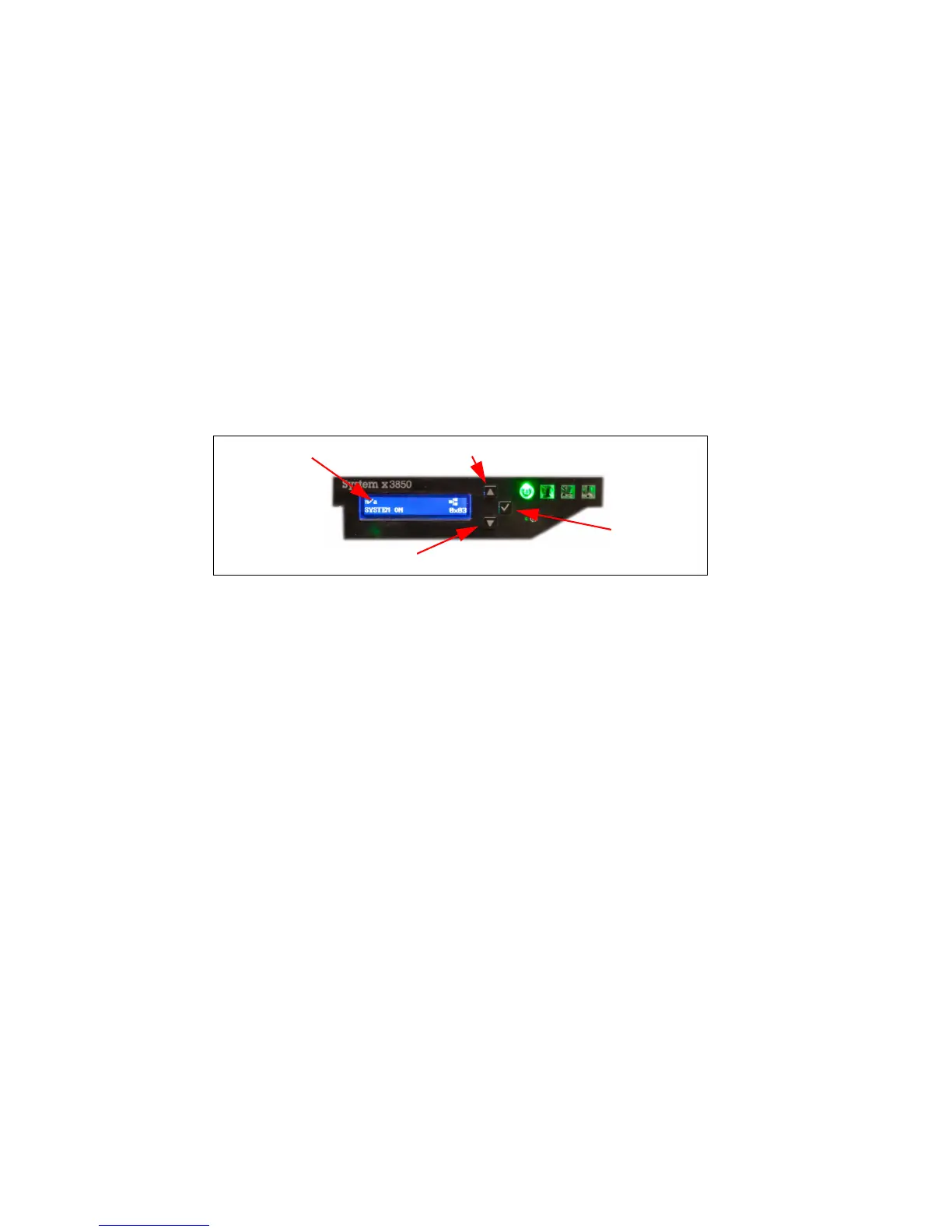

Figure 3-7 The LCD system information panel
The LCD system information display panel contains the following buttons:
򐂰 Scroll up button: Press this button to scroll up or scroll to the left in the main menu to
locate and select the system information that you want displayed.
򐂰 Select button: Press this button to make your selection from the menu options.
򐂰 Scroll down button: Press this button to scroll down or scroll to the right in the main
menu to location and select the system information that you want displayed.
LCD information panel
Scroll up button
Scroll down button
Select button

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
