152 IBM System x3850 X6 and x3950 X6 Planning and Implementation Guide
򐂰 Hardware Components:
Displays the battery status and the status of temperature sensors, fans, and power
supplies. You can also view additional properties and perform additional operations using
the Advanced link. Some options will only appear if the controller supports them.
The UEFI supports configuration of your RAID array with a supported controller. The following
example will help guide you through the creation of a RAID-1 array configured in the UEFI:
1. Enter into UEFI setup by selecting F1 when prompted at boot time. Access the LSI
Configuration Utility from the menu by selecting System Settings  Storage  LSI
MegaRAID <ServeRAID M5210> Configuration Utility as seen in Figure 5-20.

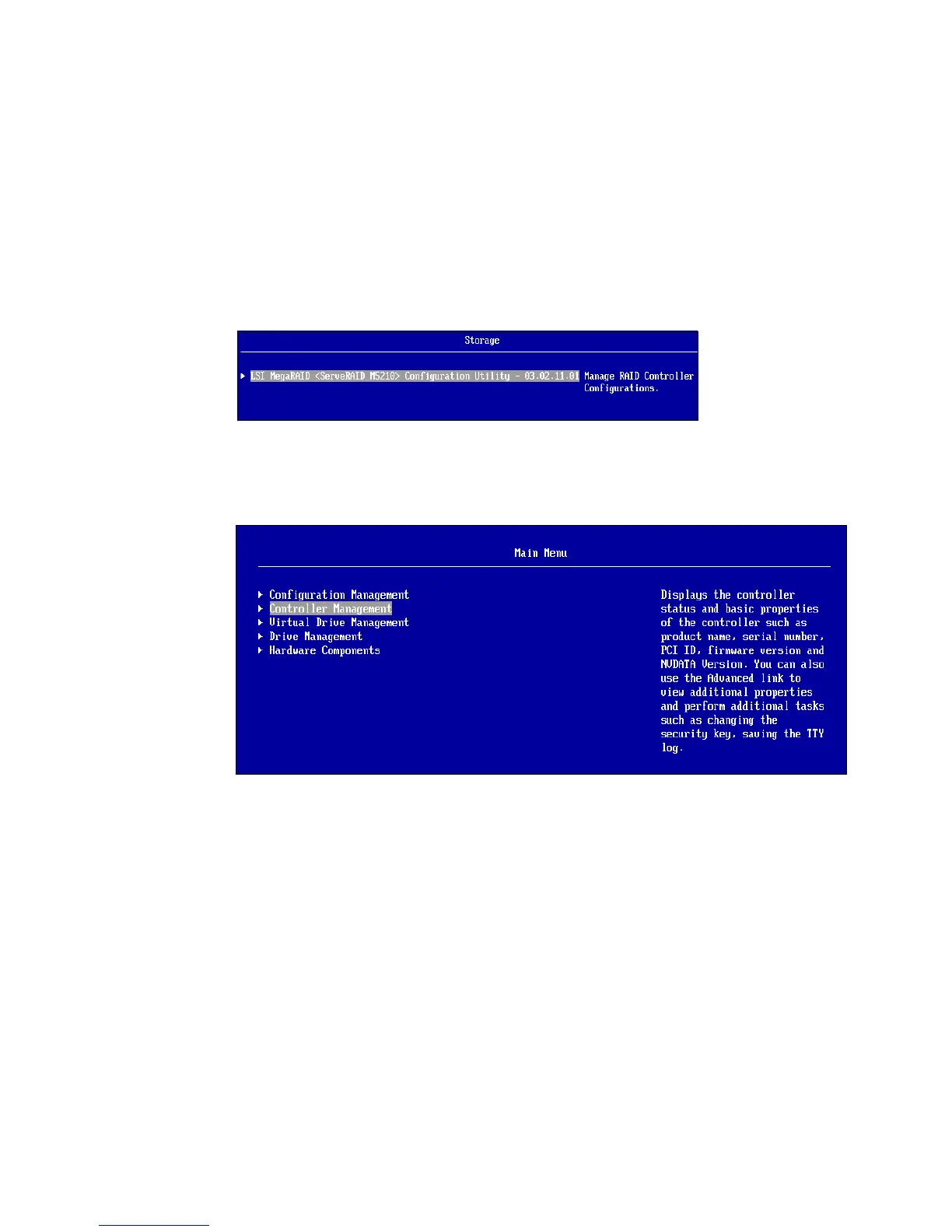

Figure 5-20 LSI MegaRAID Utility panel for ServeRAID M5210
2. Figure 5-21 is the Main Menu for the Configuration Utility. Enter into the Configuration
Manager by selecting Configuration Management
Figure 5-21 LSI MegaRAID Configuration Utility, Main Menu panel

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
