Chapter 5. Preparing the hardware 171
UpdateXpress System Pack Installer (UXSPI)
The IBM UpdateXpress is a tool that allows the IBM System x firmware and drivers to be
updated via the OS.
The UpdateXpress System Pack Installer (UXSPI) gives you the ability to update the firmware
and device drivers of the system under an operating system. You can deploy UpdateXpress
System Packs (UXSPs) and the latest individual updates.
UXSPI uses the standard HTTP (port 80) and HTTPS (port 443) to get the updates from IBM.
Your firewall must allow these ports. UXSPI is supported on Windows, Linux, and VMware
operating systems. UXSPI is supported on both 32-bit and 64-bit operating systems.
The IBM UpdateXpress System Pack Installer User’s Guide provides a detailed list of
supported operating systems at the following website:
http://ibm.com/support/entry/portal/docdisplay?lndocid=SERV-XPRESS
Perform these steps to use UXSPI:
1. Start the UXSPI setup utility that you downloaded from the website.
2. Accept the license agreement.

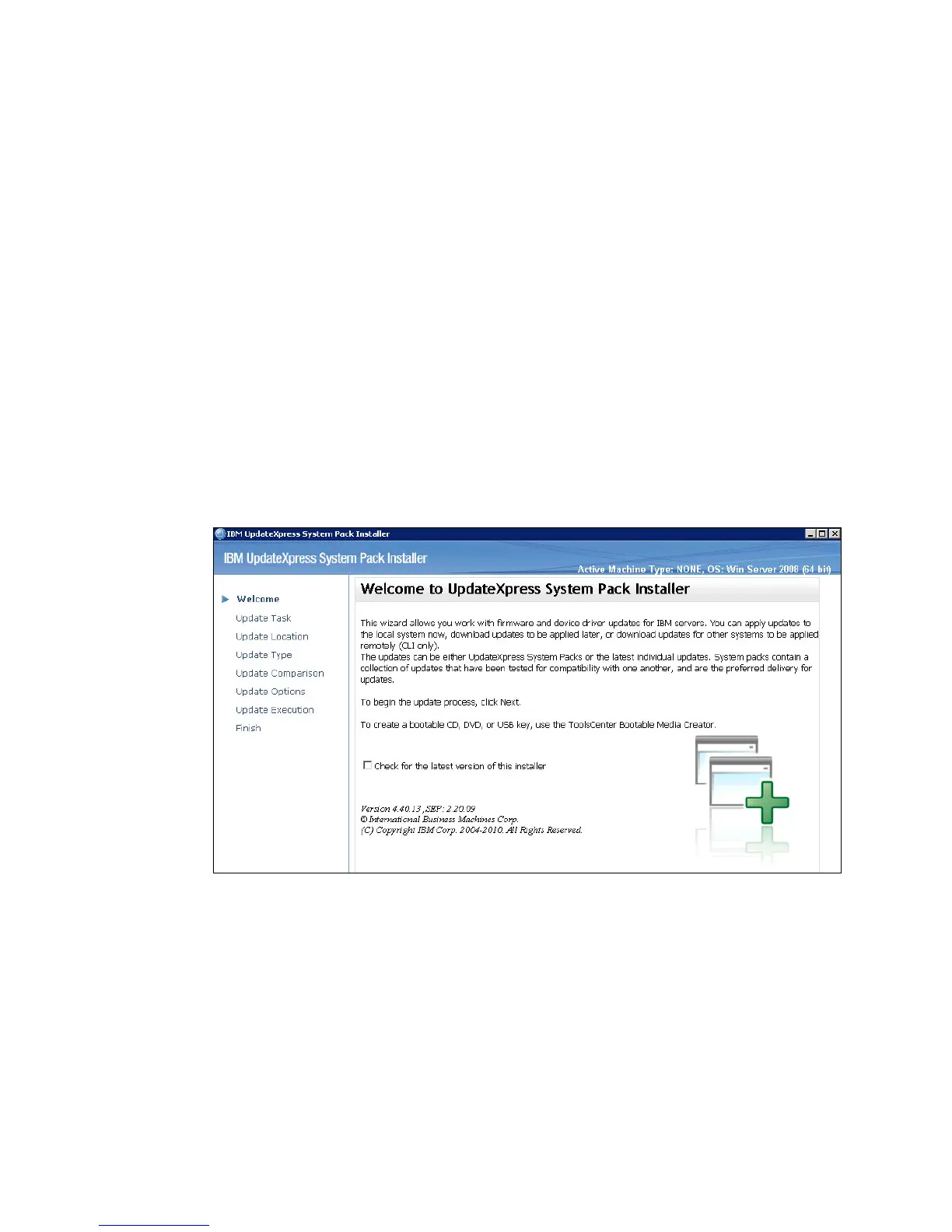

3. The Welcome window opens, as shown in Figure 5-52. Click Next.
Figure 5-52 Welcome window

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
