Chapter 7. Management 209
5. Enter the IP address of the IMM2 in the space that is provided under the IP address as
seen in Figure 7-8.

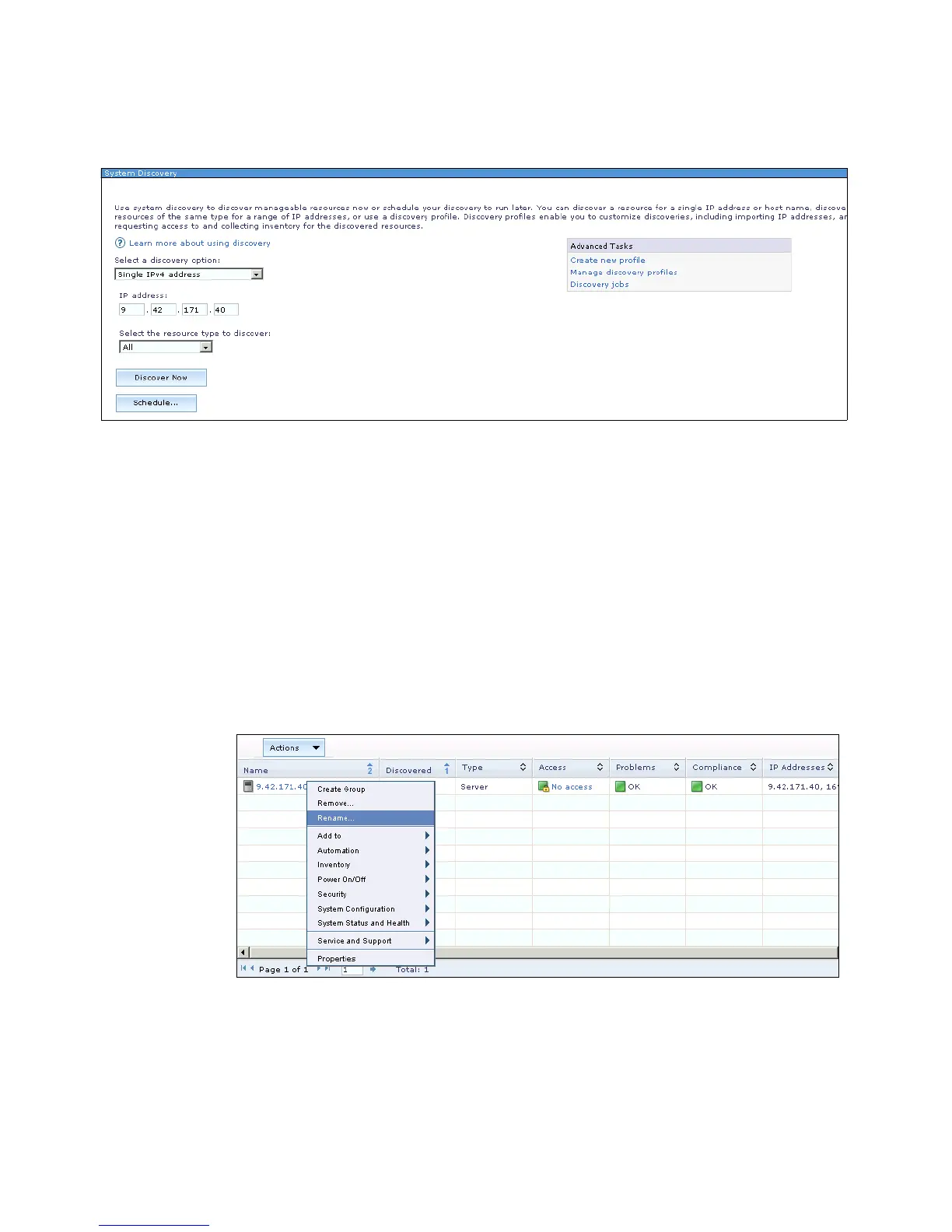

Figure 7-8 IBM Systems Director discovery pane
6. An IMM2 is considered a server object in IBM Systems Director. To specify the IMM2 as a
Server object, click the Select the resource type to discover list box and select Server.
7. Click Discover Now when you are ready to discover the IMM2.
8. The discovered IMM2 appears at the bottom of the System Discovery pane under
Discovered Manageable Systems. At this point, the IMM2 has been discovered but has
not been authenticated to. Notice the No Access status under the Access column. Before
authenticating to the IMM2, we advise that you rename it first. The renaming process can
be performed at a later stage as well, but we advise that you perform this process at
discovery time, because it is easier to identify individually discovered IMM2s for renaming
than when they are in a group.
9. To rename the IMM2, right-click the IMM2 server object in the Discovered Manageable
Systems area and click Rename, as shown in Figure 7-9.
Figure 7-9 IBM Systems Director Discovery menu

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
