Chapter 3. Product information 53
The x3850 X6 and x3950 X6 servers are shipped with the following items:
򐂰 Rail kit
򐂰 Cable management bracket kit (2 brackets for x3850 X6, 4 brackets for the x3950 X6)
򐂰 2.8 m (9.18 in) C13-C14 power cord (one for each power supply)
򐂰 Statement of Limited Warranty
򐂰 Important Notices
򐂰 Rack Installation Instructions
򐂰 Documentation CD that contains the Installation and User's Guide

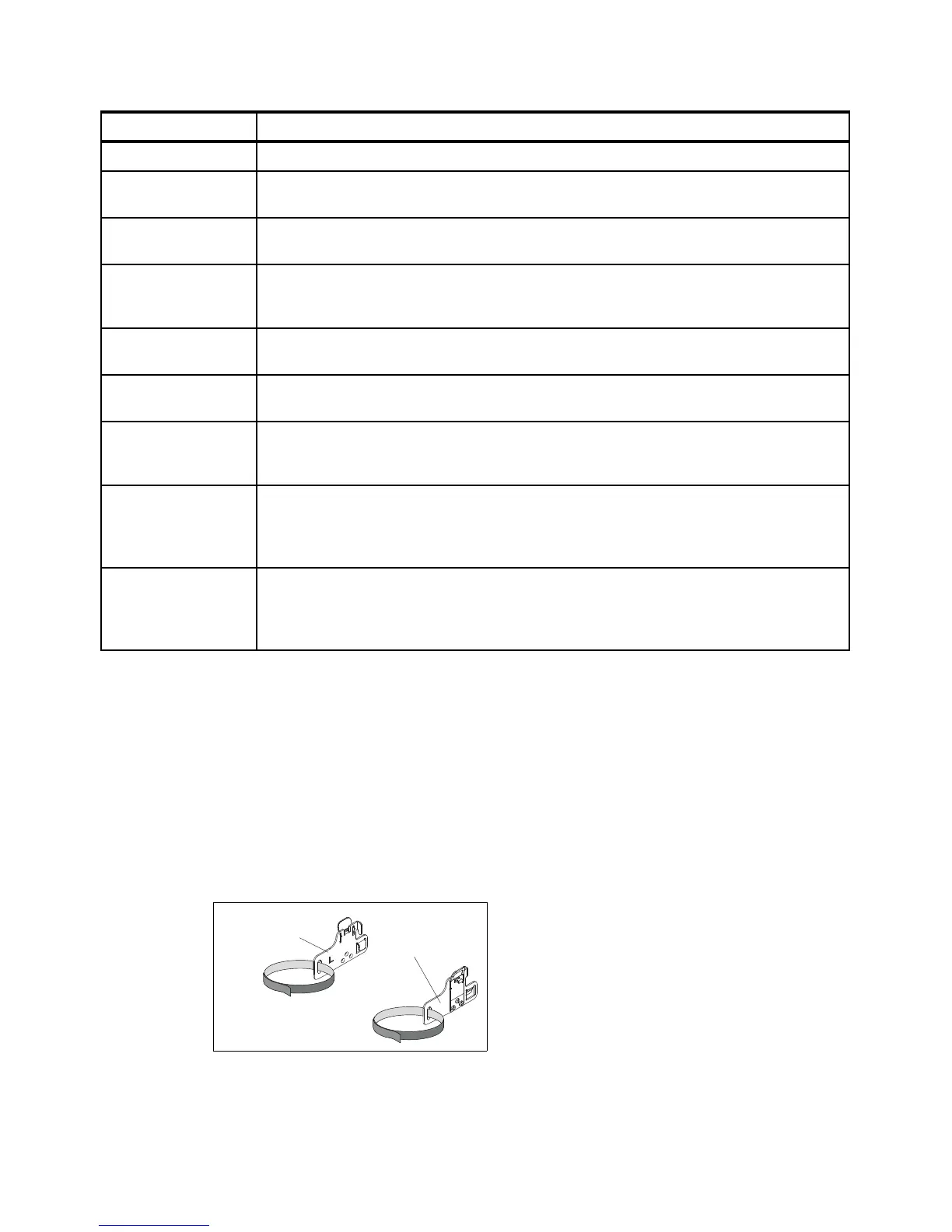

Figure 3-1 shows the components of the cable management bracket kit that ship with the
x3850 X6. A second set (ie two left and two right) are also shipped with the x3950 X6.
Figure 3-1 Cable management bracket kit
Hot-swap parts Drives, power supplies, fans, optional I/O Books.
Video Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is
1600x1200 at 75 Hz with 16 M colors.
Security features x3850 X6: Power-on password, admin password, two Trusted Platform Modules (TPMs).
x3950 X6: Power-on password, admin password, four Trusted Platform Modules (TPMs).
Systems
management
UEFI, IBM Integrated Management Module II (IMM2) with remote presence feature, Predictive
Failure Analysis, Light Path Diagnostics, Automatic Server Restart, IBM Systems Director and
Active Energy Manager, IBM ServerGuide.
Operating systems
supported
Microsoft Windows Server 2012 R2, 2012, and 2008 R2, Red Hat Enterprise Linux 6, SUSE
Linux Enterprise Server 11, VMware vSphere ESXi 5.1 and 5.5.
Limited warranty Three-year customer-replaceable unit (CRU) and on-site limited warranty with 9x5 next
business day (NBD).
Service and support Optional service upgrades are available through IBM ServicePacs: 4-hour or 2-hour response
time, 8-hour fix time, 1-year or 2-year warranty extension, remote technical support for IBM
hardware and some IBM / OEM applications.
Dimensions x3850 X6: Height: 173 mm (6.8 in)
x3950 X6: Height: 351 mm (13.7 in)
Both: Width: 482 mm (19.0 in), depth: 804 mm (31.6 in), depth with cable management
brackets installed: 836 mm ( 32.9”), depth with Full-length I/O Book installed:921 mm (36.2 in).
Weight x3850 X6: Minimum configuration: 35.9 kg (79.2 lb), typical: 46.4 kg (102.3 lb), maximum: 54.7
kg (120 lb).
x3950 X6: Minimum configuration: 84.5 kg (186.3 lb), typical: 88.2 kg (194.5 lb), maximum:
110.0 kg (242.6 lb).
Components Specification
Left cable
management
bracket
Right cable
management
bracket

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
