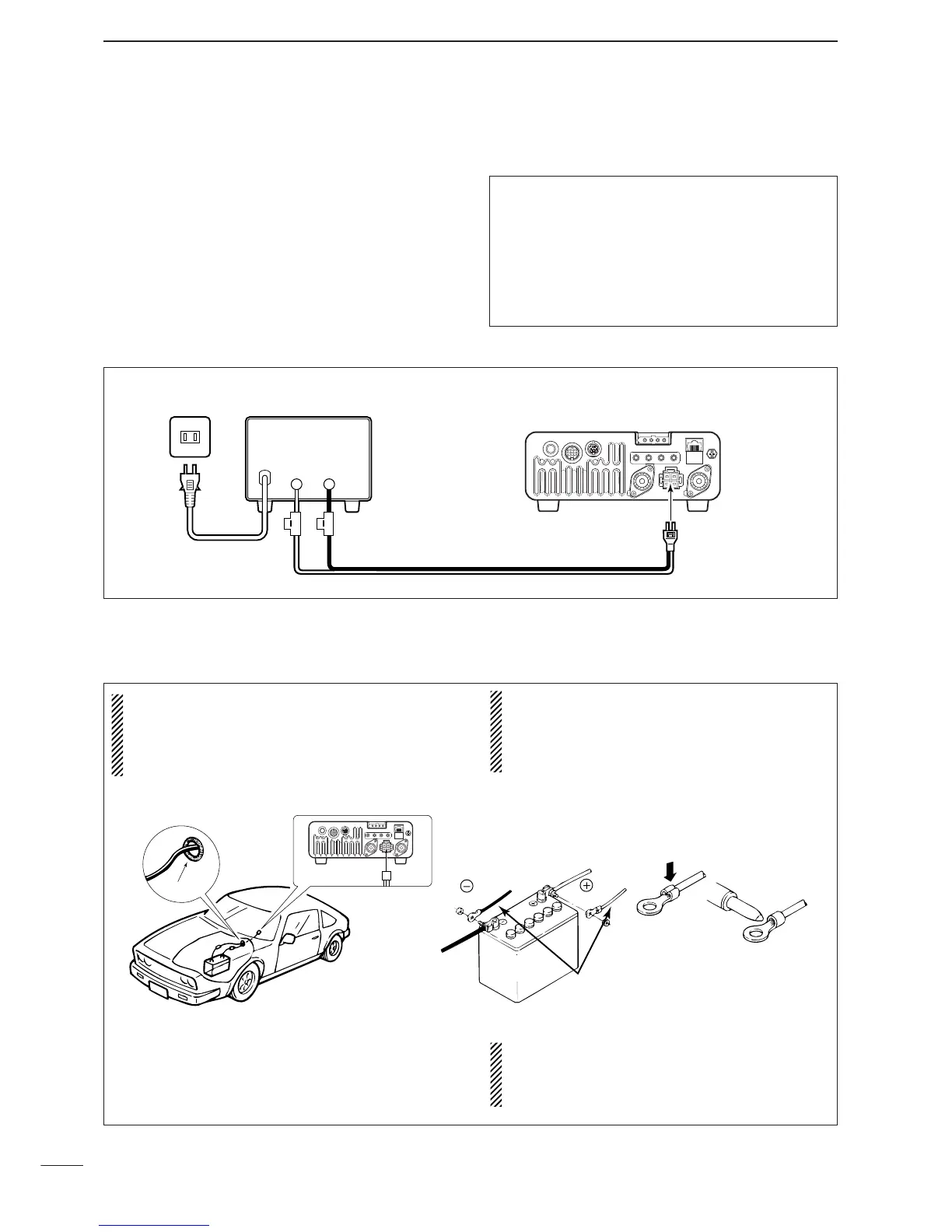

INSTALLATION AND CONNECTIONS
■ Power supply connections
Use the DC power supply with a 25 A capacity when
operating the transceiver with AC power. Refer to the
diagrams below.
CAUTION: Before connecting the DC power
cable, check the following important items. Make
sure:
•The [POWER] switch is OFF.
•Output voltage of the power source is 12–15 V.
• DC power cable polarity is correct.
Red : positive + terminal
Black : negative _ terminal
A DC power supplyAC outlet
AC cable
30 A fuses
Supplied
DC power cable
13.8 V; at least 25 A
Black
_
Red
+
Transceiver
DC power
socket
■ Battery connections
•RWARNING NEVER connect to a battery
without supplying a DC fuse, otherwise a fire
hazard occurs.
•NEVER connect the transceiver directly to a 24 V
battery.
•DO NOT use the cigarette lighter socket for power
connections. (See p. 11 for details)
•Attach a rubber grommet when passing the DC
power cable through a metal plate to prevent a
short circuit.
IMPORTANT!
Detailed installation notes for Icom mobile trans-
ceivers to be fitted into vehicles are available. Con-
tact your Icom dealer or distributor.
Grommet
CONNECTING A VEHICLE BATTERY
Note:
Use terminals for
the cable connections.
Crimp
Solder
Supplied
DC power cable
red
black
12 V
battery
■ Connecting a DC power supply
