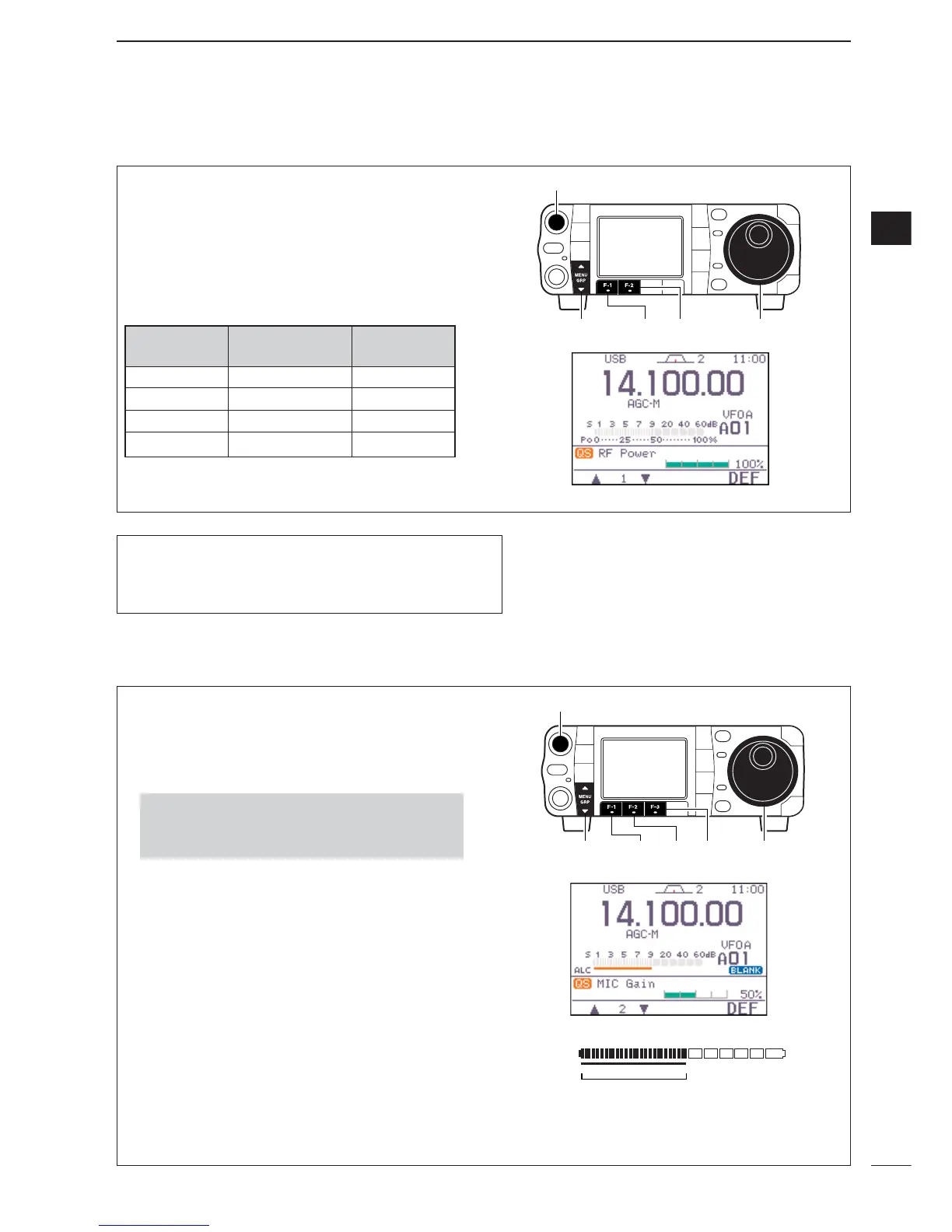

BASIC OPERATION
3
q Push [AF(
SET
)] momentarily to enter the set mode
menu.
w Push [F-1
QS
] to enter the quick set mode.
e Push [F-1 Y] or [F-2 Z] to select “
RF Power
.”
r Rotate [DIAL] to set the desired output setting.
•Output power is displayed in 1% steps (0% to 100%).
t Push [
Z
(
MENU
/
GRP
)] to exit quick set mode.
• Available power
*Carrier power
[MENU/GRP] [F-2][F-1] [DIAL]
[AF]
D Setting output power
Microphone gain must be adjusted properly so that
your signal does not distort when transmitted.
q Select SSB or another phone mode (AM or FM
mode).
w Select
S
-
1
.
e Push [F-3
MET
] one or more times to select the
ALC meter.
•“ALC” appears.
r Push [AF(
SET
)] momentarily to enter the set mode
menu.
t Push [F-1
QS
] to enter the quick set mode.
y Push [F-1 Y] or [F-2 Z] to select “
MIC Gain
.”
u Push [PTT] (microphone) to transmit.
•Speak into the microphone at your normal voice level.
i While speaking into the microphone, rotate [DIAL]
so that the ALC meter reading does not go outside
the ALC zone.
• Microphone gain is adjusted in 1% steps (0% to 100%).
o Release [PTT] (microphone) to return to receive.
!0 Push [Z(
MENU
/
GRP
)] to exit the quick set mode.
•Push [
Z
(
MENU
/
GRP
)] again to return the normal oper-
ating mode.
[MENU/GRP] [F-3][F-1] [F-2] [DIAL]
[AF]
•Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group
S
.
•Push [MENU/GRP] momentarily one or more times to
select the menu
S
-
1
.
D Setting microphone gain
BAND
SSB/CW
AM*
RTTY/FM
HF 2–100 W 1–40 W
50 MHz 2-100 W 1–40 W
144 MHz 2–50 W 2–20 W
430 MHz 2–35 W 2–14 W
If a linear amplifier is connected such as the IC-PW1/EURO,
set the output power using the ALC meter (see below) to
the
ALC zone (ALC meter reading should be within this zone),
otherwise the linear amplifier will not work properly.
