DATA COMMUNICATION
D When connecting to [DATA] socket
D When connecting to [ACC] socket
[ACC]
Rear panel
4
8
12
123
765
9
1011
13
Rear panel
view
Colors refer to connection
to the supplied ACC cable.
*
1
Connect SQL line when required.
MSEND (orenge)
GND (red)
SQL*
1
(light green)
AF in (pink)
AF out (light blue)
TU or TNC
Personal computer
D When connecting to [MIC] connector
[MIC]
Rear panel
➇ SQL
➂ AF out
➃ PTT
➄ GND
➅ MIC
➆ GND
Rear panel
view
TU or TNC
Personal computer

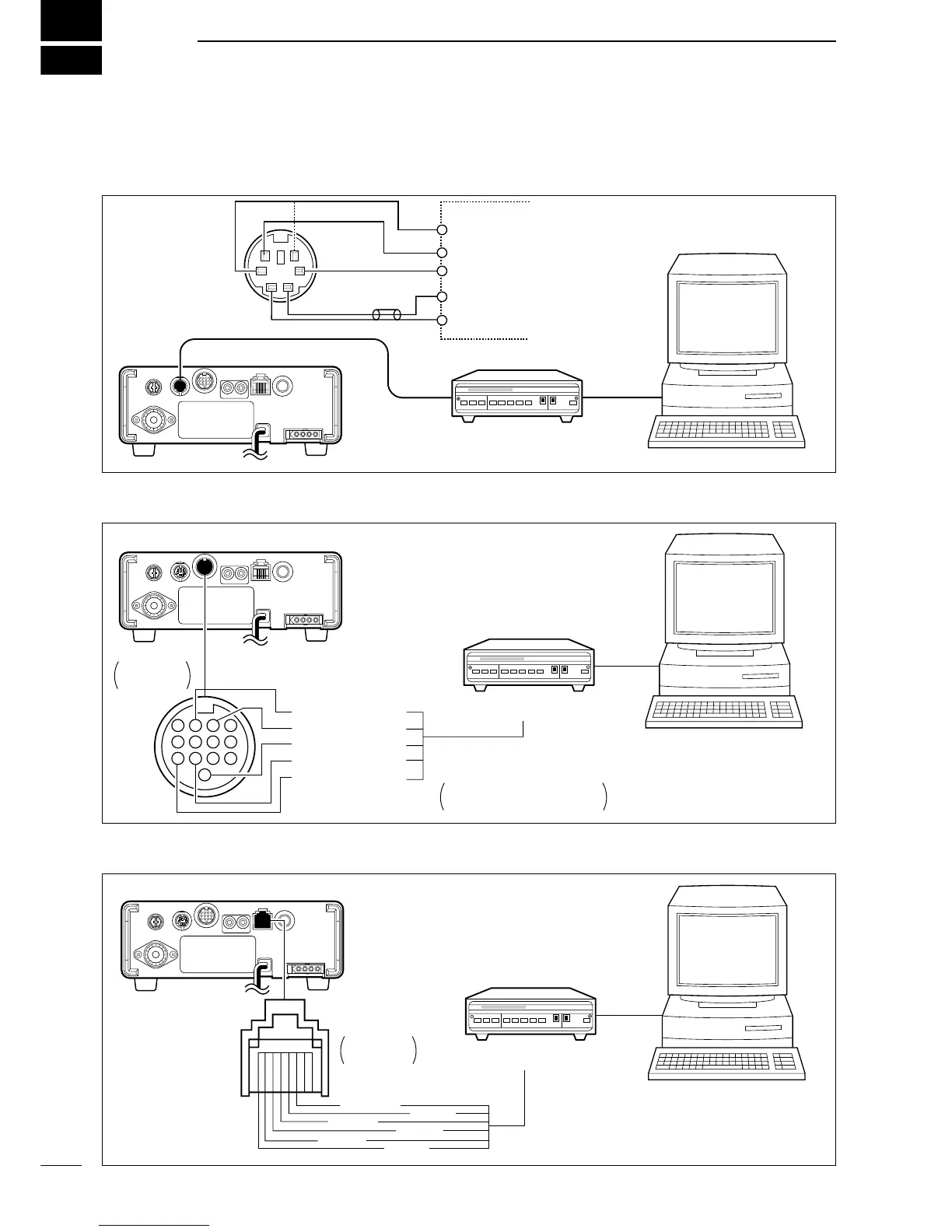

■ Connections for packet
Rear panel
Personal computer
DATA
TNC SIDE
TU or TNC
RS-232C
PTT
PTTP
DATA IN
SQL
RX AUDIO
GND
TX AUDIO
qw
e
yt
r
AF OUT
DATA OUT
GND
SQ
