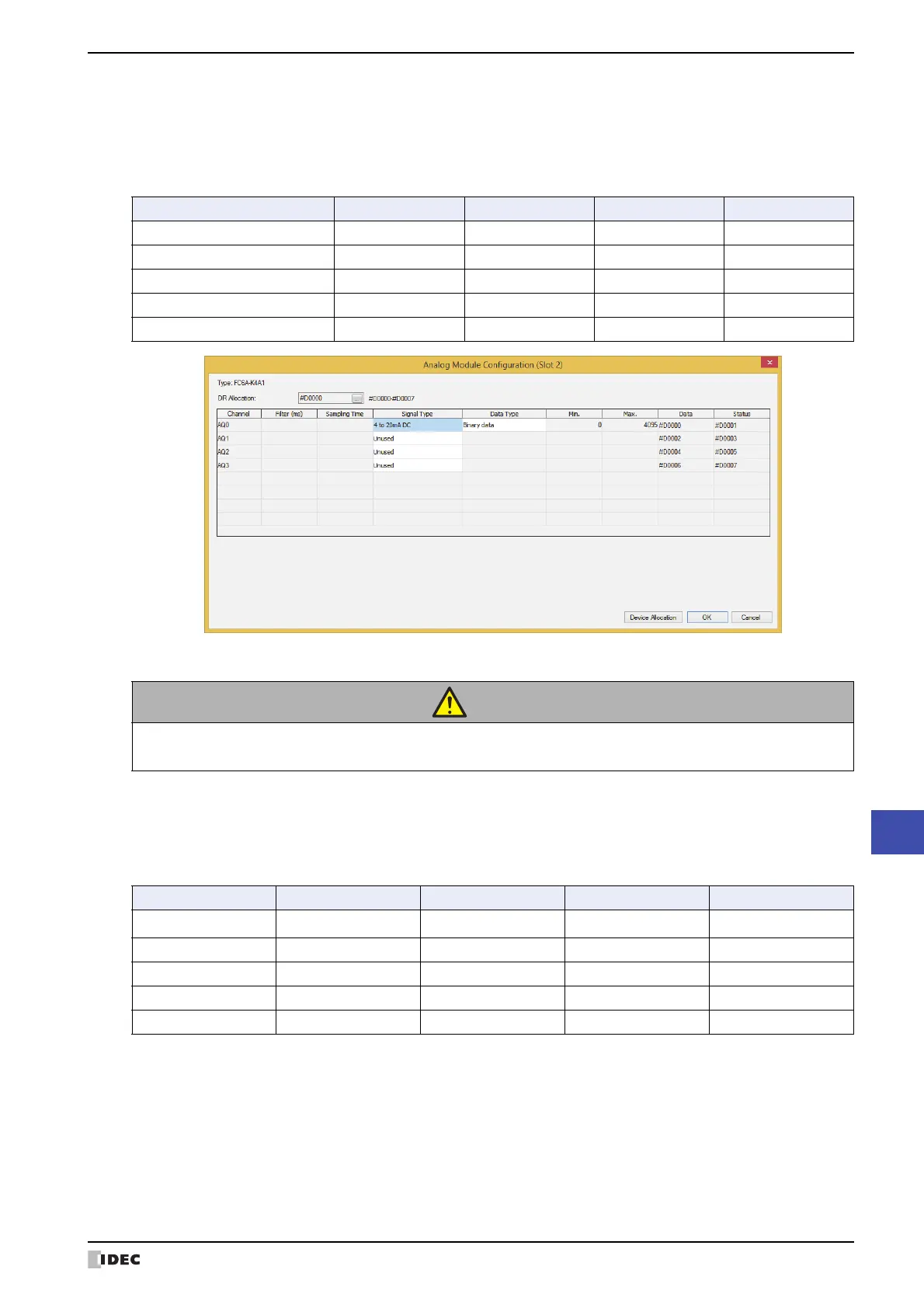

WindO/I-NV4 User’s Manual 30-21
3 Analog I/O Modules
30
Expansion Modules
● Analog Output Type
The following parameters are for configuring the analog outputs on the analog output modules and the mixed analog
I/O modules.
YES: Supported, NO: Not supported
■ Signal Type
The signal type that can be set differs according to the analog I/O module model. Select the analog I/O module that
corresponds to the user application and set the signal type. There are five types of signal types for the analog
outputs, which are detailed as follows.
YES: Supported, NO: Not supported
*1 Channels that are set to unused are not scanned. A channel set to unused always outputs 0 V.
The circuit is setup the same as when signal type is selected 0 to 10 V.
Parameter FC6A-K2A1 FC6A-K4A1 FC6A-L06A1 FC6A-L03CN1
Signal Type YES YES YES YES
Data Type YESYESYESYES
Minimum and Maximum values YES YES YES YES
Data YESYESYESYES
Status YESYESYESYES
CAUTION
The device connected to the analog I/O module may be damaged if the analog output signal type is
mistakenly set and used. Please use caution when setting the analog output signal type.
Signal Type FC6A-K2A1 FC6A-K4A1 FC6A-L06A1 FC6A-L03CN1
Unused
*1
YESYESYESYES
0 to 10 V YES YES YES YES
-10 to +10 V YES YES YES YES
0 to 20 mA YES YES YES YES
4 to 20 mA YES YES YES YES
