WindO/I-NV4 User’s Manual 35-43
3 HG2G-5T, HG1G
35
MICRO/I Specifications
■ HG1G
*1 Operating temperature range will be -20 to +50 ° C if USB interface is used with 151 mA or more.

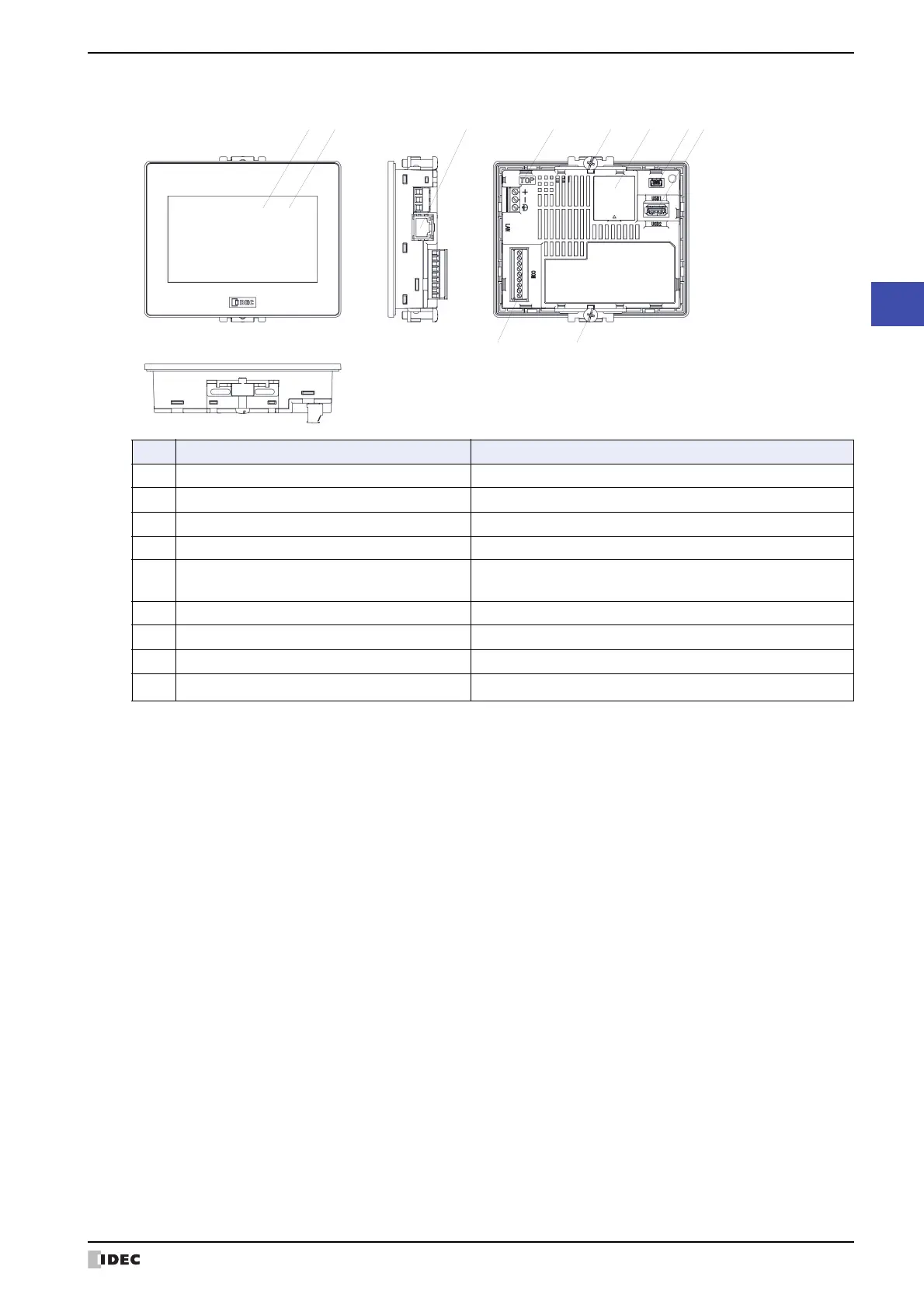

No. Name Description
(1) Display
(2) Touch Panel
(3) Power Supply Terminal
(4) Serial Interface (COM) RS232C, RS422/485 Connector : Terminal Block 9-pin
(5) Ethernet Interface (LAN)
IEEE802.3u 10BASE-T/100BASE-TX Connector : RJ-45
(With Auto MDI/MDI-X function)
(6) Battery Cover
(7) Mounting Clip Position
(8) USB Interface (USB1) USB2.0 (Device) Connector : Mini-B
(9) USB Interface (USB2)
USB2.0 (Host) Connector: Type A Output current : 5V 500mA
*1
(1)
(2) (3) (7) (6) (8)(9)(5)
(4)
(7)
To Next Page
