6 Multi-Button
8-124 WindO/I-NV4 User’s Manual

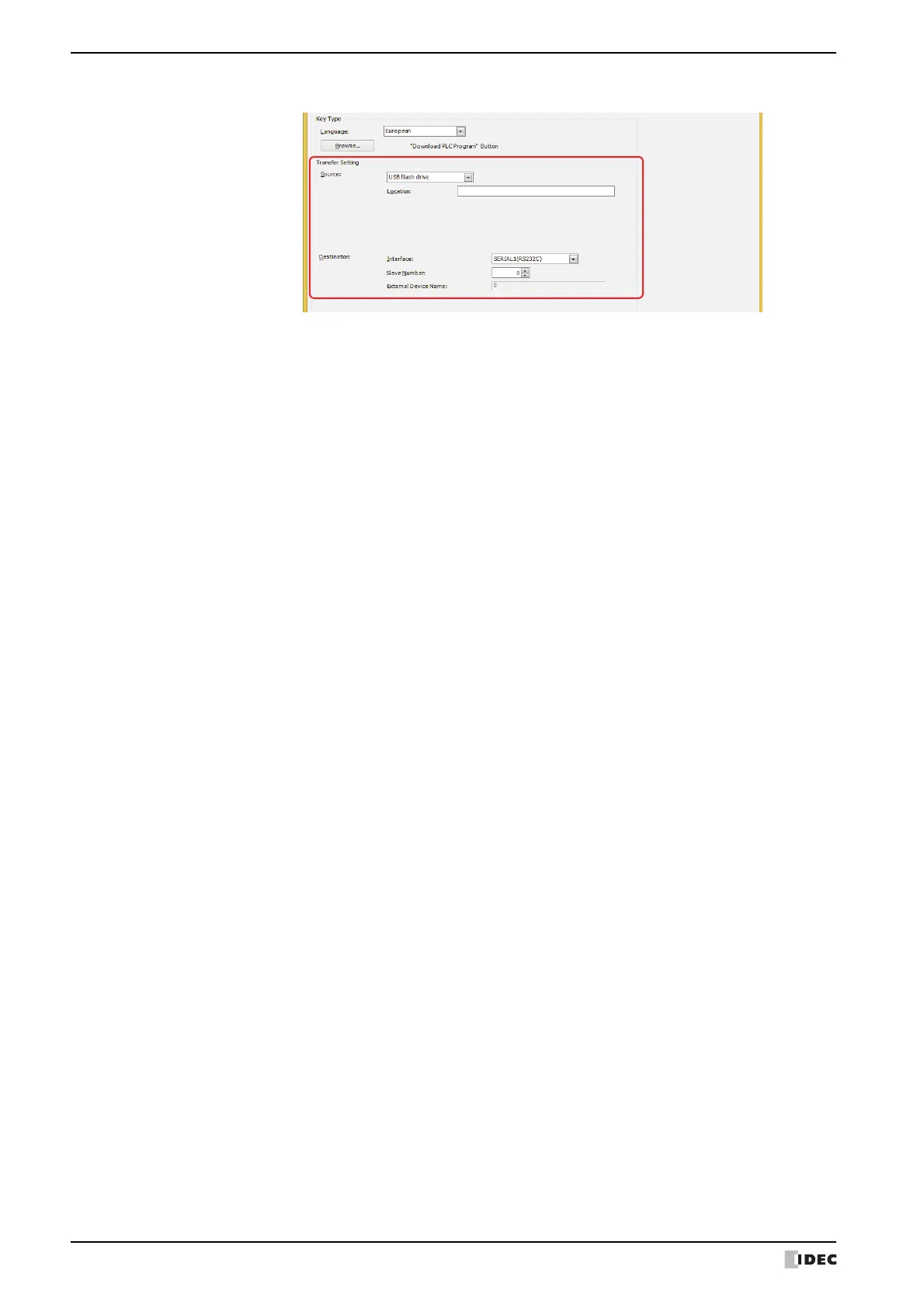

If Download PLC Program is selected.
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F only
Source: Select the the external memory where the PLC program (ZLD Project File) to be transferred is stored: SD
Memory Card
*1
or USB Flash Drive.
Location: Specify the location of the ZLD Project File(.zld). The maximum number is 247 characters.
Example: “LDR_PROGRAM.ZLD” is a ZLD Project File saved in folder “LDRDATA” of an SD
memory card or USB flash drive:
LDRDATA\LDR_PROGRAM.ZLD
Destination: Specify the destination PLC connected to the MICRO/I. The PLC type is configured in the Project
Settings dialog box, on the Communication Driver Network tab. For details, refer to Chapter 4 “3.4
Communication Driver Network Tab” on page 4-50.
Interface: Select the communication interface in which the MICRO/I is connecting to the download
destination PLC from serial interface or Ethernet. For details, refer to Chapter 4 “Interface
Configuration” on page 4-35.
If serial interface is selected for Interface.
Slave Number: Specify the slave number of the download destination PLC (0 to 31).
External Device Name: The name of the specified PLC is displayed here.
If Ethernet is selected for Interface.
Select from the following method:
Specify External Device ID:
Specify the External Device ID (0 to 31) of the destination PLC. This is the
External Device ID number set in the Project Settings dialog box, on
the Communication Driver Network tab.
External Device Name: The name of the specified PLC is displayed here.
Specify IP Address: Specify the IP address and port number of the destination PLC.
