3 Picture Display
10-58 WindO/I-NV4 User’s Manual

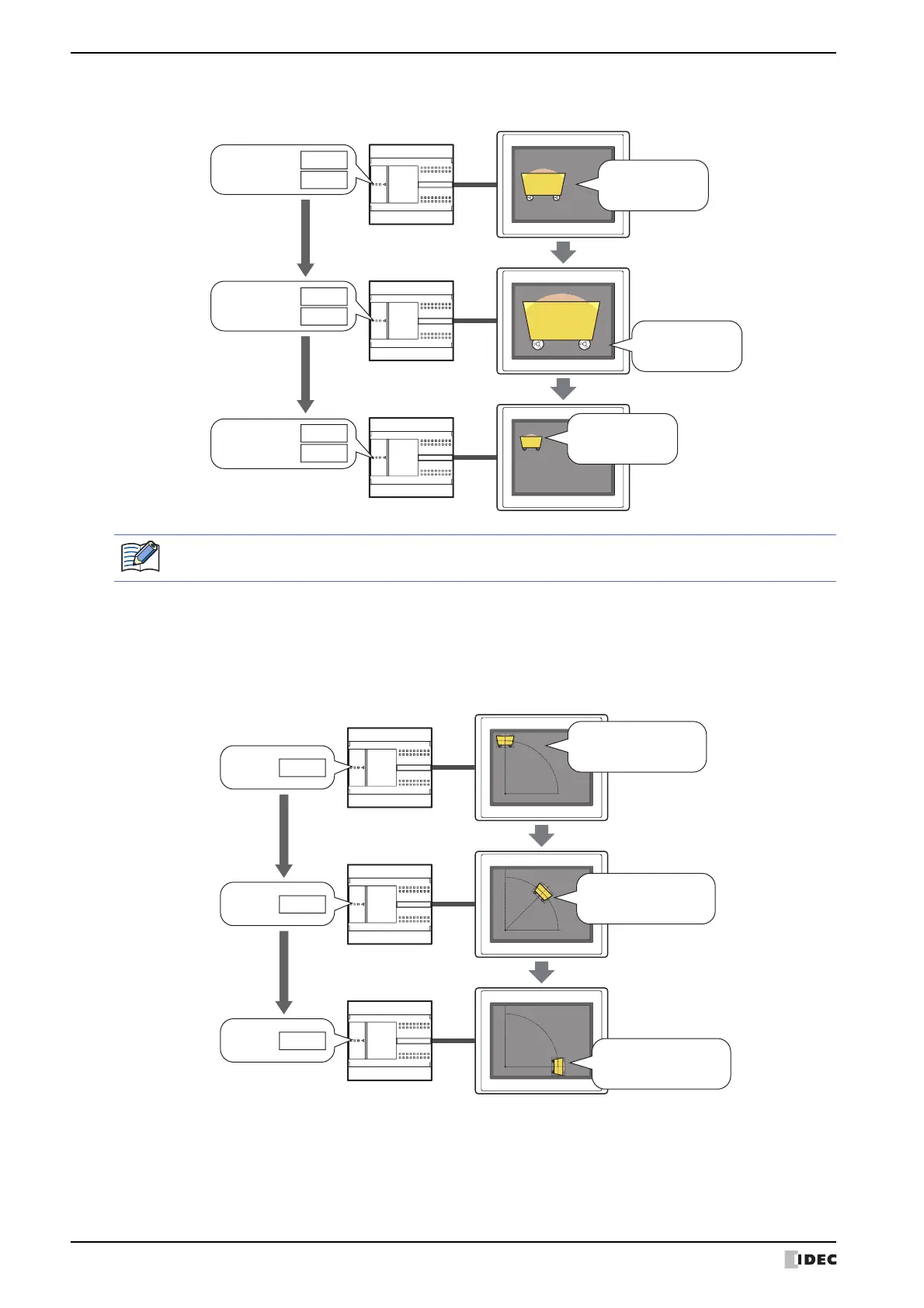

• Scale the size of the picture by values of device addresses and display it
• Rotate the picture by values of device addresses and display it
This example shows a 0° start angle of rotation at the minimum value of 0 and a 90° end angle of rotation at the
maximum value of 100.
The pivot point of rotation is the position at X Point 0 and Y Point 500 from the center of picture.
When the size of pictures to switch differs and the Dynamic Size check box is cleared, all the pictures are
displayed with the same size as Pic0.
External device
MICRO/I
Shrink picture to
W 180, H 120
Scale picture to
W 360, H 240
Scale picture to
W 720, H 480
Width D100=
180
Height D101=
Width D100=
Height D101=
Width D100=
Height D101=
120
360
240
720
480
External device
MICRO/I
Display picture
at posion where it
has been rotated 90°
Display picture
at posion where it
has been rotated 45°
Display picture
at same posion
as when not rotated
D100=
0
D100=
50
D100=
100
