5.2.2 Overview: Project structure with AC4S
43018

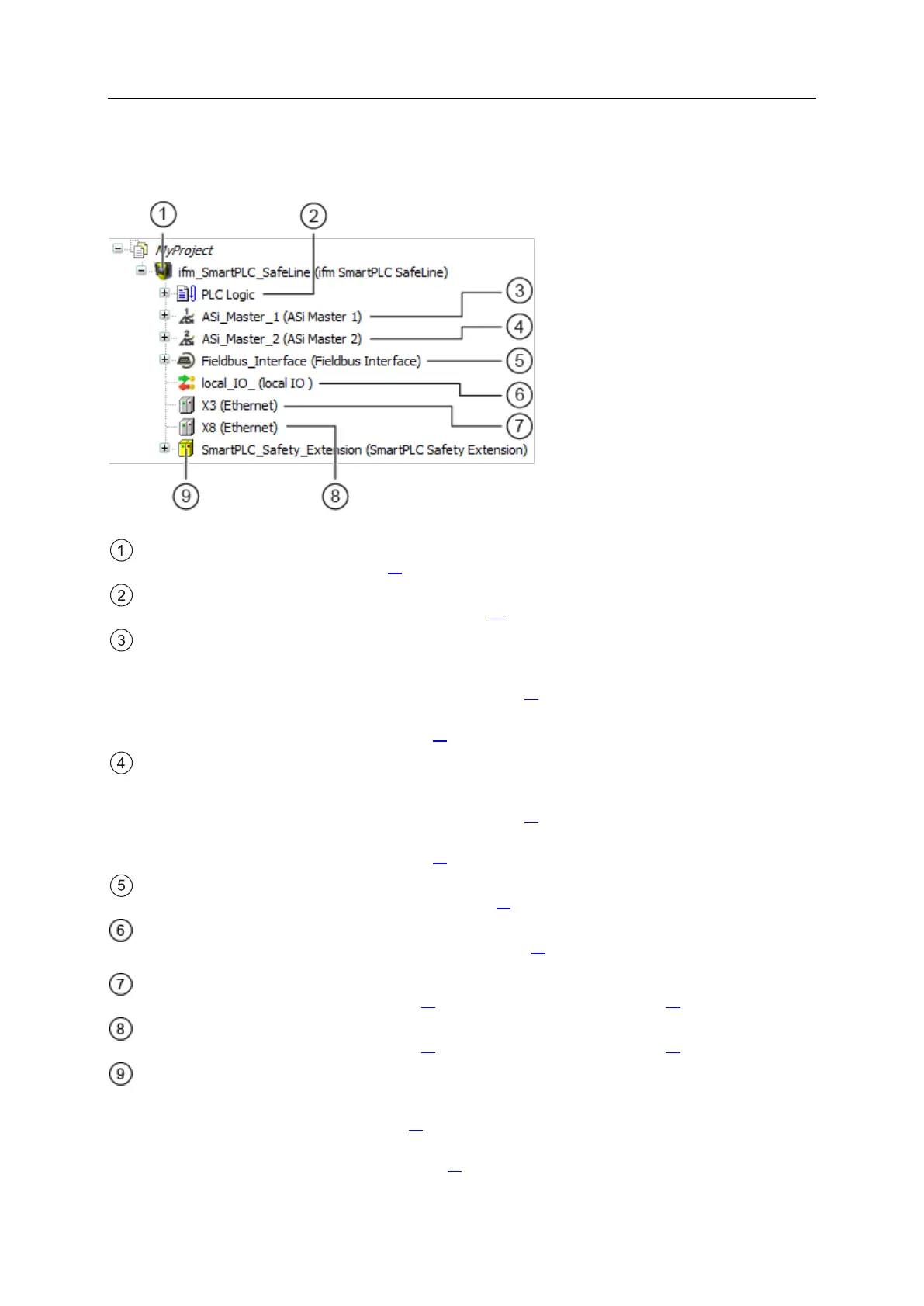

[ifm_SmartPLC_SafeLine (ifm SmartPLC SafeLine)] provides access to the settings of the Standard PLC of the AC4S
→Configure standard PLC (→ S. 22)
[PLC Logic] contains the Standard PLC applications of AC4S.
→Objects of a standard PLC application (→ S. 47)
[ASi_Master_1] contains the following objects:
 Process data images of the standard AS-i slaves at AS-i Master 1
→Access standard input and output data (→ S. 50)
 Configuration nodes for safe AS-i slaves at AS-i Master 1
→Configure safe AS-i slaves (→ S. 24)
[ASi_Master_2] contains the following objects:
 Process data images of the standard AS-i slaves at AS-i Master 2
→Access standard input and output data (→ S. 50)
 Configuration nodes for safe AS-i slaves at AS-i Master 2
→Configure safe AS-i slaves (→ S. 24)
[Fieldbus_Interface] provides access to the input and output data of the fieldbus interface.
→Access standard input and output data (→ S. 50)
[local_IO] is the configuration node for safe devices at the local I/O interface
→Configure safe devices at local I/O interface (→ S. 32)
[X3] provides access to the configuration options of the configuration interface 2 (X3)
→Extend fieldbus functionality (→ S. 42) and →Change IP settings (→ S. 40)
[X8] provides access to the configuration options of the configuration interface 2 (X8)
→Extend fieldbus functionality (→ S. 42) and →Change IP settings (→ S. 40)
[SmartPLC_Safety_Extension] provides access to the following objects:
 Settings of the fail-safe PLC of AC4S
→Configure fail-safe PLC (→ S. 23)
 Safe application
→Objects of a safe application (→ S. 71)
