7.3.3 Process data of the AS-i slaves
42517

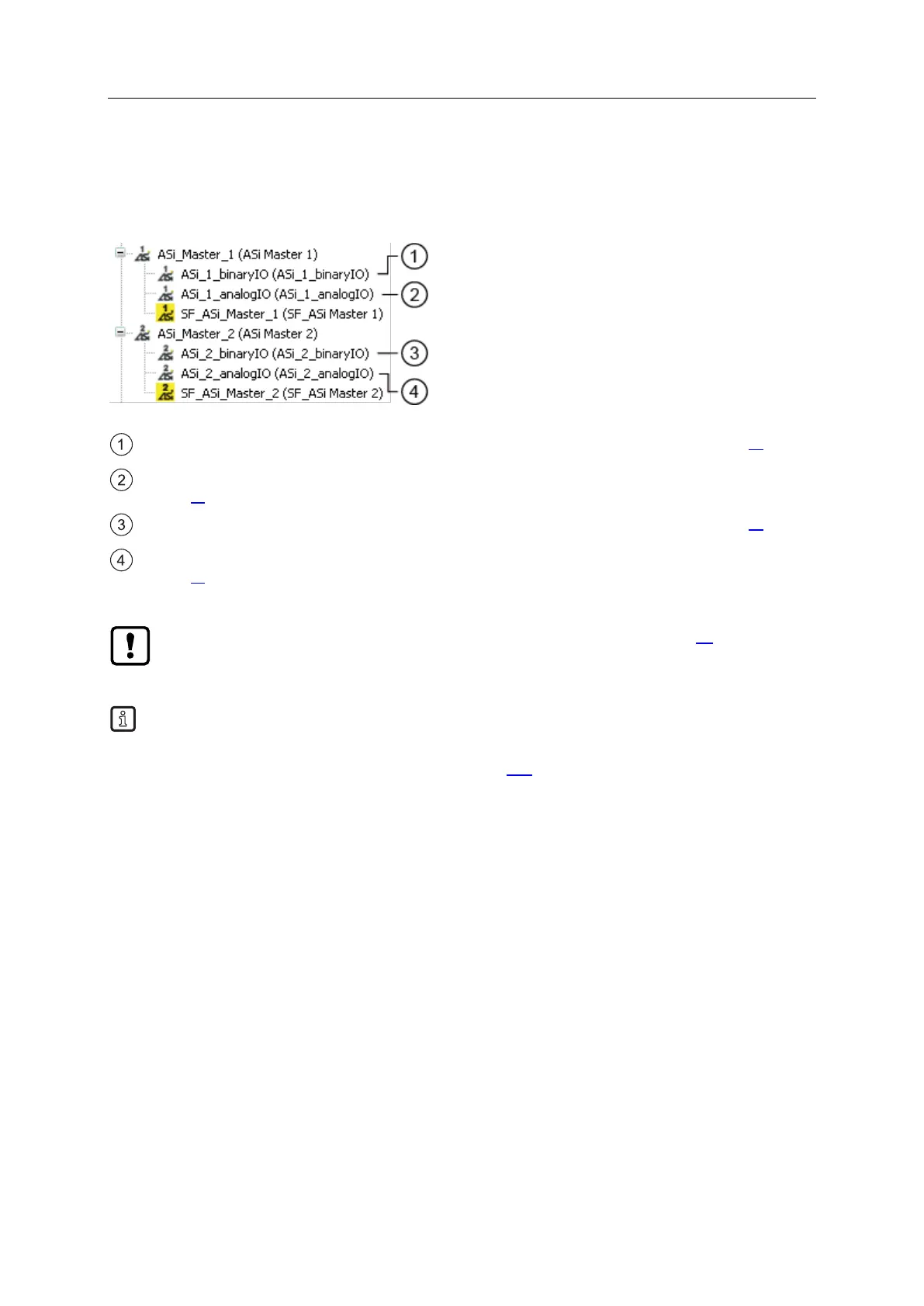

The project tree offers direct access to the cyclically updated process images of the inputs and outputs
of the AS-i slaves.
Digital input and output data of the slave at AS-i Master 1: →Digital input and output data (→ S. 53)
Analogue input and output data of the slaves at AS-i Master 1: →Analogue input and output data
(→ S. 53)
Digital input and output data of the slave at AS-i Master 2: →Digital input and output data (→ S. 53)
Analogue input and output data of the slaves at AS-i Master 2: →Analogue input and output data
(→ S. 53)
Consider validity of the interface data (→Validity of the interface data (→ S. 51))!
The function library ACnnnn_Utils.library contains the complex variable ASi_NET. The
variable represents all inputs and outputs of a completely developed AS-i network. The
programmer can use this data structure to store the process images of the inputs and outputs
of an AS-i network. (→ASI_NET (STRUCT) (→ S. 175))
