Digital input and output data
42438

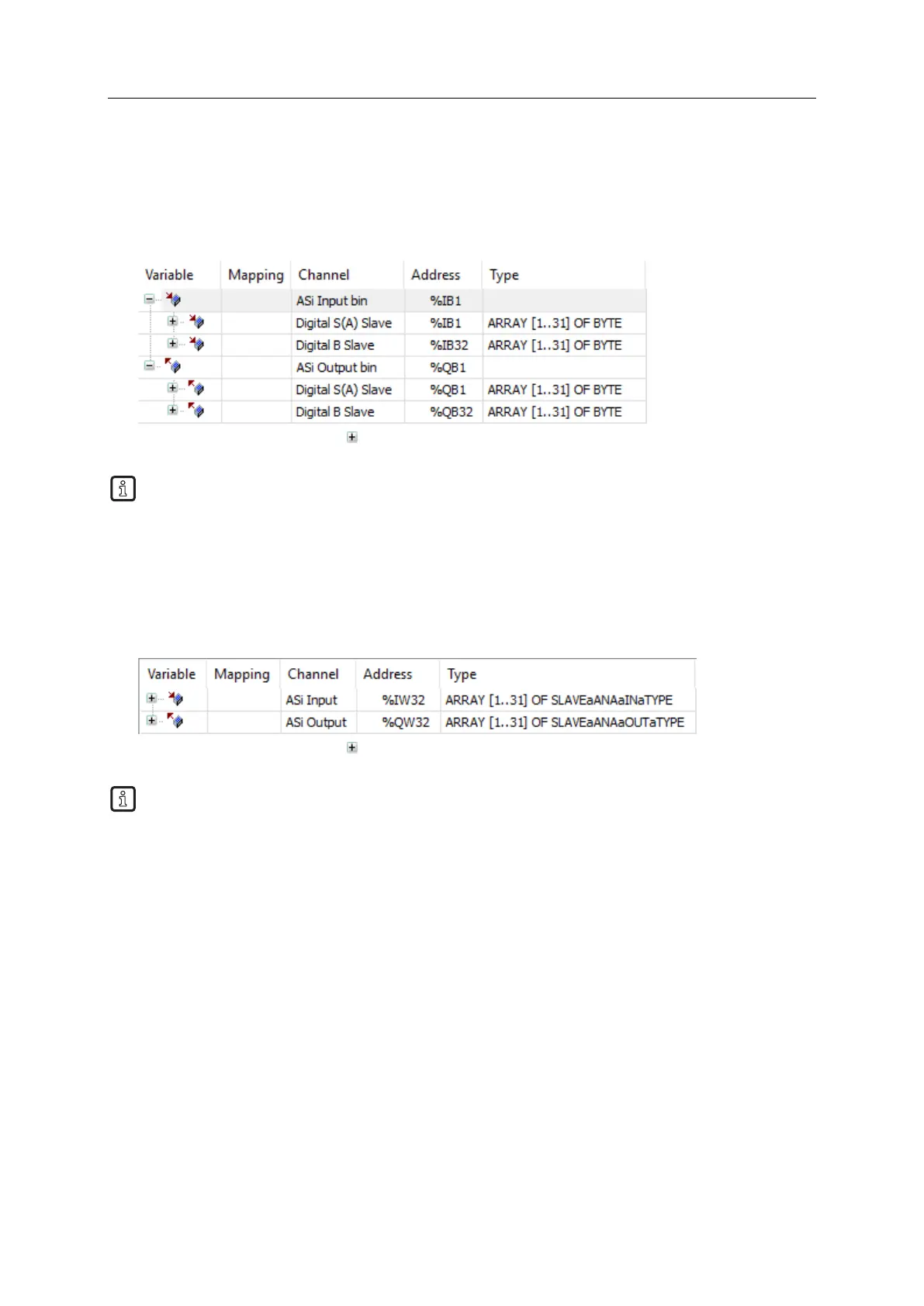

To access the digital process data of the slaves at AS-i master 1:
► In the device tree: Double click on [ASi_1_binaryIO]
> The editor window shows a structured list of the digital inputs and outputs of the AS-i slaves.
► In column [Variable]: Mouse click on to make individual variables visible.
To access the digital process data of the slaves at AS-i master 2 in a system with 2 AS-i masters:
► Double click on [ASi_2_binaryIO]
>
Analogue input and output data
42499
To access the analogue process data of the slaves at AS-i master 1:
► In the device tree: Double-click on [ASi_1_analogIO]
> Editor window shows a structured list of the analogue inputs and outputs of the AS-i slaves.
► In column [Variable]: Mouse click on to make individual variables visible.
To access the analogue process data of the slaves atAS-i Master2 in a system with 2 AS-i masters:
► Double-click on [ASi_2_analogIO]
