7.5.2 Add visualisation to a project
43266
To add a visualisation to a CODESYS project:
► open CODESYS project.
OR:
Create new CODESYS project. (→Create new project with AC4S (→ S. 16)
► In standard area of device tree: Select [Application].
► Select [Project] > [Add Object] > [Visualization...].
> Window [Add Visualization] appears.
► Enter a name for the visualisation in the field [Name] and click on [Add] to apply it.

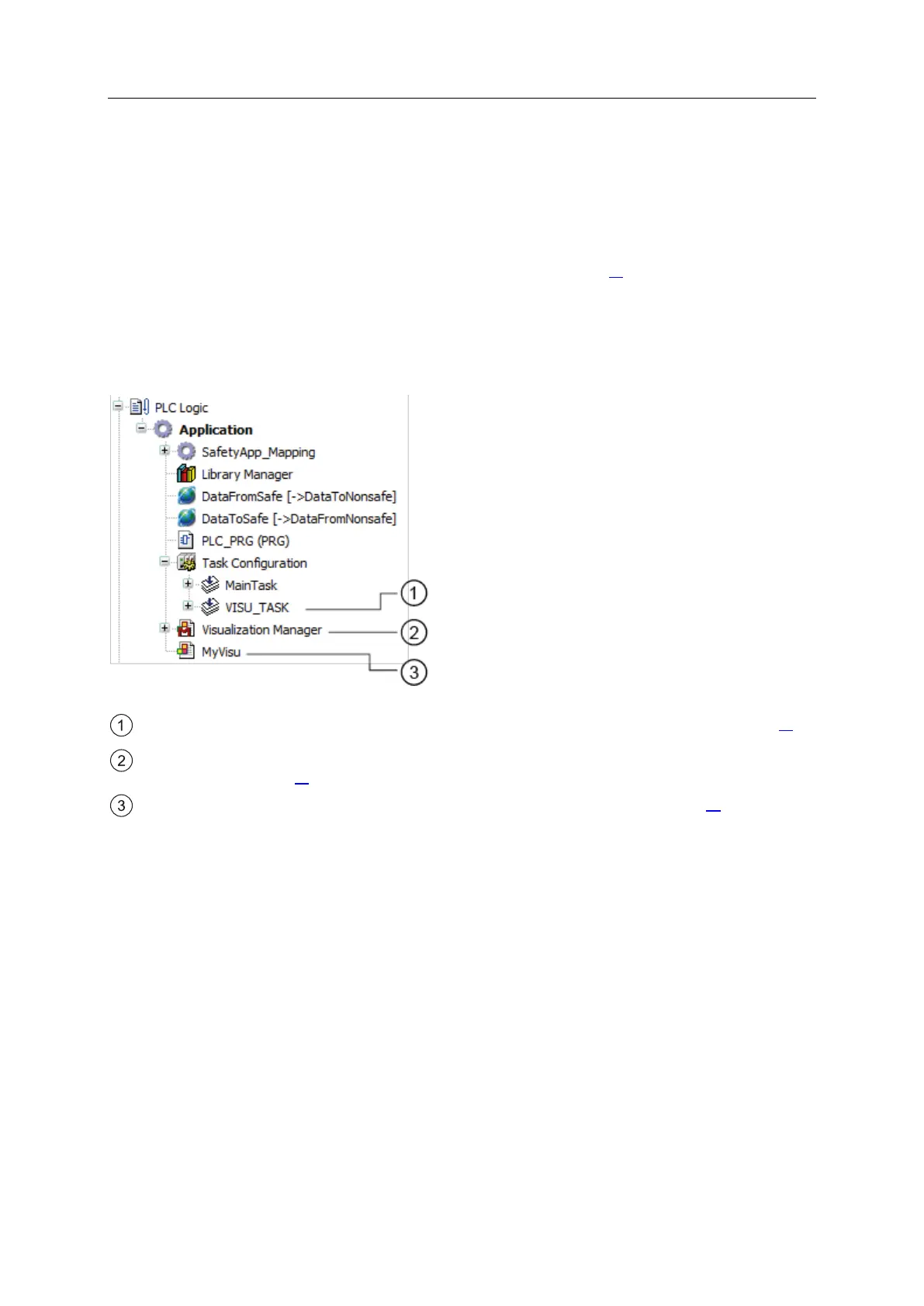

> CODESYS adds the following elements to the standard area of device tree:
[VISU_TASK]: Set the visualisation task properties: →Set parameters for visualisation task (→ S. 69)
[Visualization Manager]: Set properties of the visualisations: →Change properties of the web
visualisation (→ S. 66)
[MyVisu]: Area for the creation of the visualisation objects: →Create a visualisation (→ S. 65)
