7.5.3 Create a visualisation
42487
Create a seperate visualisation object for each target and web visualisation.
To create a visualisation for a Standard PLC application:
► In the standard area of device tree: double-click on [MyVisu]

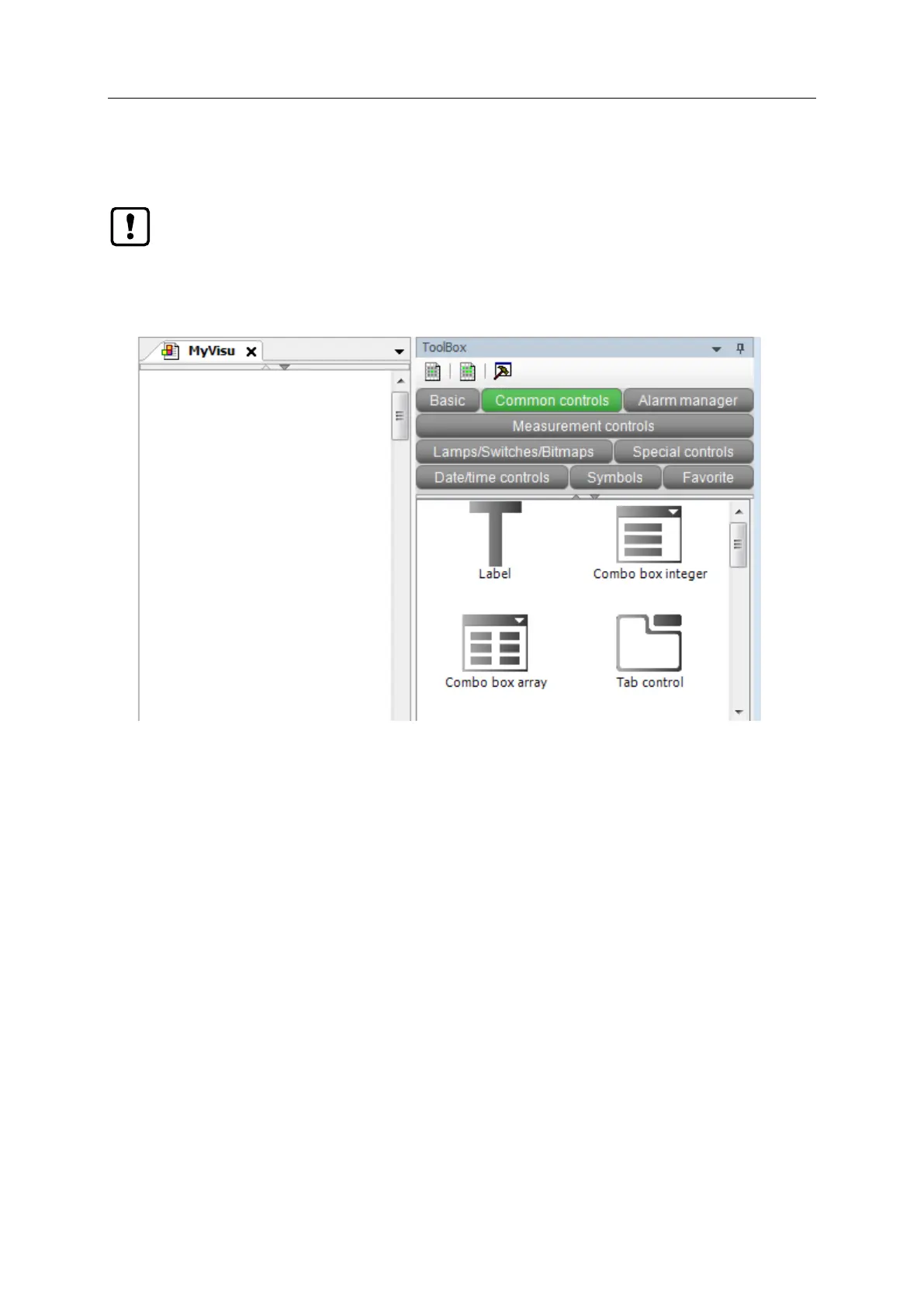

> The visualisation editor with a tool box appears:
► Create the visualisation using the tools.
► Save the project to apply changes.
