SmartPLC SafeLine AC4S with fieldbus interfaces
190
>
10.3.2 CtrlASi_OutSlave
43257
Function block type:
Function block (FB)
Library:
sf_io.library

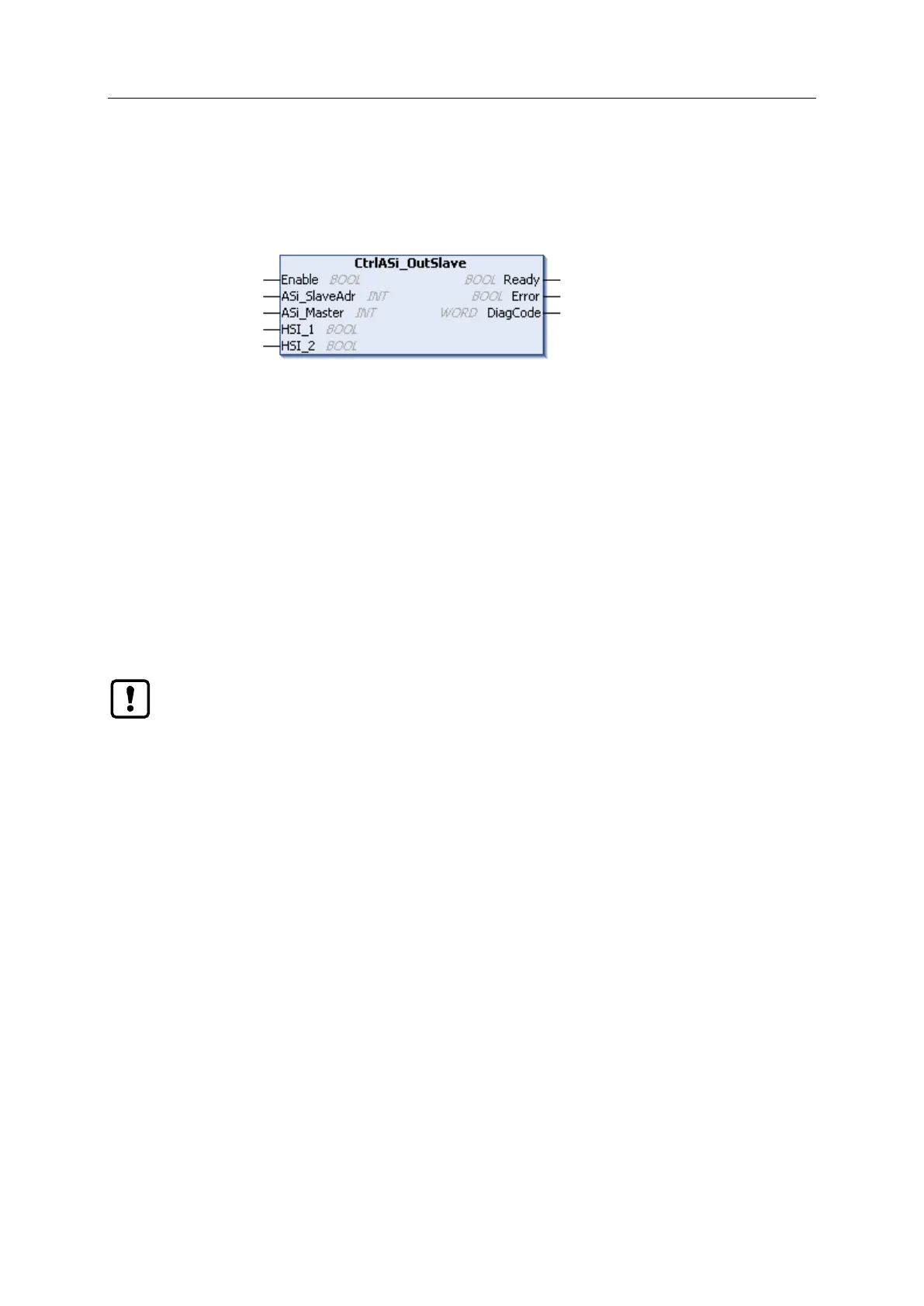

Symbol in CODESYS:
>
Description
43300
Function block (FB) to control the logical device of a safe AS-i control slave (ASi_SlaveAdr,
ASi_Master)
The programmer can carry out the following actions via CtrlASi_OutSlave:
 Transmit signal to unlock the safe AS-i slaves (auxiliary signal HSI_1)
 Transmit signal for automatic new start (auxiliary signal HSI_2)
The FB provides the following state and diagnostic information:
 State of the FB processing (ready)
 Error state of the function block (Error)
 Diagnostic information of the logical device (DiagCode)
The function block can be instanced as often as required within the limits of CODESYS.
