7.5.4 Configure visualisation
43248
To configure the characteristics of the created visualisation select one of the following options:
Change properties of the web visualisation (→ S. 66)
>
Change properties of the web visualisation
42485
To change the attributes of the web visualisation:
► In standard area of device tree: Double click on [Web-Visualisierung]

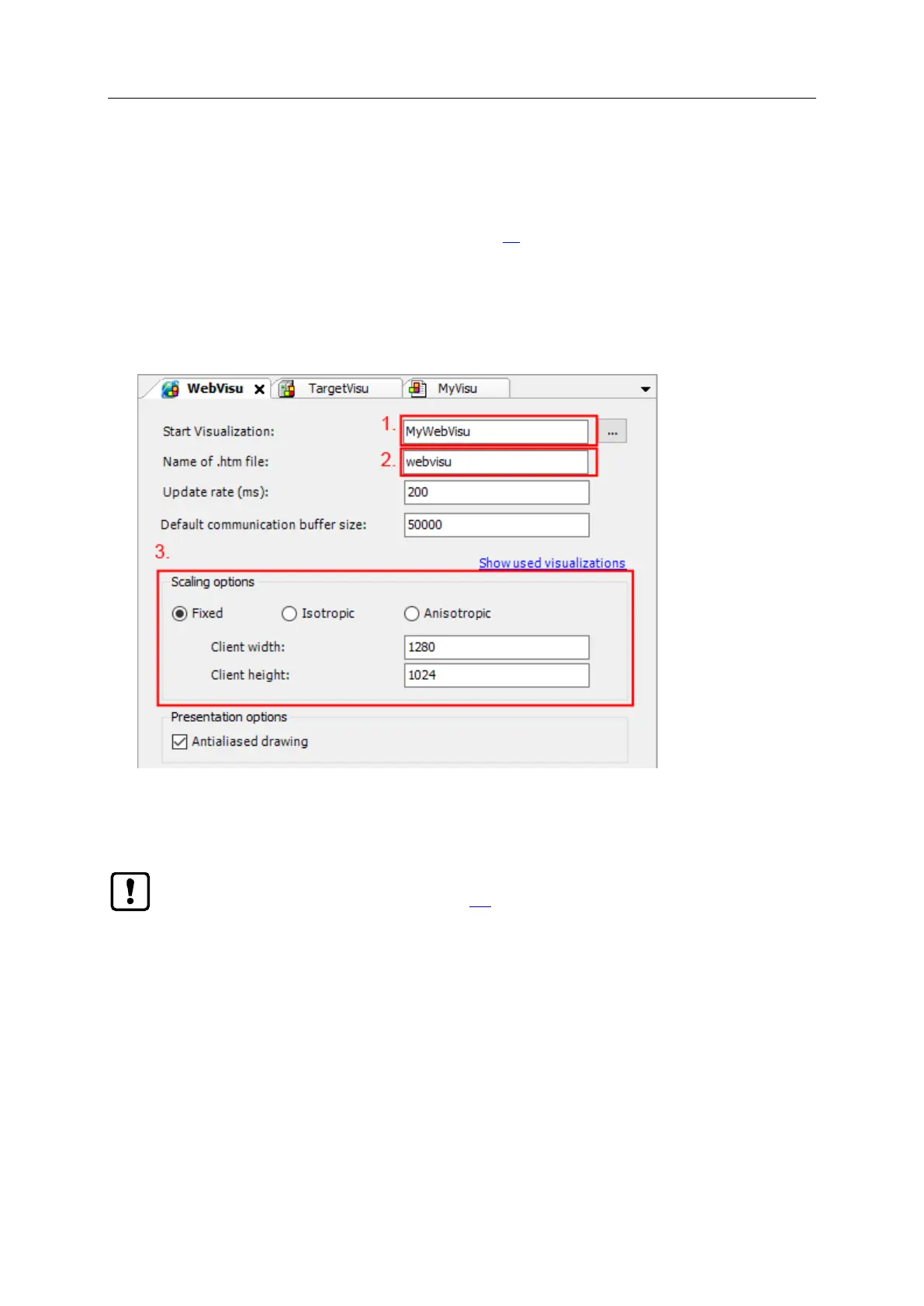

> The editor window shows attributes of the web visualisation:
► Set the following values:
1. Field [Start Visualization]: Select the created web visualisation.
2. Field [Name of .htm file]: Enter name for HTML file (→ Note).
3. Area [Scaling options]: Enter fixed width and height as shown.
In the field [Name of .htm file] enter the name by which the web visualisation is to be accessible in the web
browser (→Display web visualisation (→ S. 115)).
► Use only lower case when entering the name!
