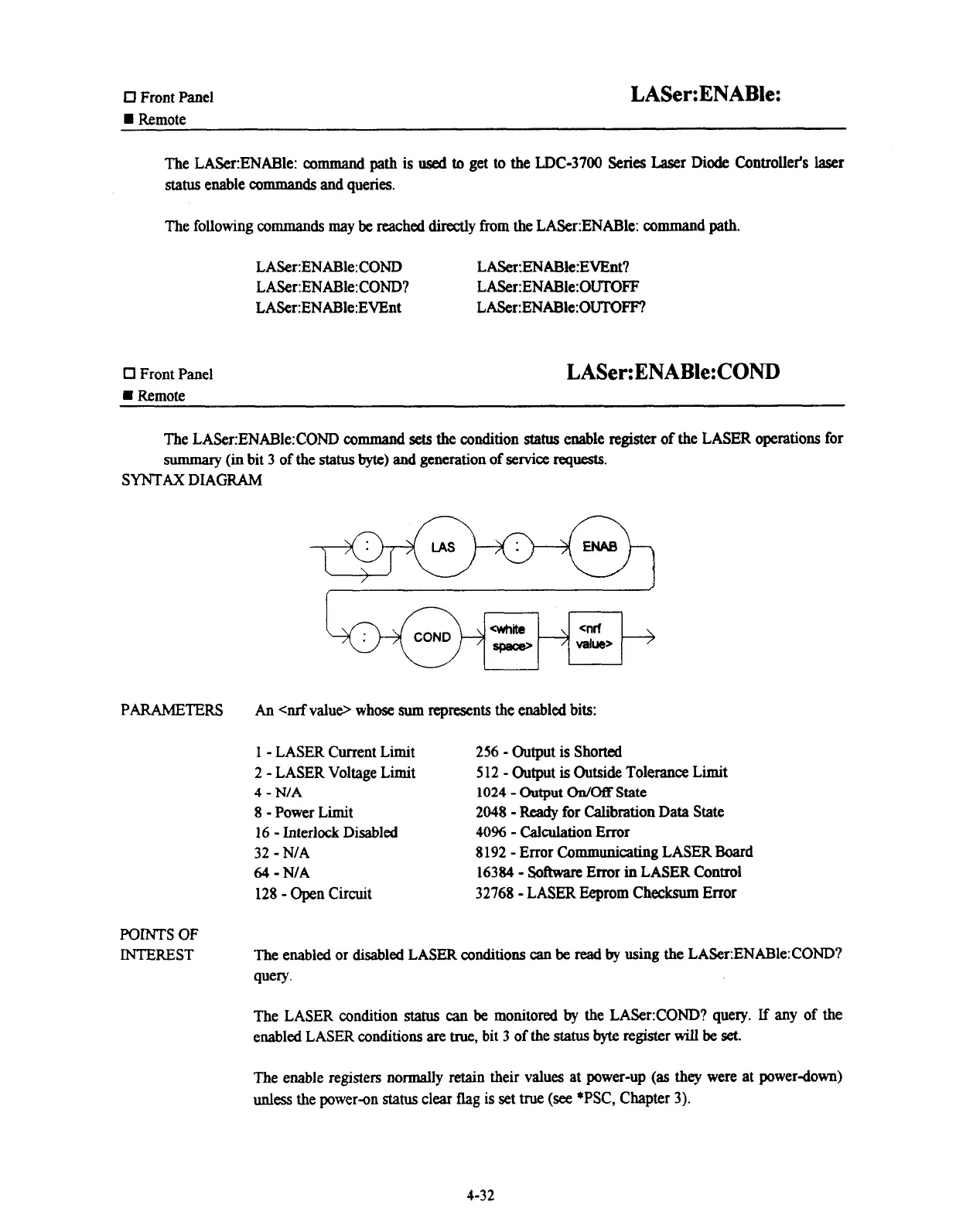

LASer: ENABle:
The LASer:ENABle: command path is used to get to the LDC-3700 Series Laser Diode Controller's laser
status enable commands and queries.
The following commands
may be reached directly from the LASer:ENABle: command path.
LASer:ENABle: COND LASer:EN ABle:EVEnt?
LASer:ENABle:COND? LASer:ENABle:OUTOFF
LASer:ENABle:EVEnt LASer:ENABle:OUTOFF?
0 Front Panel
8 Remote
The LASer:ENABle:COND command
sets the condition status enable register of the LASER operations for
summary (in bit 3 of the status byte) and generation of service requests.
SYNTAX DIAGRAM
PARAMETERS
An <nrf value> whose sum represents the enabled bits:
1 - LASER Current Limit
2 - LASER Voltage Limit
4 - N/A
8 - Power Limit
16 - Interlock Disabled
32 - N/A
64 - N/A
128 - Open Circuit
256 - Output is Shorted
5 12 - Output is Outside Tolerance Limit
1024 - Output WOE State
2048 - Ready for Calibration Data State
40% - Calculation Error
8 192 - Error Communicating LASER l3oard
16384 - Software Error in LASER Control
32768 - LASER Eeprom Checksum Error
POINTS OF
INTEREST
The enabled or disabled LASER conditions
can be read by using the LASer:ENABle:COND?
query.
The LASER condition status can be monitored by the LASer:COND? query. If any of the
enabled LASER conditions
are true, bit 3 of the status byte register will be set.
The enable registers normally retain their values at power-up (as they were at powerdown)
unless the power-on status clear flag is set true (see *PSC, Chapter 3).
