1.9 Physical Requirements
The following sections show the physical dimensions, weight, mounting
requirements, ventilation requirements, and the perimeter required for
maintenance access for Transpector XPR 3+.
1.9.1 Physical Dimensions

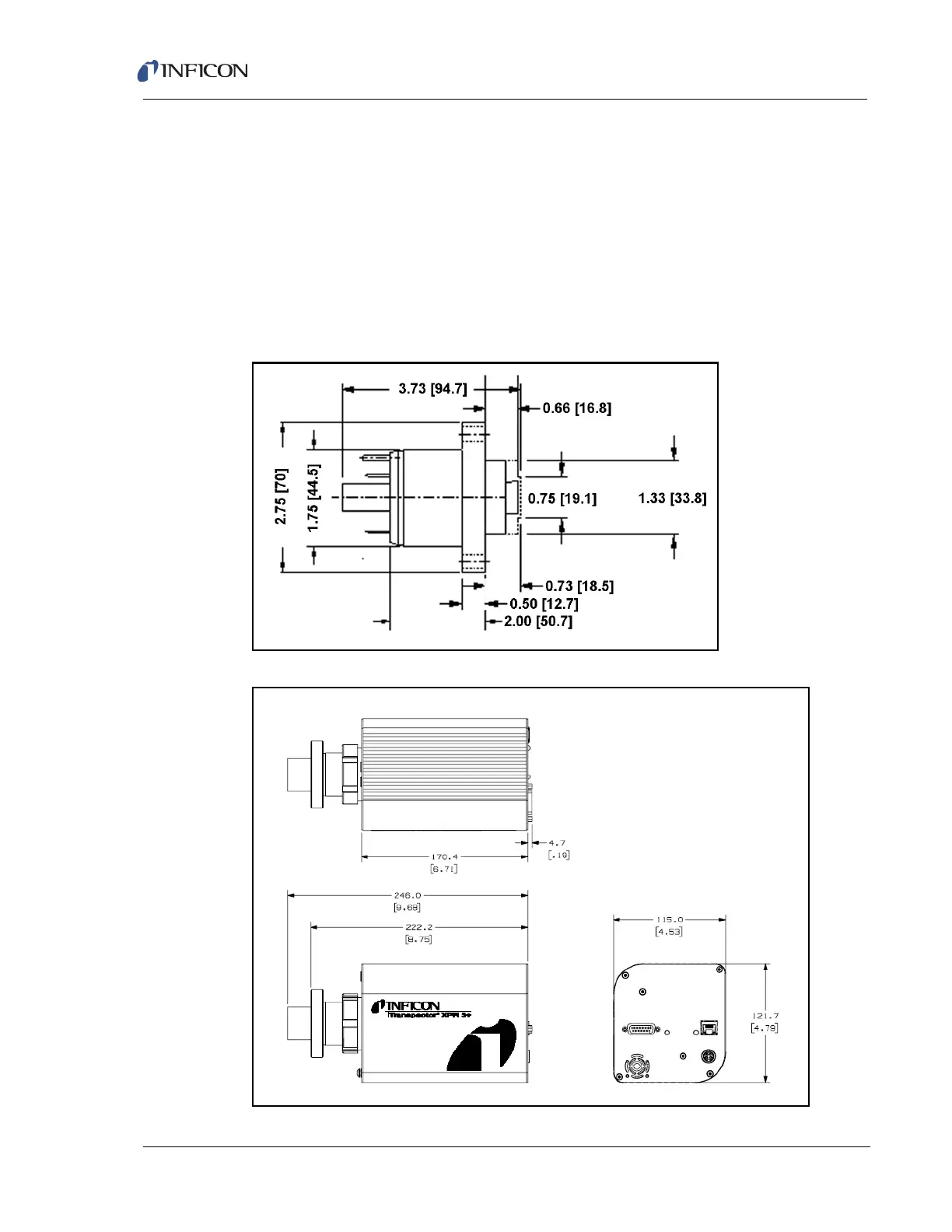

Figure 1-2 shows the overall physical dimensions of Transpector XPR 3+ in inches
[millimeters].
Figure 1-1 Sensor dimensions
Figure 1-2 Physical dimensions of Transpector XPR 3+
