Transpector XPR 3+ Operating Manual

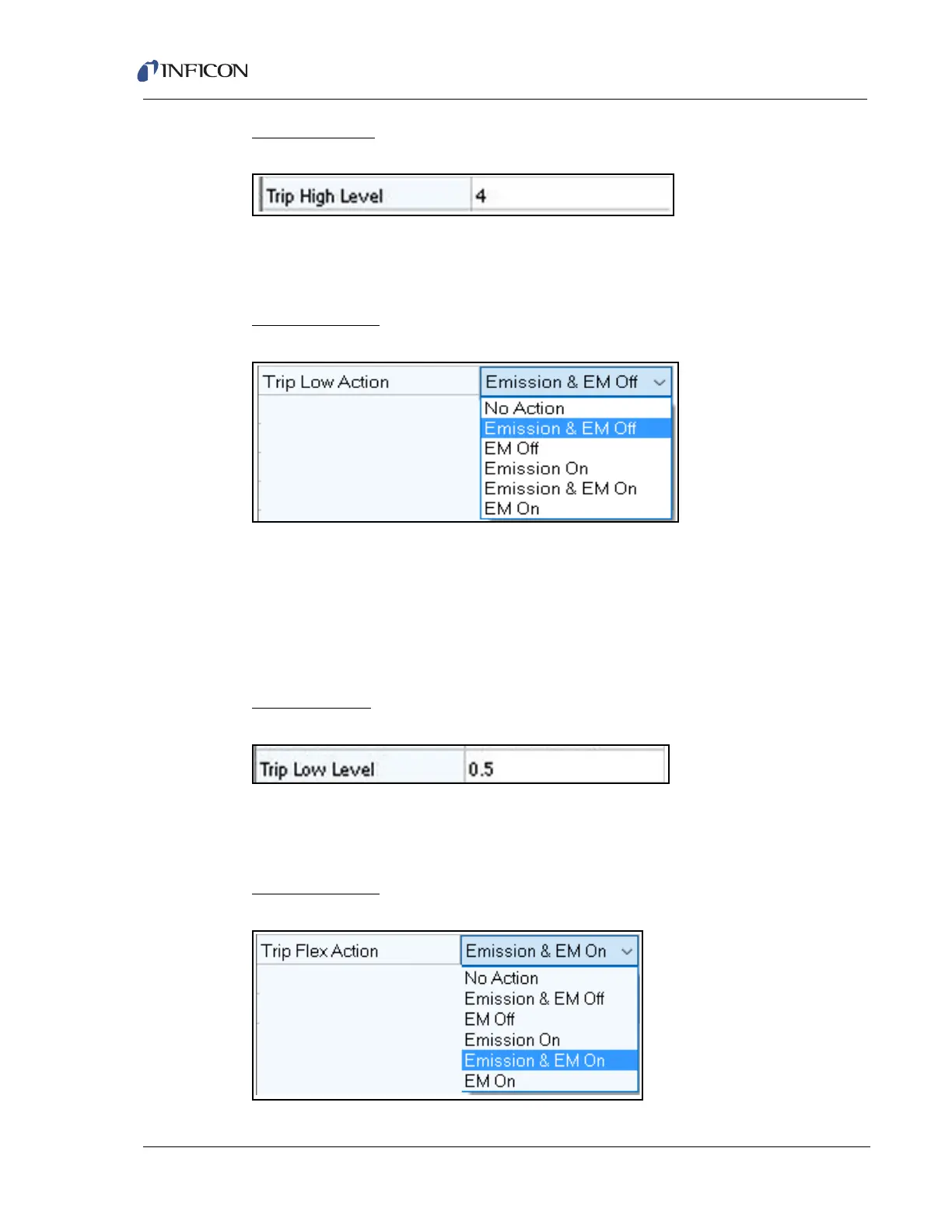

High Trip Level
Figure 5-7 High trip level
Defines the High Trip Level. If INFICON Pirani, MxG, or BxG option is selected
as the Signal Type, the value will be in Torr or millibar depending upon the units
selected in the Signal Type list.
Low Trip Action
Figure 5-8 Low trip action
Defines the action that occurs when the Low Trip Level is reached. Low Trip
Action is typically used to protect the sensor in case the pressure gauge fails, or
the pressure gauge cable becomes disconnected.
NOTE: Low Trip Action will act as an emission interlock when set to a pressure
value below the minimum value possible for the pressure gauge, and
Emission and EM Off are selected.
Low Trip Level
Figure 5-9 Low Trip Level
Defines the Low Trip Level. If INFICON Pirani, MxG, or BxG option is chosen as
the Signal Type, the value will be in units of Torr or millibar depending upon the
units selected in Signal Type.
Flex Trip Action
Figure 5-10 Flex Trip Action
