XTC/3 Operating Manual
Select the button for Use the following IP address, enter the IP address: and
Subnet mask: shown in Figure 5-4, and press OK. With this selection, the PC is
assigned an IP address to use when communicating with XTC/3.
XTC/3 is shipped from INFICON with a pre-assigned address of 10.211.70.203.
To communicate directly with XTC/3 from a PC, the PC must also be assigned an
address that starts with 10.211.70 but cannot be set to 10.211.70.203.
The example in Figure 5-4 uses the address 10.211.70.100 for the PC.

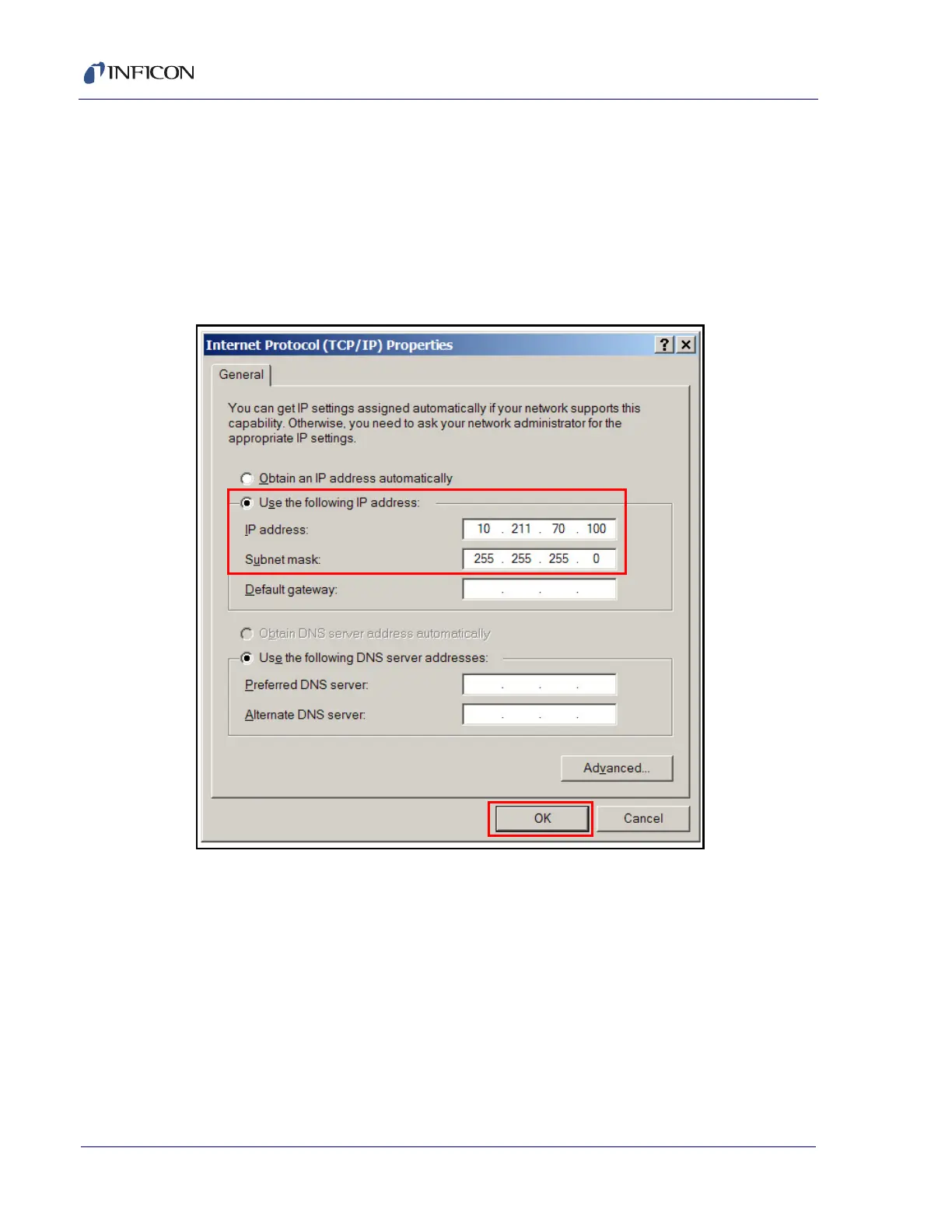

Figure 5-4 Entering the IP Address and Subnet mask
Click OK to all open dialogs to close out the Internet Protocol setup for
the Local Area Connection.
