Requirements
To ensure the device can be operated via the Ethernet interface, the
function must be activated in the settings menu. Here, you can
choose between the options
on
(read only) and
Auto
(read and write)
(see chapter 7.7.9 "Setting up Data Exchange via Ethernet", page
115).
Displays on the device
If the device is controlled using eve
®
, this is displayed on the device as
follows:
While the device is being registered in eve
®
, the interior light-
ing of the device is flashing. This is used, in particular, to iden-
tify the unit in case of stacked devices.
The white dot at the bottom right of the operating panel (3)
lights up if the Ethernet connection has been recognised (cable
connected and IP address received from DHCP).
The white dot (3) flashes at four-second intervals if the connec-
tion to the device was interrupted or the device was not regis-
tered in eve
®
.

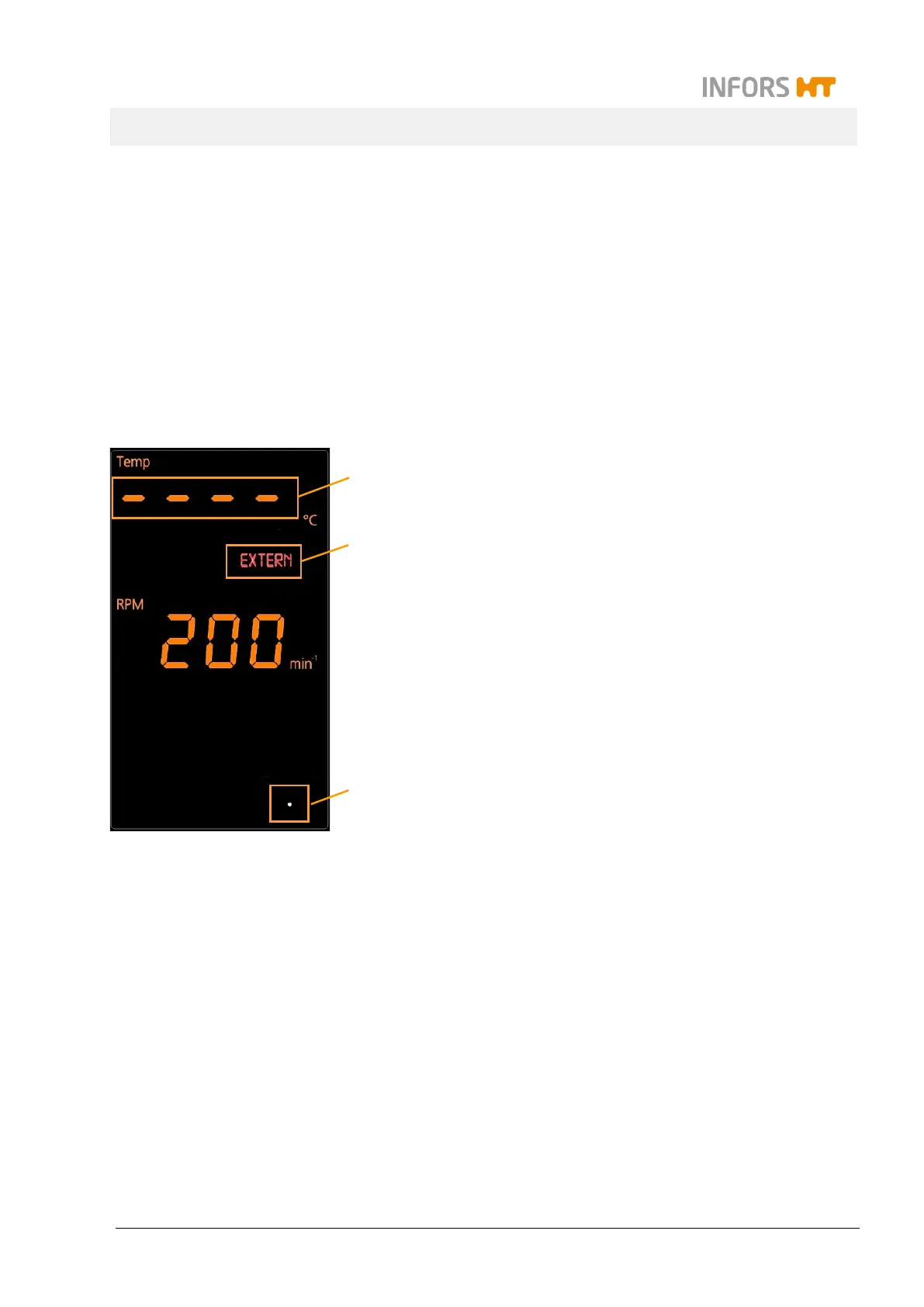

If setpoints are written to the device, the red symbol
EXTERN
(2) lights up on the display field.
If a parameter has been deactivated by sending setpoint 0, this
is indicated by four dashes (1) on the operating panel.
1
3
2
