3.2 Basic Functions
The standard features of the device include the shaking function (pa-
rameter
RPM
) and temperature control (parameter
Temp
).

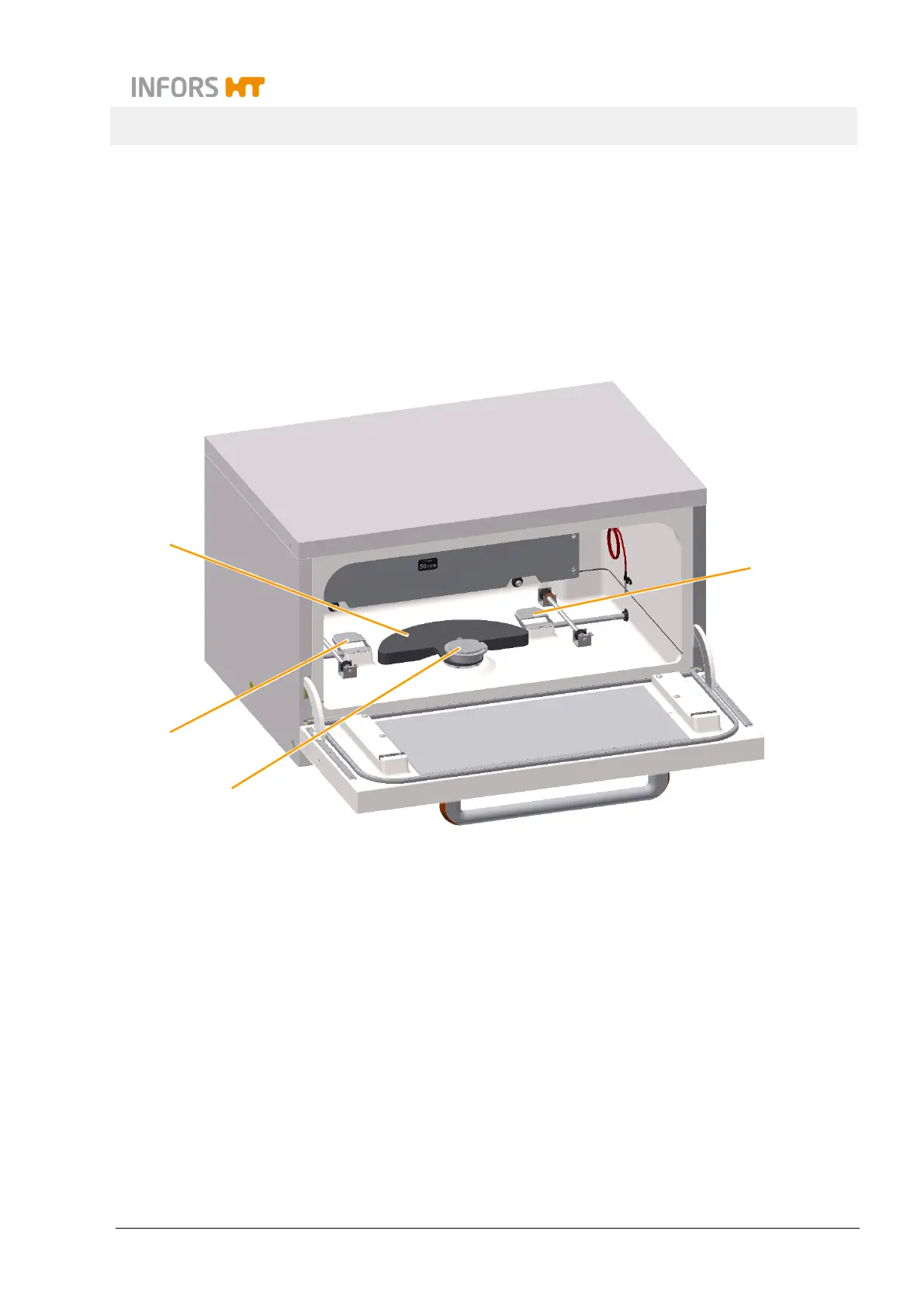

3.2.1 Standard Function Shaking
1 Counterweight
2 Tray ejection
3 Drive hub
The shaking table moves in circles. It is driven by an electric motor,
which is connected to the device’s flywheel by a drive belt. To pre-
vent injuries and facilitate loading and unloading, the drive is
switched off automatically as soon as the door is opened.
The counterweight used to balance the mass is fitted under the table.
Depending on the design, the deflection of the circular movement is
either 3, 25 or 50 mm or 12,5, 19, 25 or 50 mm for devices with an
adjustable throw. The table moves in clockwise circles.
1
2
2
3
