Setup and Function
Page 26 of 158 20 August 2020
Table
The table is used to hold the 85 x 47 cm (type M) tray, various ver-
sions of which are available. Bars on the sides, two stops and two
tapered plugs ensure that the tray is positioned correctly.
The table is connected to the drive hub by means of three hexalobu-
lar socket head cap (Torx) screws. To clean the base tray, the three
screws can be unscrewed and the table can be lifted 30° to allow ac-
cess.

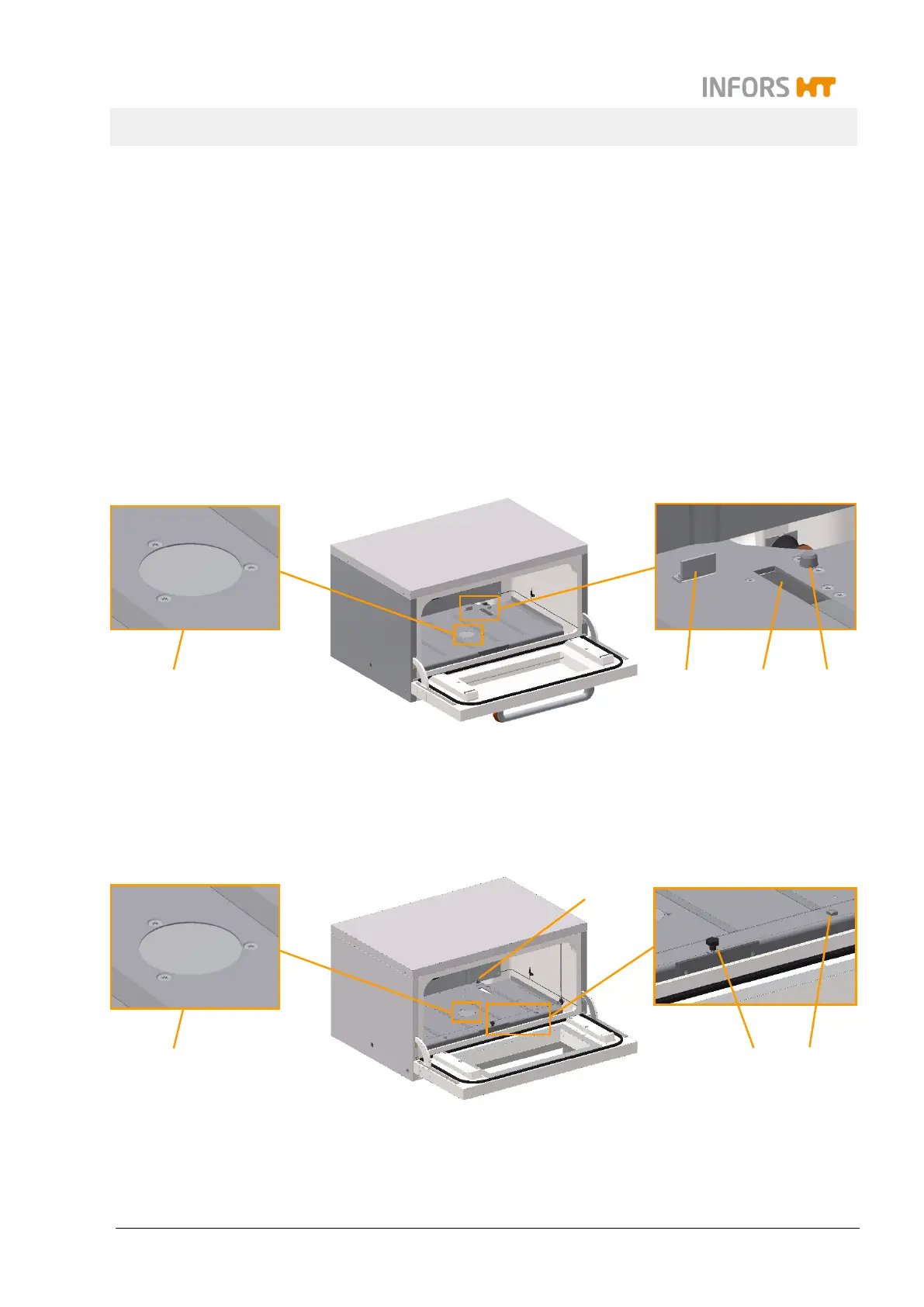

Depending on the throw of the device, the table varies as follows:
Table with 25 and 50 mm throw:
1 Drive hub
2 Limit stop
3 Tray ejection
4 Tapered plug
Table with 3 mm throw:
1 Drive hub
2 Limit stop
3 Knurled screw
4 Tapered plug
1
3
2
4
1
3
4
2
