12.2 Connections

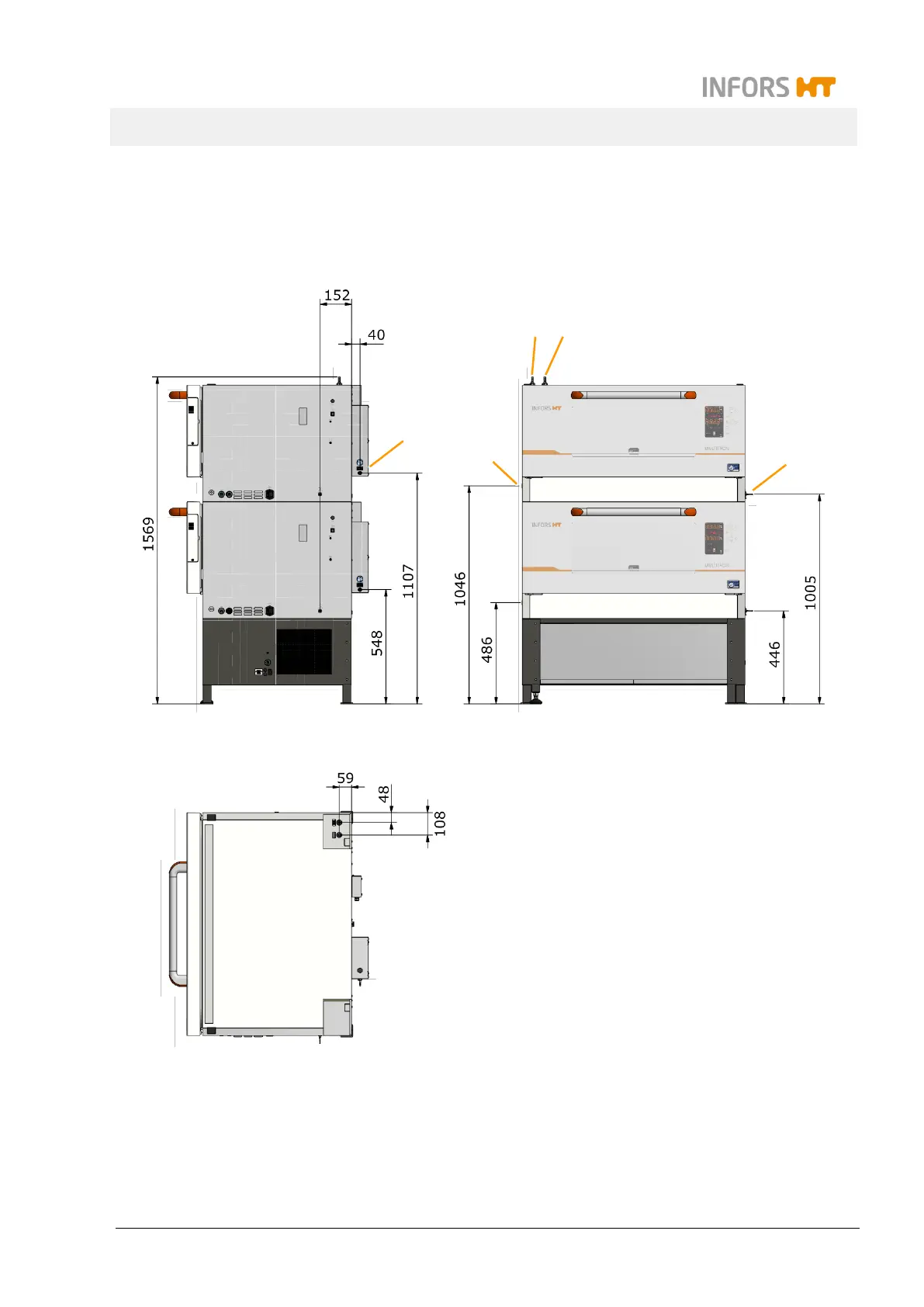

Two units stacked with high base frame:
1 Coolant in (hose connector DN10) / max. 4 bar
2 Coolant out (hose connector DN10) / pressure-
less
3 Demineralised water in (hose connector DN
06) /
max. 0.3 bar
4 Discharge outlet (female thread G1/4‘‘)
5 CO
2
in (hose connector DN04) / max. 0.5 bar
2
1
3
5
4
