Multitron - Operating Manual
Operation
Page 78 of 158 20 August 2020
Device with 3 mm throw:

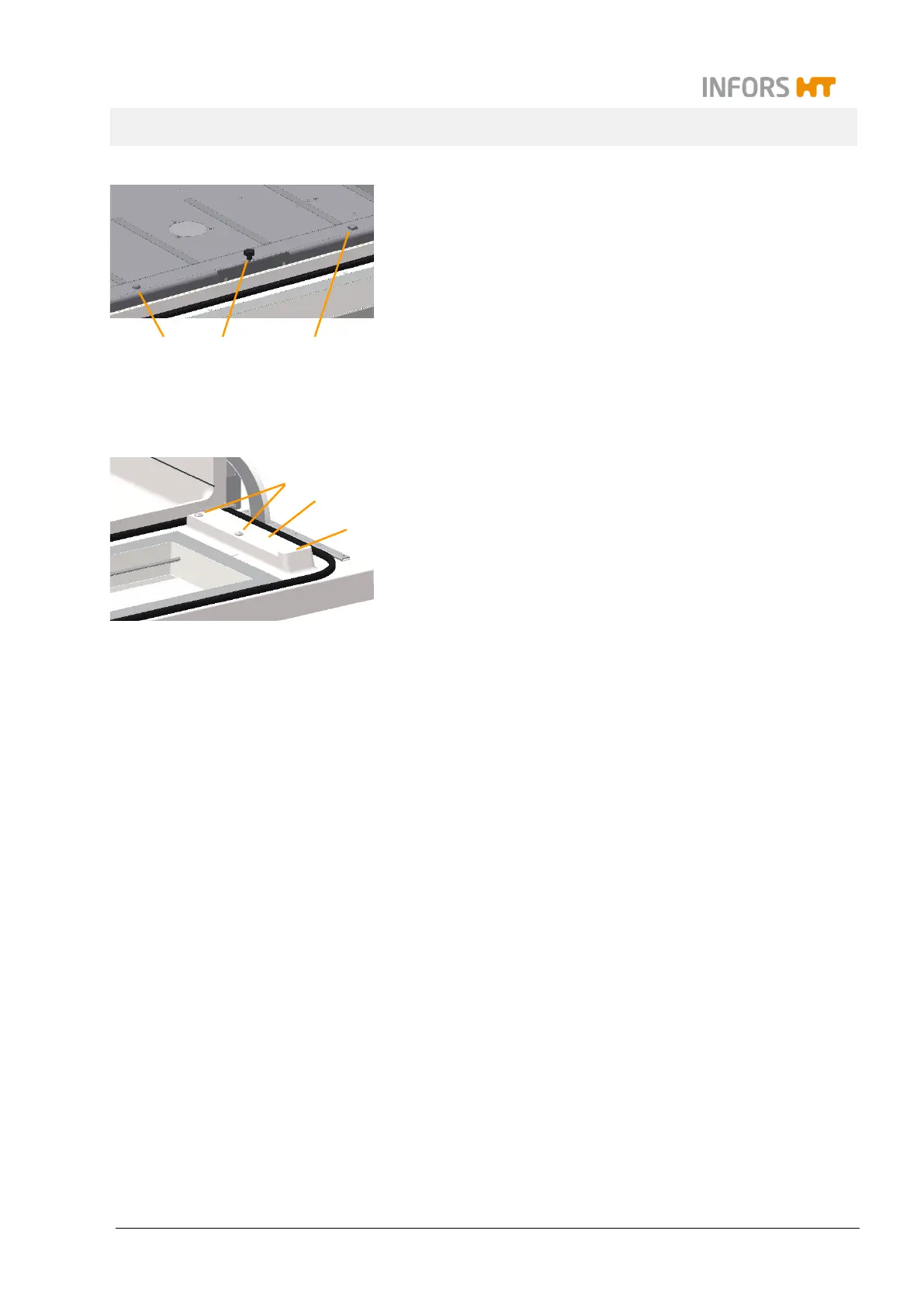

To insert the tray, manually move it into the incubation chamber all
the way to the limit stop and lower it into the locking cones (1) in the
front section of the table. The tray then has to be affixed to the table
using a knurled screw (2).
To remove the tray from the incubation chamber, the knurled screw
has to be unscrewed again. Following that, the tray can be lifted out
of the locking cones and be pulled out of the incubation chamber by
hand.
Removing the Tray
The tray is
always removed from the incubation chamber in the same
way, irrespective of the throw. The tray is pulled onto the door by
hand. Slide rails (2) and the cylindrical ball casters therein (1) on the
door guide the tray. Two stop bars (3) in the slide rails limit how far
the tray can be pulled out. When pulled out all the way, the tray lies
partially on the door and partially on the table. Proceed as follows:
Procedure 1. Open the device door all the way.
Device with 25 mm or 50 mm throw: The safety mechanism
lifts the tray out of the cones. The tray is thus free and can be
pulled out of the incubation chamber.
2. Device with 3 mm throw: Loosen the knurled screw and re-
move it
3. Lift the tray by the handle.
4. Pull the tray over the front stop bar and onto the open door.
If you cannot pull the tray out, check whether the door is open
all the way. Push the door down as far as it will go.
Inserting the Tray
To insert the tray, proceed as follows:
Procedure 1. Open the device door all the way.
2
1
3
1 2 1
