Intel S1200V3RP Technical Product Specification

Functional Architecture Intel® Server Board S1200V3RP TPS
Revision 1.2
12
3. Functional Architecture
The architecture and design of the Intel
®
Server Board S1200V3RP is based on the Intel
®
C220
series chipset. The chipset is designed for systems based on the Intel
®
Xeon
®
processor in an
LGA 1150 Socket H3 package.
The Intel
®
Server Board S1200V3RPO uses Intel
®
C224 chipset. The Intel
®
Server Board
S1200V3RPS uses Intel
®
C222 chipset. The Intel
®
Server Board S1200V3RPL and
S1200V3RPM use Intel
®
C226 chipset.
The Intel
®
Xeon
®
Processor E3-1200 V3 Processors are made up of multi-core processors
based on the 22nm processor technology. The 4
th
Intel
®
Core
™
i3 Processors are made up of
dual-core processors based on the 22nm processor technology.
This chapter provides a high-level description of the functionality associated with each chipset
component and the architectural blocks that make up the server boards.

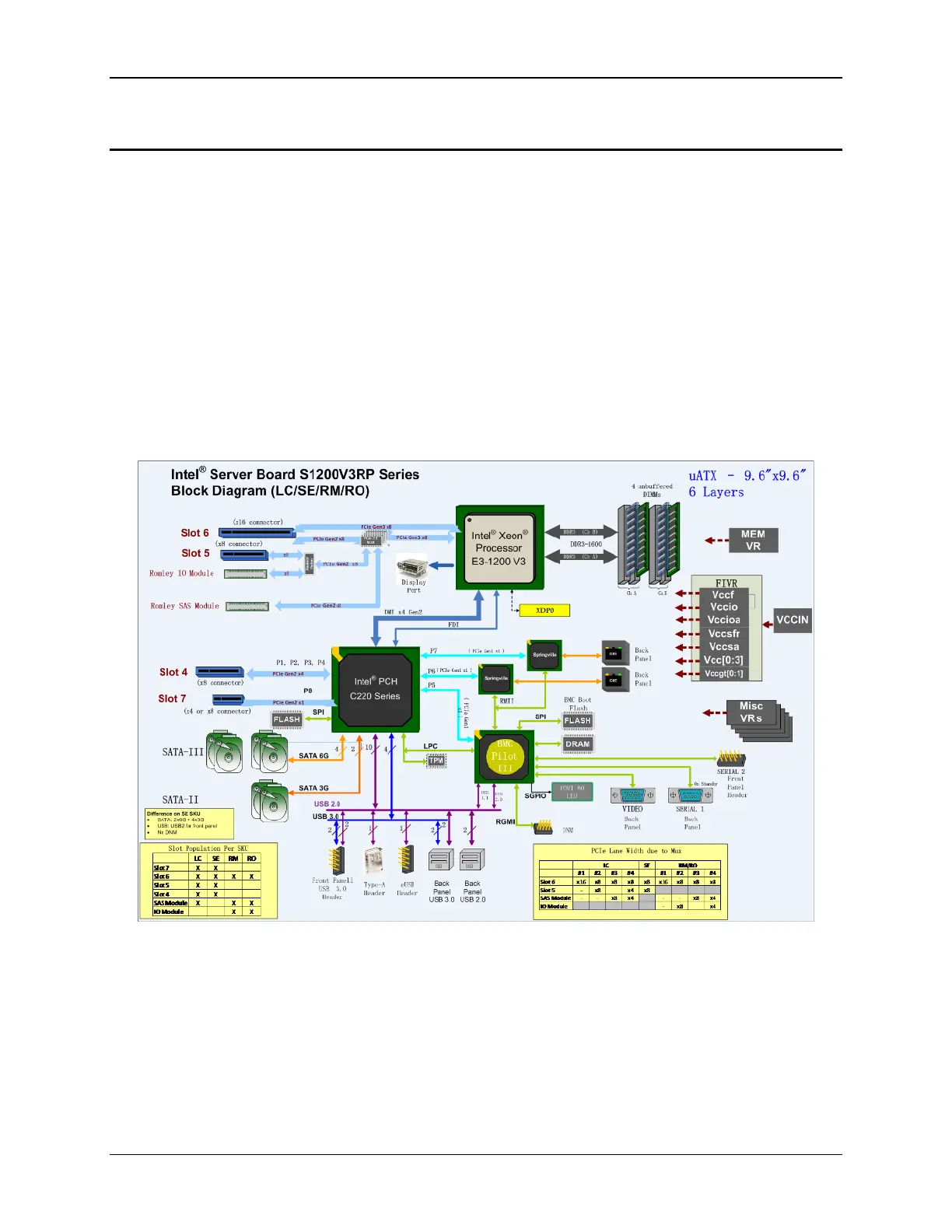

Figure 9. Intel
®
Server Board S1200V3RP Functional Block Diagram
3.1 Processor Subsystem
The Intel
®
Server Board S1200V3RP supports the following processor:
 Intel
®
Xeon
®
processor E3-1200 V3 product family
 The 4
th
Generation Intel
®
Core
™
i3 processors
