Functional Architecture Intel® Server Board S1200V3RP TPS
Revision 1.2
16
- When only one memory channel is populated, the memory runs in Single Channel
mode, with no interleaving.
On the Intel
®
Server Board S1200V3RP, a total of 4 DIMM slots is provided. The nomenclature
for DIMM sockets is detailed in the following table.
Table 3. Intel
®
Server Board S1200V3RP DIMM Nomenclature
(0)
Channel A
(1)
Channel B
A1
A2
B1
B2

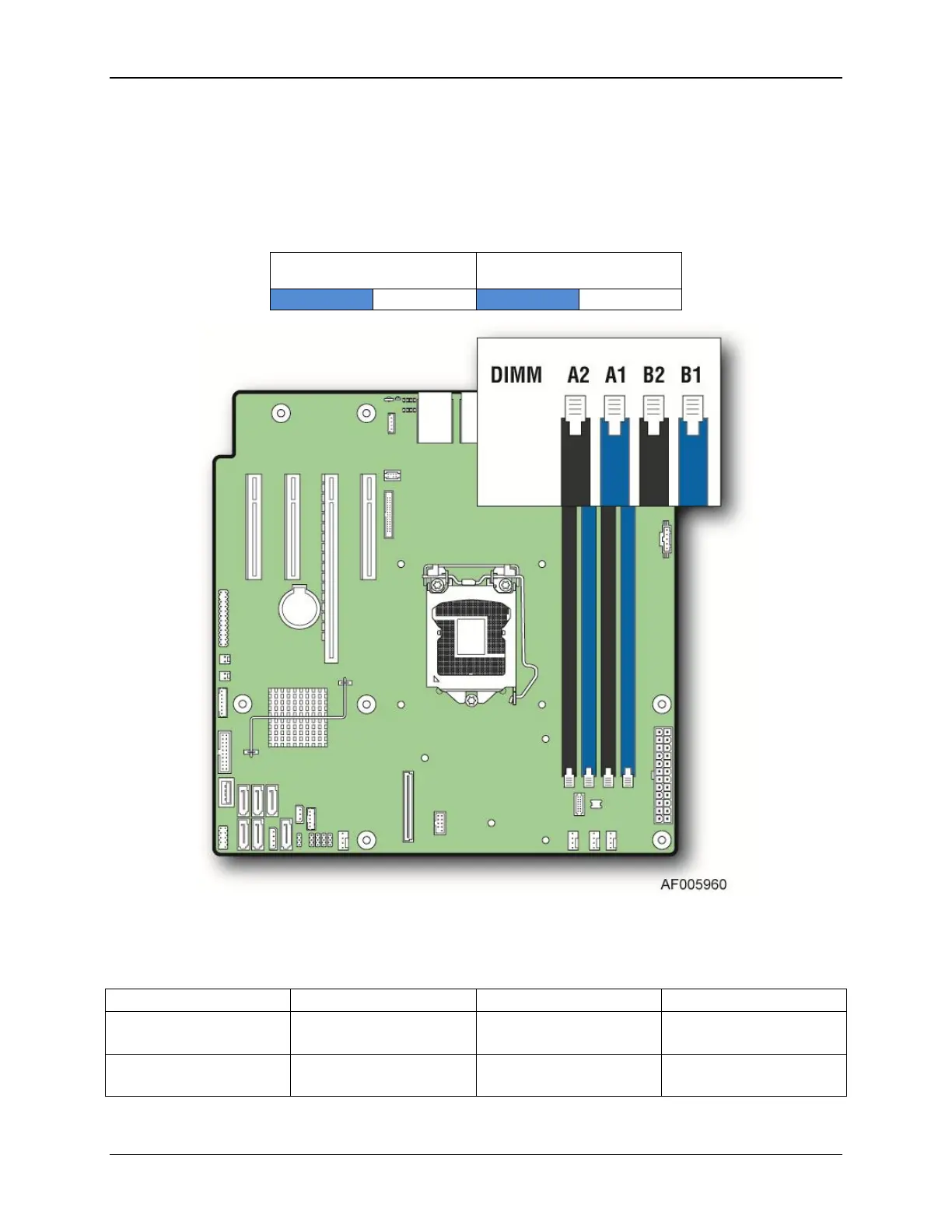

Figure 10. Intel
®
Server Board S1200V3RP DIMM Slot Layout
Table 4. Intel
®
Server Board S1200V3RP DIMM Maximum Configuration
Max Memory Possible
1Gb DRAM Technology
2Gb DRAM Technology
4Gb DRAM Technology
Single Rank UDIMM
4GB
(4 x 1GB DIMMs)
8GB
(4 x 2GB DIMMs)
16GB
(4 x 4GB DIMMs)
Dual Rank UDIMMs
8GB
(4 x 2GB DIMMs)
16GB
(4x 4GB DIMMs)
32GB
(4 x 8GB DIMMs)
