Platform Management Functional Overview Intel® Server Board S1200V3RP TPS
Revision 1.2
50
2. For fan speed control in 3rd party chassis
3. Temperature margin from throttling threshold
4. Absolute temperature
5. PECI value or margin value
6. On-die sensor
7. On-board sensor
8. Virtual sensor
9. Available only when PSU has PMBus*
The following illustration provides a simple model showing the fan speed control structure that
implements the resulting fan speeds.

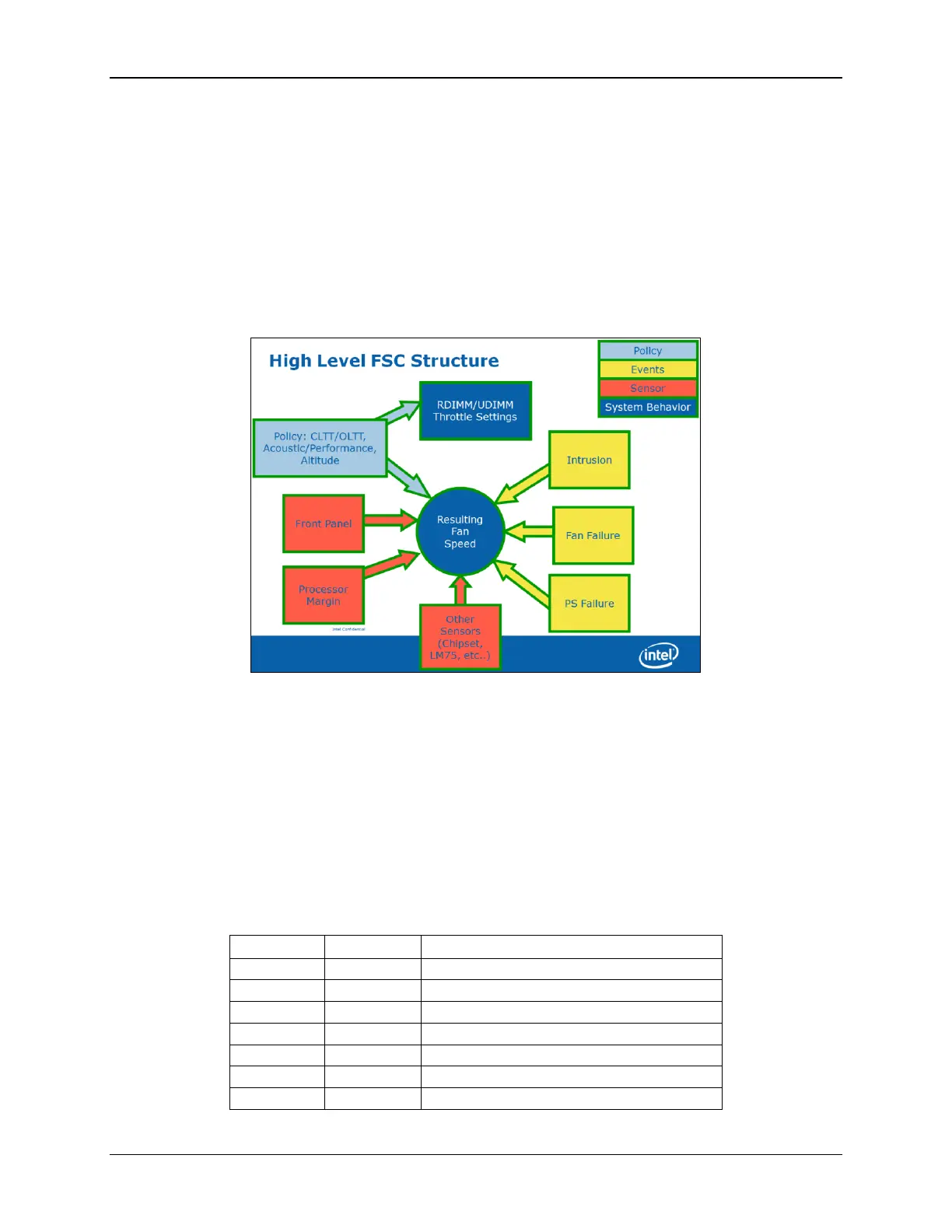

Figure 15. Fan Speed Control Process
6.10.3 Fan Profiles
The server system supports multiple fan control profiles to support acoustic targets and
American Society of Heating, Refrigerating and Air Conditioning Engineers (ASHRAE)
compliance. The BIOS Setup utility can be used to choose between meeting the target acoustic
level or enhanced system performance. This is accomplished through fan profiles.
The BMC supports eight fan profiles, numbered from 0 to 7.
Table 18. Fan Profiles
Type
Profile
Details
OLTT
0
Acoustic, 300M altitude
OLTT
1
Performance, 300M altitude
OLTT
2
Acoustic, 900M altitude
OLTT
3
Performance, 900M altitude
OLTT
4
Acoustic, 1500M altitude
OLTT
5
Performance, 1500M altitude
OLTT
6
Acoustic, 3000M altitude
