Rack Mount Kit Install Instructions (optional)
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 85

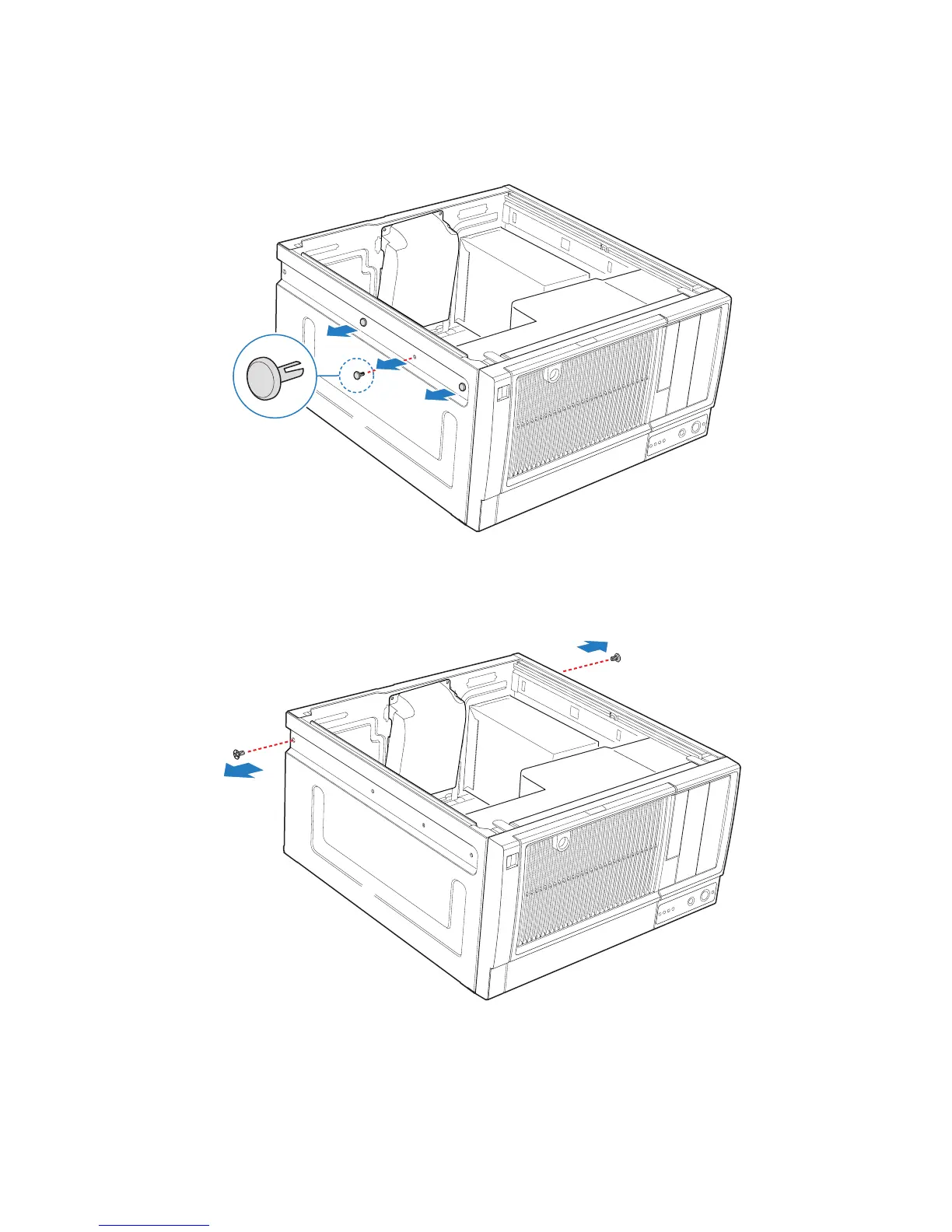

8. Remove the three plastic plugs from left side of chassis.
Figure 107. Removing Plastic Plugs (DP/WS/BRP configuration shown)
9. Remove two screws from left and right sides of chassis.
Figure 108. Removing Rear Screws (DP/WS/BRP configuration shown)
AF000286
AF000287
