Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 55
7. Remove two internal screws (see letter “A” in the following figure) securing hot swap
power supply cage to chassis.

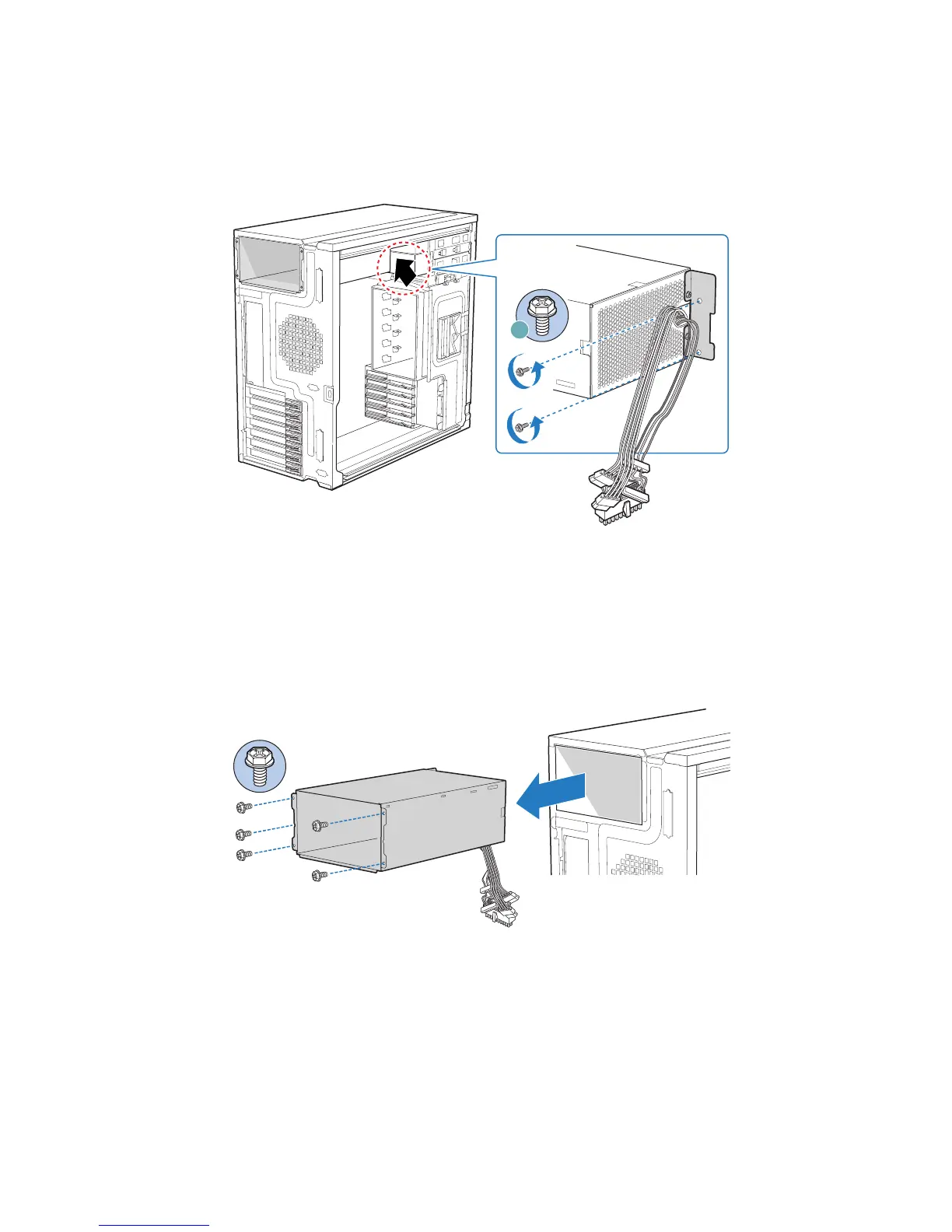

Figure 69. Detaching Hot Swap Power Supply Cage from Inside of Chassis
8. Remove five external screws securing back of power supply cage to chassis. Slide the
power supply cage out of the chassis.
Note: You may have to work the power cables through slot sopenings with your free hand as you
remove the power supply cage from the chassis.
Figure 70. Detaching Hot Swap Power Supply Cage from Rear of Chassis
TP01761
A
TP01762
