Hardware Installations and Upgrades
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide 21
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the left side cover. For instructions, see “Removing the Left Side Cover”.
4. Remove the front bezel assembly. For instructions, see “Removing the Front Bezel
Assembly”.
5. Loosen thumb screw and remove the drive cage EMI shield (see letter “A” in the
following figure).

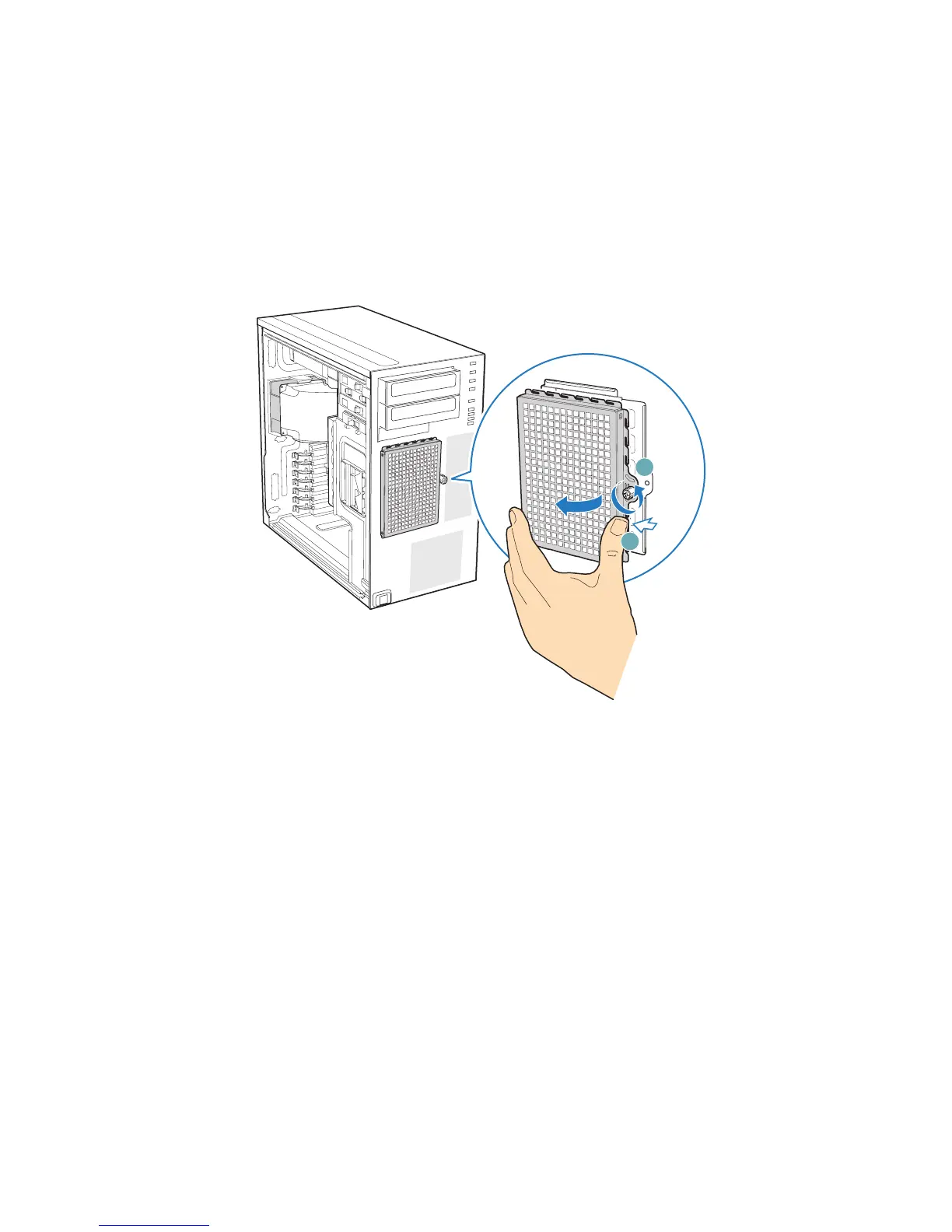

Figure 18. Removing Drive Cage EMI Shield from Fixed Drive Cage (DP/WS/BRP
configuration shown)
6. Disconnect cables from any installed fixed hard drives. If necessary, remove hard
drives from fixed hard drive cage. For instructions on removing fixed hard drives, see
“Removing a Fixed Hard Drive”.
TP01869
A
B
To Next Page
