4. (For all server boards on DP/WS/BRP configuration EXCEPT Intel® Server Board
S3000AH) Remove the fan duct /system fan assembly.

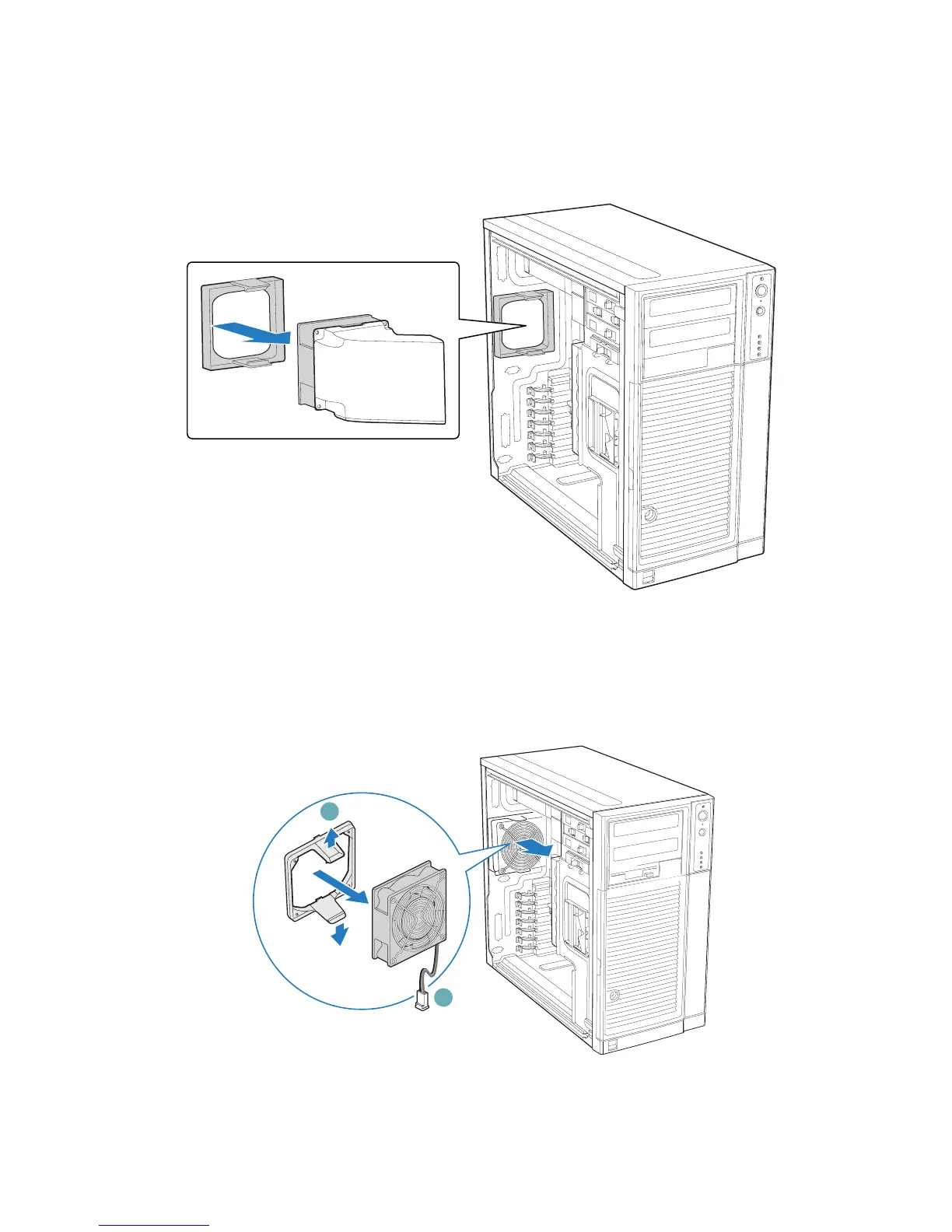

Figure 56. Removing Fan Duct / System Fan Assembly (DP/WS/BRP configuration)
5. (For UP configuration and Intel® Server Board S3000AH on DP/BRP configuration)
Disconnect the fan power cable from the server board (see letter “A” in the following
figure). Remove the system fan from its snap-in bracket by pressing the two bracket
tabs outward (see letter “B”).
Figure 57. Removing System Fan from Chassis (UP Configuration)
AF000284
TP00884
B
A
