Rack Mount Kit Install Instructions (optional)
86 Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide

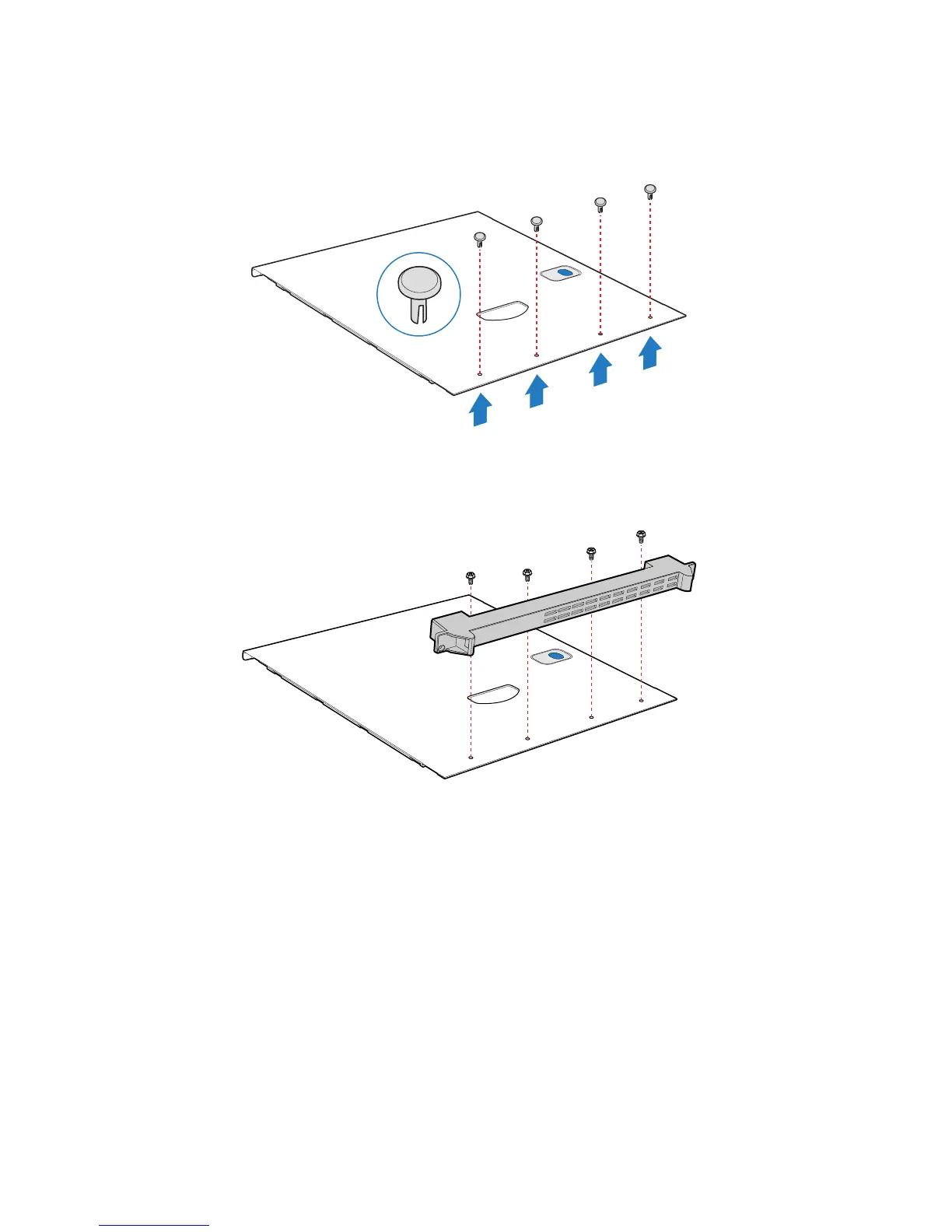

10. Remove four plastic plugs from top side cover.
Figure 109. Removing Plastic Plugs from Top Side Cover
11. Install rack handle on left side cover using four 6-32 screws.
Figure 110. Installing Rack Handle on Left Side Cover
TP02004
TP01053
