Hot Swap Drive Cage Upgrade Install Instructions (optional)
76 Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide
9. Close the drive bay access door.

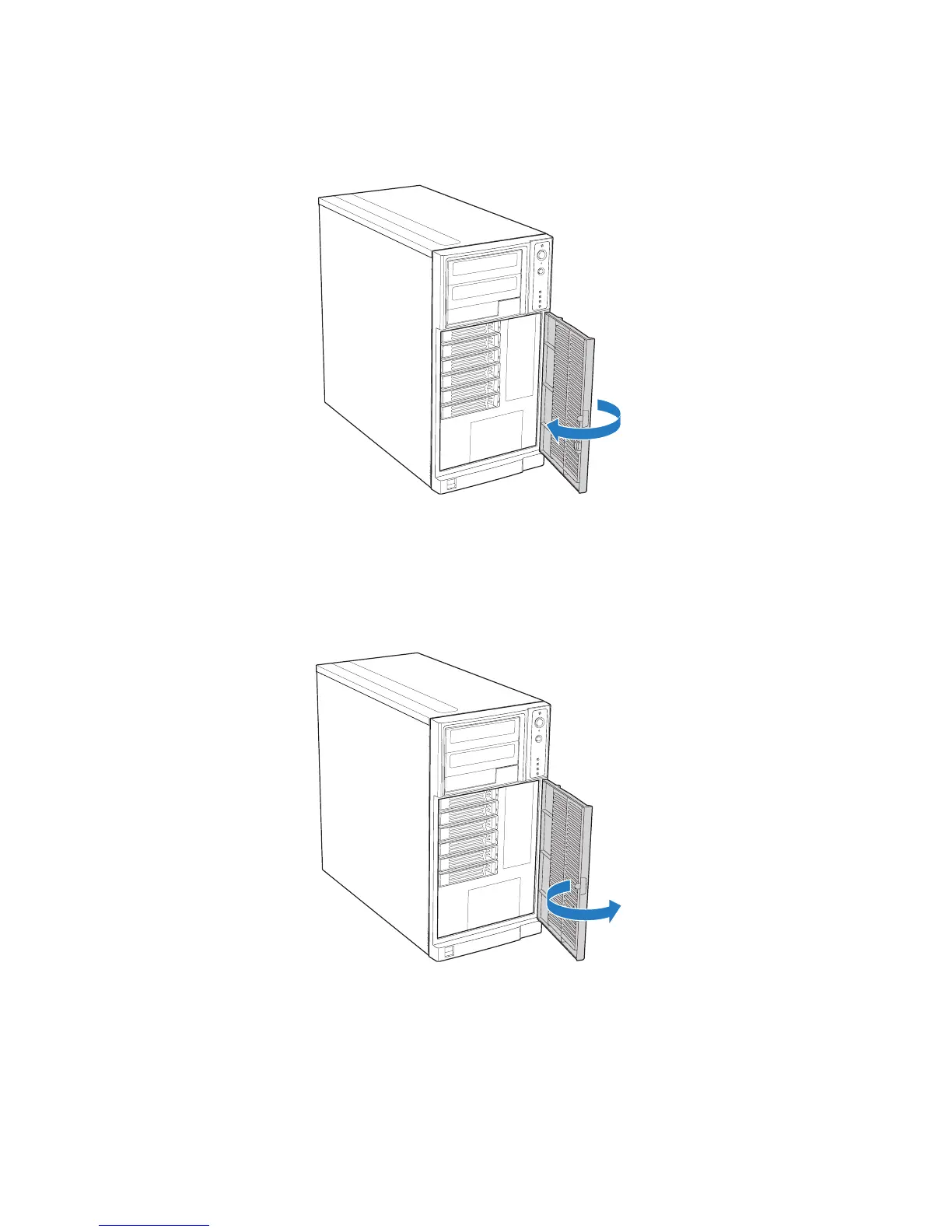

Figure 95. Closing Drive Bay Access Door
Removing a Hot-swap Hard Drive
1. Open the drive bay access door.
Figure 96. Opening Drive Bay Access Door
AF000314
AF000311
