Hot Swap Drive Cage Upgrade Install Instructions (optional)
66 Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide
13. Align the fan bracket with the three pegs on the drive cage (see letter “A” in the
following figure) and slide the fan bracket into position. Replace the two thumb
screws (see letter “B”).
Caution: The backplane may have slipped once the thumb screws were removed.
Ensure that the backplane is positioned correctly before re-tightening the
thumb screws.

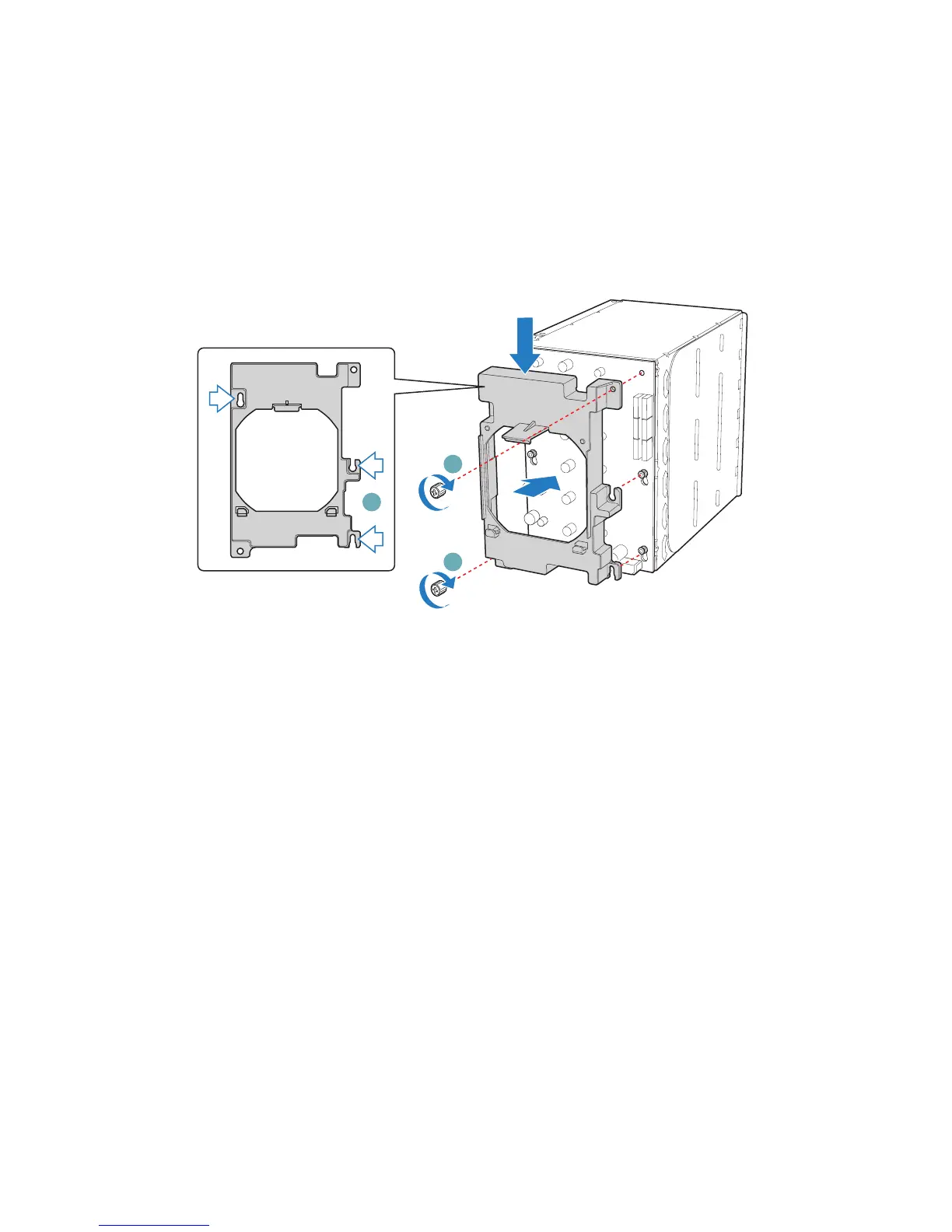

Figure 83. Attaching Fan Bracket to Hot Swap Drive Cage (SAS/SATA drive
cage illustrated)
TP01061
B
B
A
