Installing the Front Bezel Assembly
1. Line up the three clips on the right side of the front bezel assembly with the
corresponding slots on the right side of the chassis (see letter “A” in the following
figure). Engage the clips with the slots (see letter “B”). Rotate the left side of the front
bezel assembly towards the chassis (see letter “C”). Snap the two bezel tabs into the
corresponding recesses at the left edge of the chassis front panel (see letter “D”).

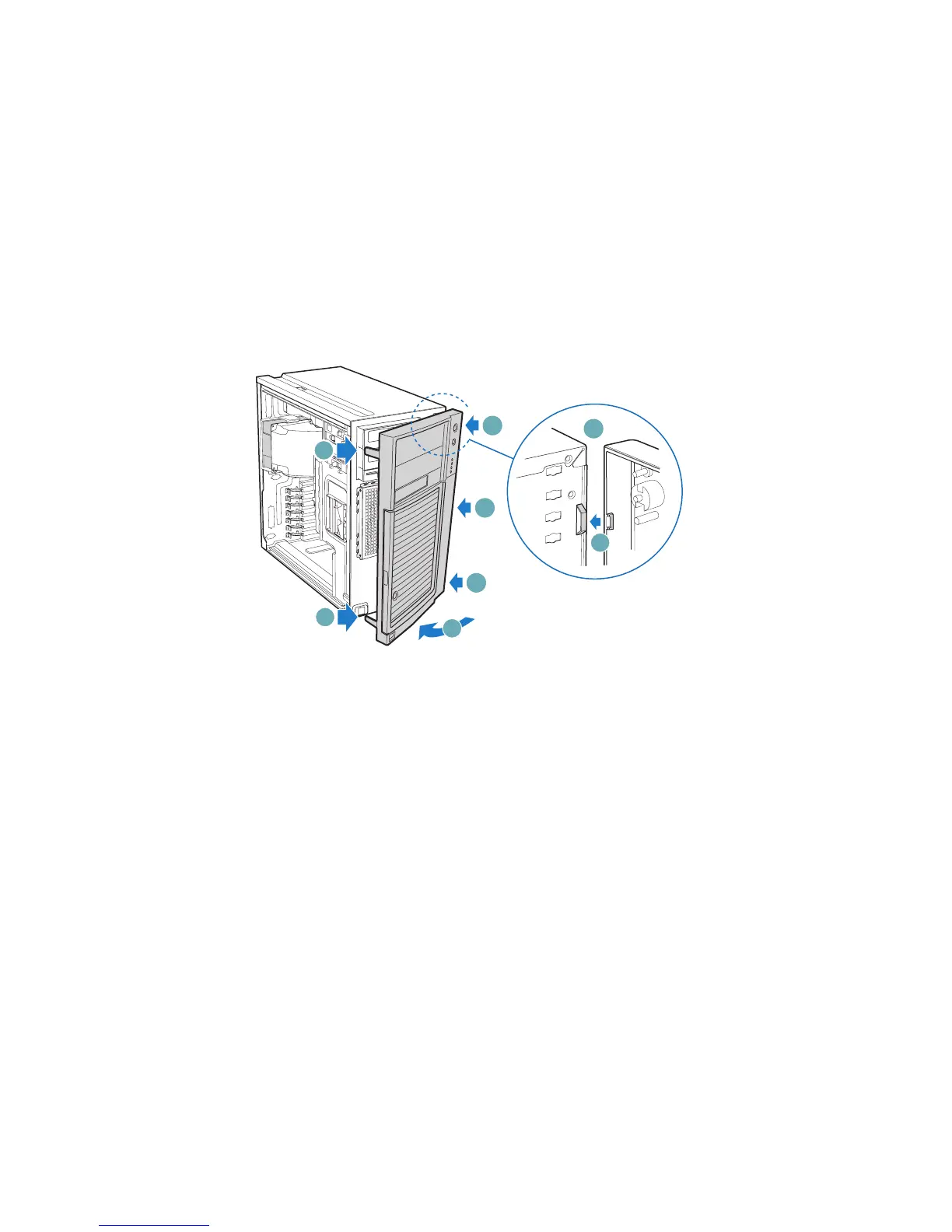

Figure 15. Installing the Front Bezel Assembly (DP/WS/BRP configuration shown)
2. Reinstall the left side cover. For instructions, see “Installing the Left Side Cover”.
3. Reconnect all peripheral devices and the AC power cable. Power up the server.
