Hardware Installations and Upgrades
34 Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide
Figure 36. Preparing Fixed Hard Drive for Removal
7. Slide the hard drive out of the fixed hard drive cage and place on an anti-static
surface. If replacing the hard drive, see “Installing a Fixed Hard Drive” for
instructions.

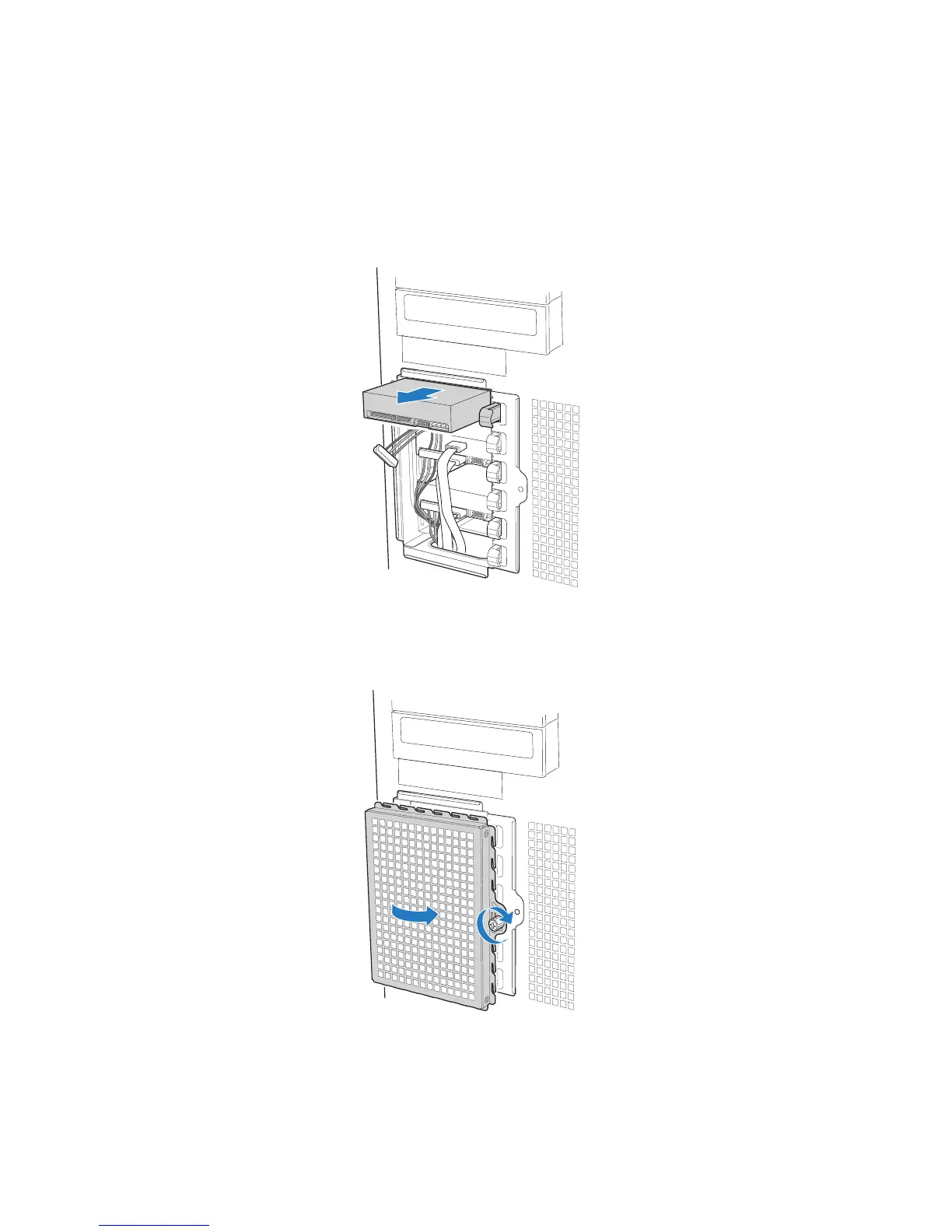

Figure 37. Removing Fixed Hard Drive from Drive Bay
8. Re-attach the drive cage EMI shield to the chassis and tighten the thumb screw.
Figure 38. Re-installing Drive Cage EMI Shield
AF000431
AF000315
