6. Insert CD-ROM or DVD-ROM drive into the 5.25-in device drive bay (see letter “C”
in the following figure). Line up holes in CD-ROM drive with holes in chassis (see
letter “D”). Move latch to the “lock” position (see letter “E”). Connect power (P3 or
P4 connector from the power supply) and data cables to the rear of the CD-ROM or
DVD-ROM drive (see letter “F”).

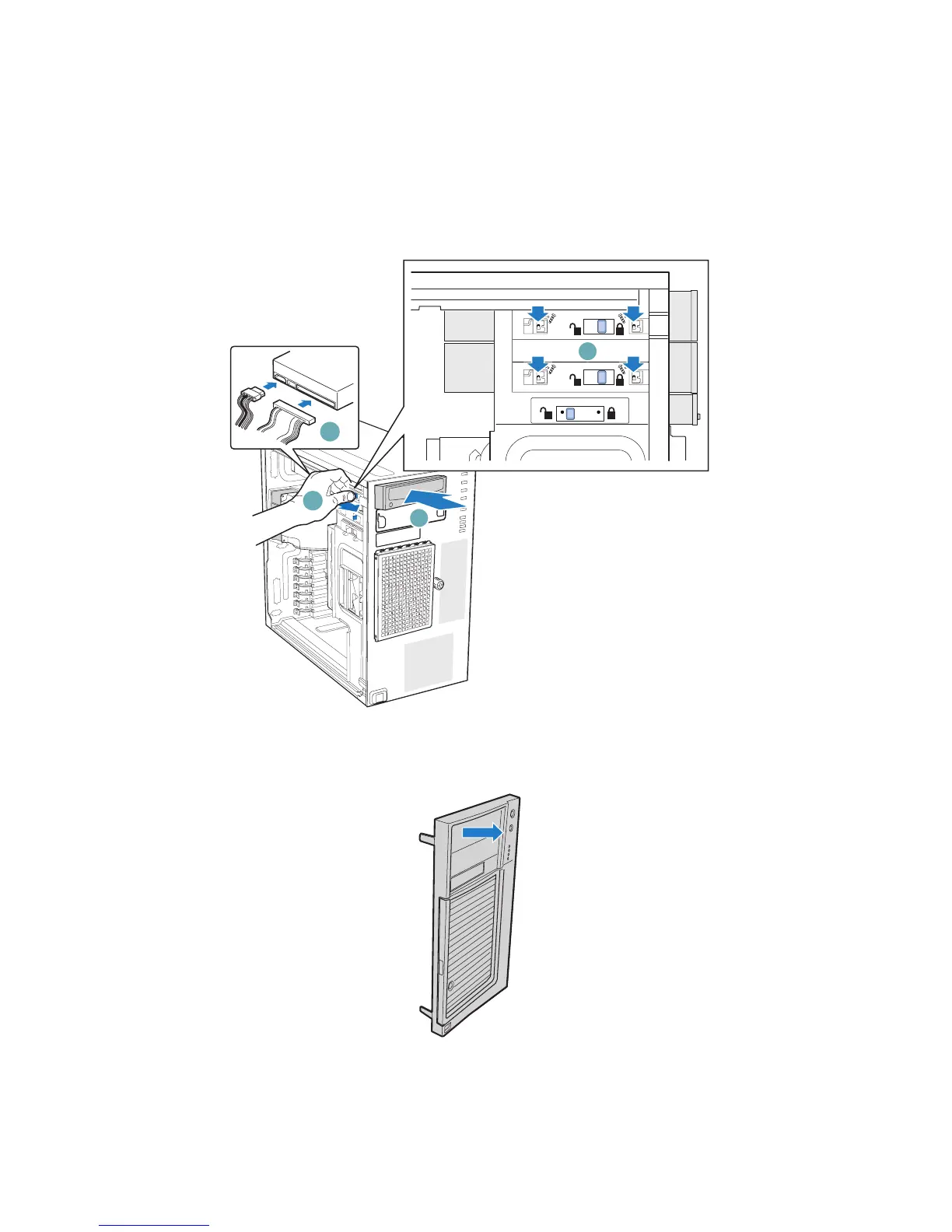

Figure 40. Installing CD-ROM or DVD-ROM Drive (DP/WS/BRP configuration shown)
7. If necessary, remove the filler panel from the front bezel assembly.
C
F
D
TP01064
E
TP01723
