Advisor Advanced ATSx000A(-IP) Installation and Programming Manual 5
Keypads and readers

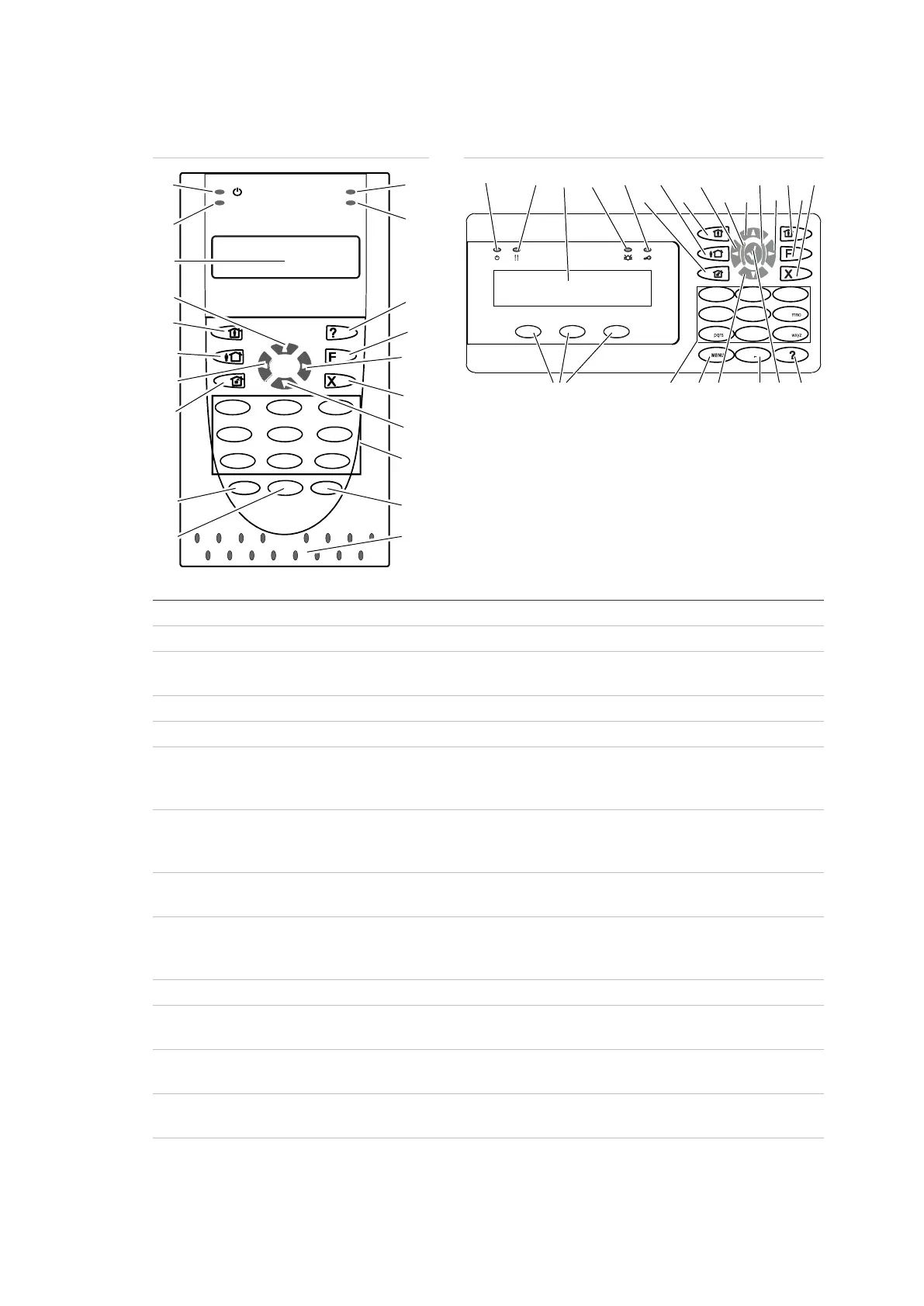

Figure 8: ATS111xA keypad
Figure 9: ATS1135 keypad
(1)
AC mains LED
Green on: AC mains supply on
(2)
Access LED
Blue flashes: card read
(3)
Fault LED
Yellow on: system fault active
Yellow flashing: general alert (EN 50131)
(4)
Alarm LED
Red on: alarm condition active
(5)
LCD display
Displays messages
(6)
 / Up
Scroll up in the menus
Change value
Delete
(7)
? / Help
Show help
Enable/disable word library
Scroll text (ATS113x only)
(8)
Partset
Part set an area
Scroll text (ATS111x only)
(9)
F / Function
Show active zones / faults
Function key modifier
Scroll text (ATS113x only)
(10)
On
Full set an area
(11)
 / Right
Enter the selected menu
Move cursor right
(12)
 / Left
Return to the previous menu
Move cursor left
(13)
X / Clear
Exit the current user function
Volume control modifier
(14)
Off
Unset an area
1
8
9
16


!!
3
21
4 6
5
7
98
0
*
Menu
#
Enter
