18BAppendix C: KTD-405 keypad
TruVision DVR 11 and DVR 11c User Manual 129
To set the keypad in zone mode:
1. Log into the keypad using the Admin password. Hold down the Enter button
( ) until a beep sounds and then enter the following code: 1 4 7 6. Push
the seq button to confirm.

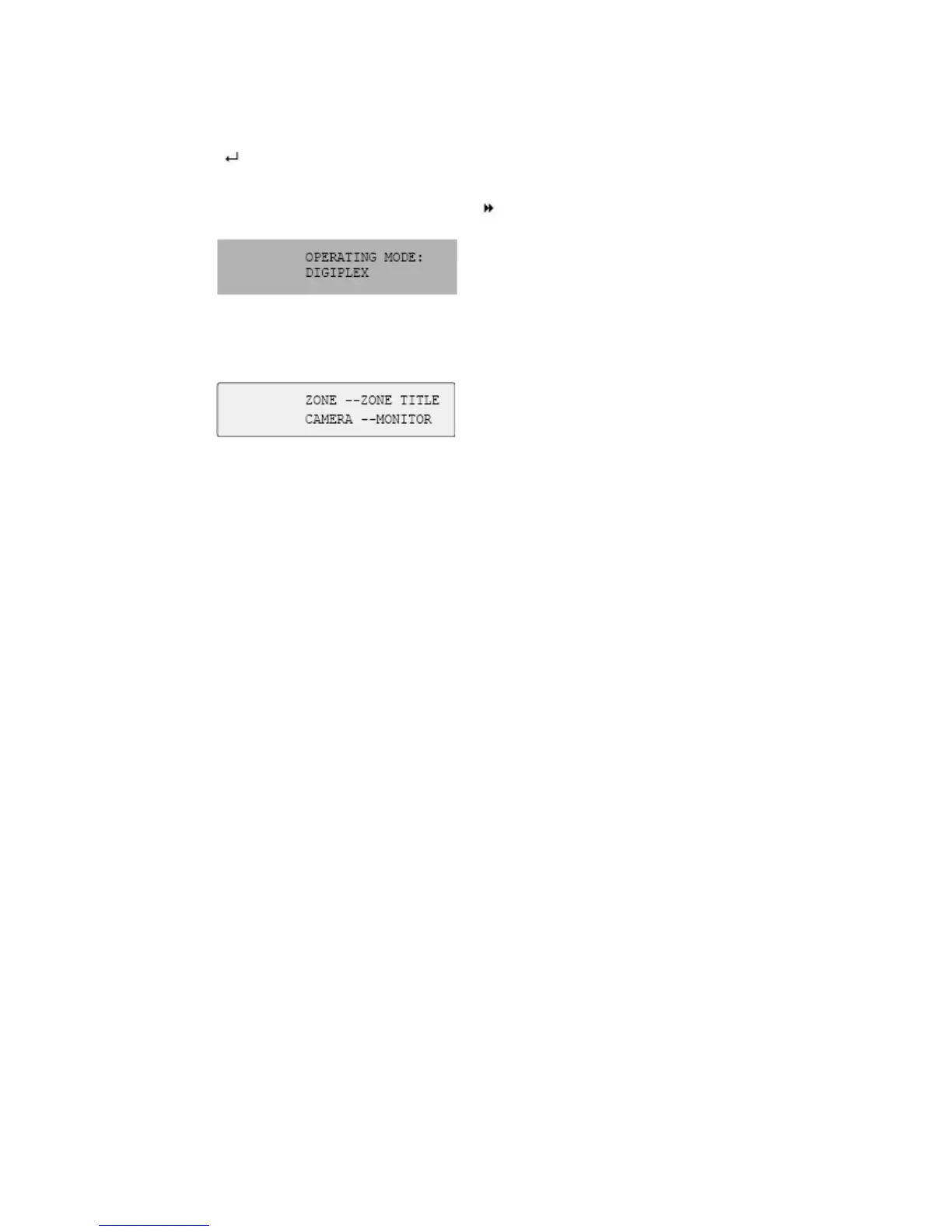

2. Scroll through the menus with the button until this menu appears:
3. Change Operating Mode to Zone by moving the joystick down.
4. Quit the menu by pressing the seq button. The display will show, for example:
5. To connect it to the DVR, press the zone button and enter the ID number of
the DVR. The default value is “1”.
6. To configure the DVR zone ID number, at the DVR enter the System View
window by selecting System in the main menu. Under Zone ID, enter the
zone ID value. The default value is “1”.
Note: The zone ID value must be identical for the DVR and keypad.
The DVR is now connected to the KTD-405 keypad.
To configure the DVR device address:
1. Click the Display Mode Settings icon in the menu toolbar and select
Monitor.
2. Under the Device address edit box enter a numeric value. The default
address for the keypad is “255”. Click Apply
DVR and keypad functions
The KTD-405U acts as a DVR control keypad when connected to the DVR. The
keypad mimics many of the functions available from the front panel of the DVR.
Unavailable DVR functions
The following TVR 11 and TVR 11c functions are unavailable when using the
keypad to control the DVR:
Export video
Eject CD/DVD
Preset and shadow tour
Select motion detection or tampering zones
Archive records
