Appendix C: KTD-405 keypad
128 TruVision DVR 11 and DVR 11c User Manual

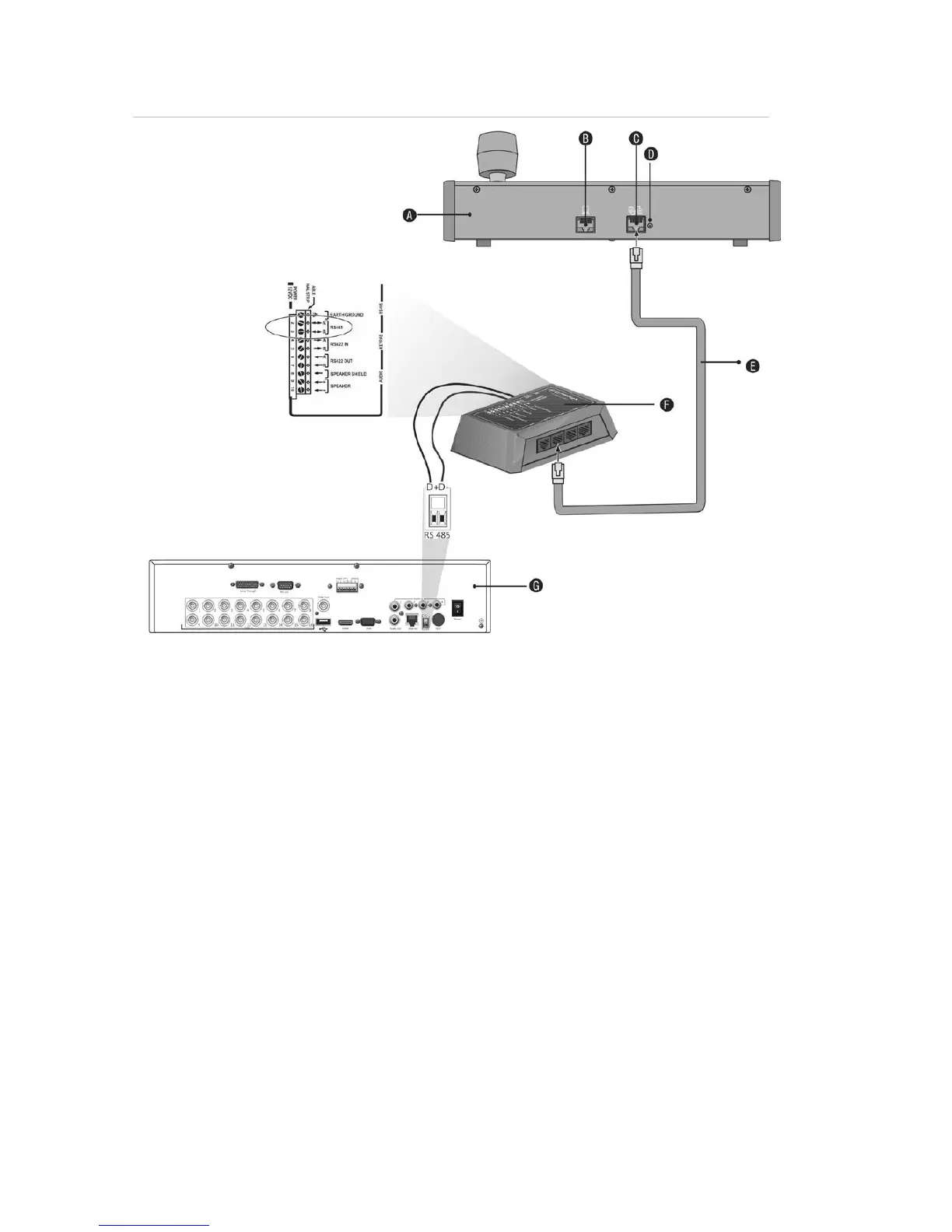

Figure 37: Keypad and DVR connections
A. KTD-405 keypad
B. RS-232 programming port
C. RS-485 and RS-422 in/out
D. RS-485 termination switch
E. RJ45 cable control (use the cable provided
with the equipment)
F. I/O box
G. DVR back panel (TVR 11 shown)
See “Connecting a KTD-405 keypad and dome camera to the on page 12” for
information on how to connect both a keypad and dome camera to the DVR.
Setting up the keypad to work with the
TVR 11
The keypad must be in zone mode to connect correctly with the DVR.
Further information on connecting and programming the KTD-405 keypad can be
found in the user manual.
