Appendix C: KTD-405 keypad
130 TruVision DVR 11 and DVR 11c User Manual
Capture video
If these functions are required, it is recommended to use a mouse in conjunction
with the keypad as all DVR functions will then be available.
Unavailable keypad functions
The following keypad buttons are unavailable when using the keypad to control
the DVR:

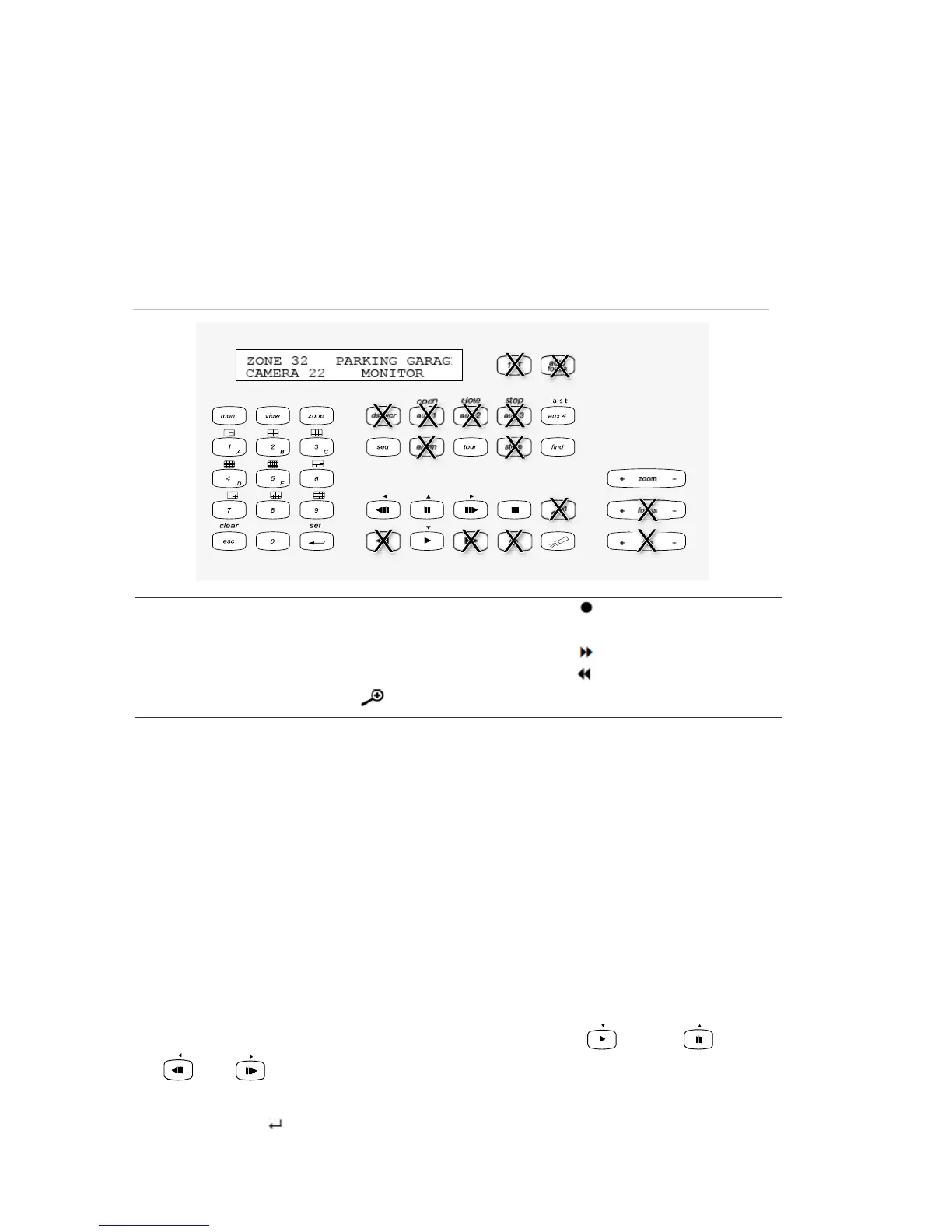

Figure 38: Keypad buttons unavailable
Autofocus
Alarm
Iris +/-
Focus +/-
(Magnification)
(Record mode)
Store
Fast forward
Fast backward
Operating the keypad
You can navigate the DVR menus using the keypad buttons and joystick.
However, not all maneuvers are available using the joystick.
See Table 22 on page 131 for the description of the DVR keypad mapping when
using the KTD-405 keypad series. See Figure 38 above for a list of the keypad
functions that are unavailable when connected to the DVR.
Example 1: To enter your password in the login window using the keypad
1. In live view mode, press esc to activate the Login window.
2. Press and hold esc and then press the arrow buttons ( down, up,
left, right) to move the cursor to the Password edit box. Once in the
password box, release esc.
3. Press Enter ( ) to activate the soft keyboard.
