TruVision DVR 11 and DVR 11c User Manual 45
Chapter 7
HDD management
Initializing HDDs
The in-built HDD must be initialized before it can be used. You can also re-
initialize the HDD. However, all data on the HDD will be destroyed.
To initialize a HDD:
1. Click the System Settings icon in the menu toolbar and then click Hard Disk
to display its window.
2. Select the HDD to be initialized.
3. Click the Initialize button to begin initialization.
After the HDD has been initialized, the status of the HDD changes from
Abnormal to Normal.

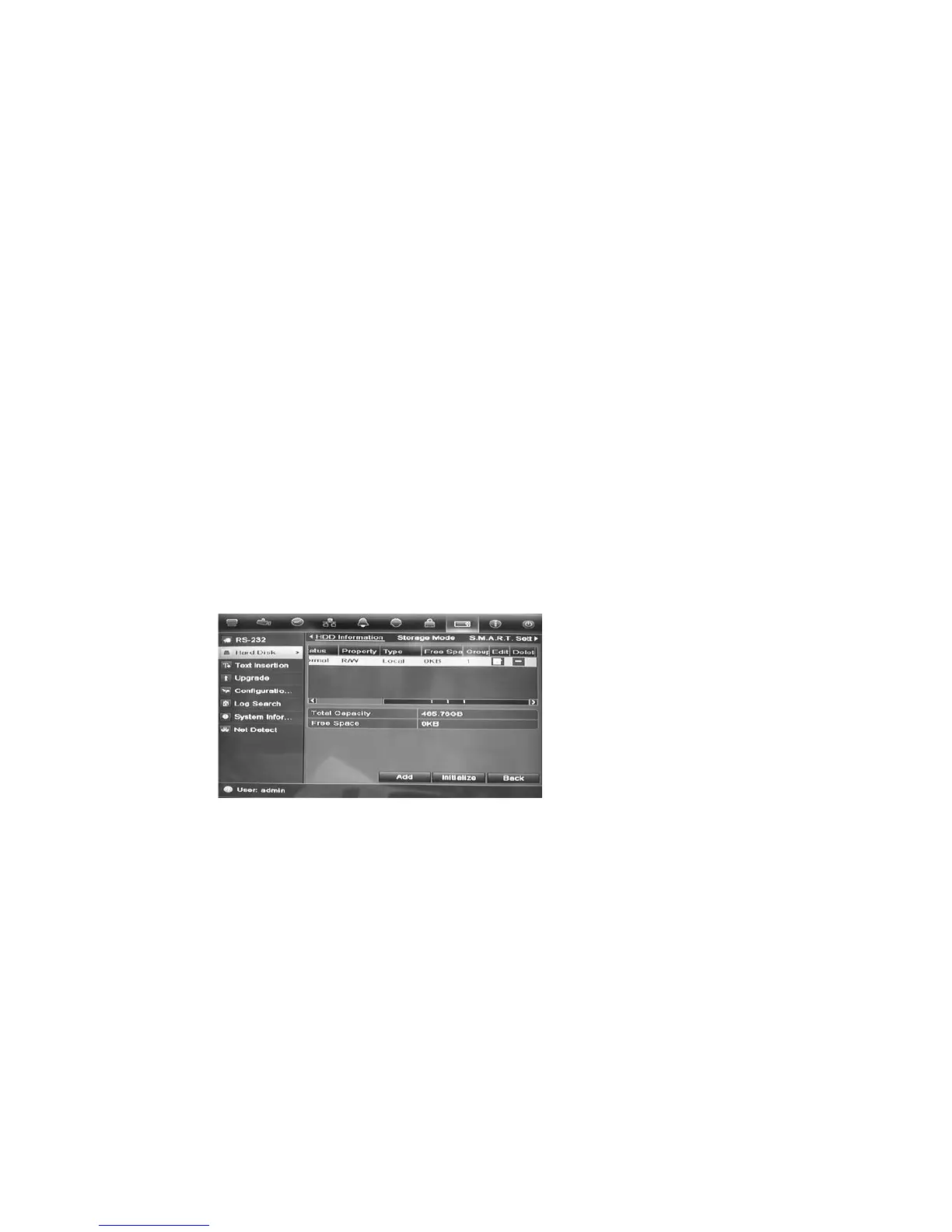

Setting the HDD quota
You can allocate on a HDD the maximum permitted storage and snapshot picture
capacities from each camera.
1. Click the System Settings icon in the menu toolbar and then click Hard Disk.
2. Click the Storage mode tab.
3. Under the Mode option, select Quota.
To Next Page
